Keyscan Inc.
–
Techn
ical Guide (PC10
9x - 04
.1
5)
48

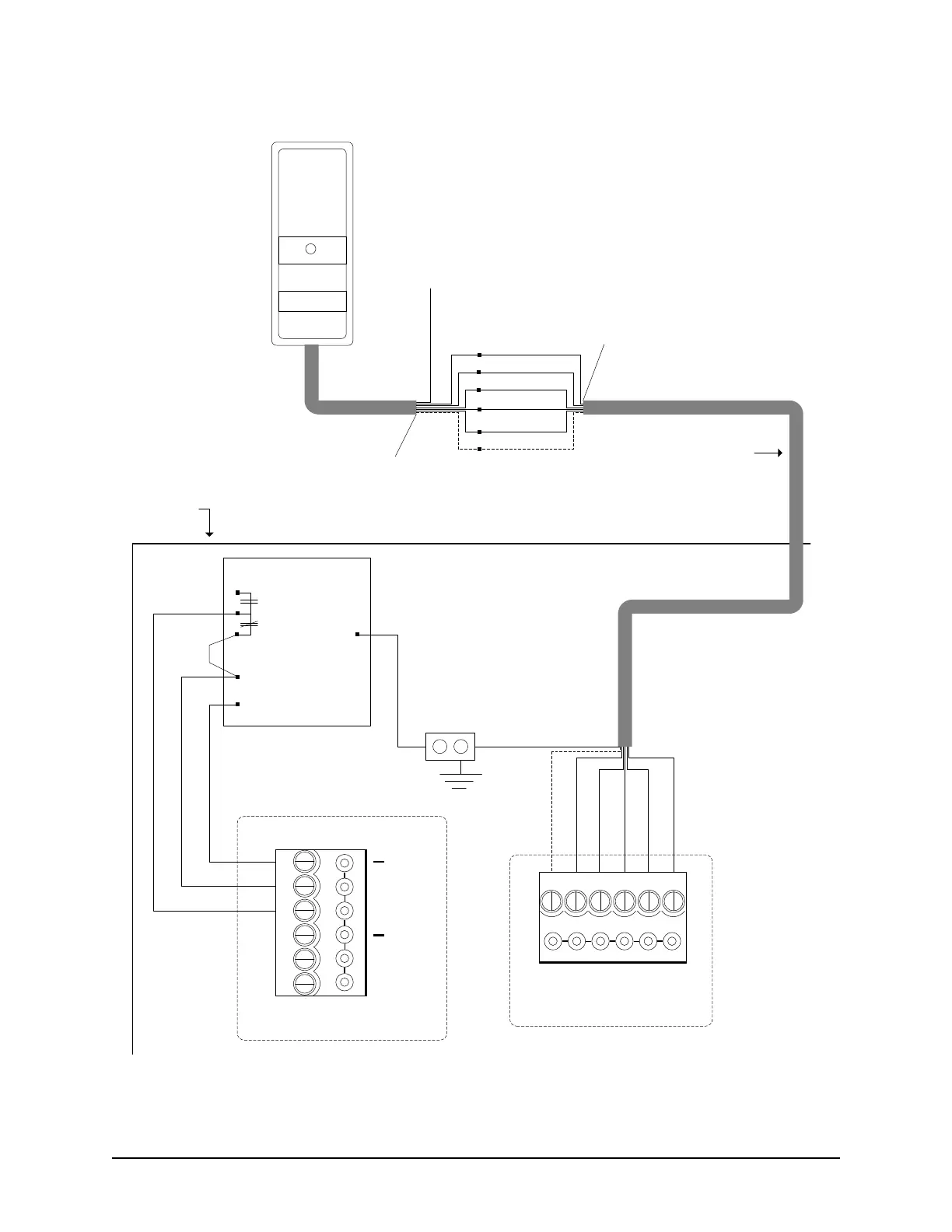

Figure
34
–
Termin
ate Reader Wiri
ng
Shield not
connected.
Isolate with
electrical tape.
3 pairs shielded
22 AWG or 18 AWG
500 ft (152.4 m) maximum
Reader terminal on control board
External DC
Supply
Red (+ VDC)
Black (-)
Proximity
Reader
Shield
Ground
Lug
LED
D1 (White)
D0 (Green)
PWR (Red)
GND (Black)
Enclosure
KEYSCAN
Cable in through knockout.
READER PWR
ACU PWR
+
Power terminal on control board
Blue used for pre-alert
otherwise isolate and tape
back.
Orange not
used. Isolate
and tape back.
Shield not
connected.
Isolate with
electrical tape.
LED (Brown)
D1 (White)
D0 (Green)
PWR (Red)
GND (Black)
Pre-alert (Blue)
Orange
FAIL
+
FAIL
EGND
AC Fail
Pre-alert (Blue)
DC Output 12V
-
+
N.C.
N.O.
Energized when AC
present.
LED
D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
KI-00138E-07-11
47
49
Table of Contents
Default Chapter
4
Table of Contents
4
List of Figures
7
List of Tables
10
Foreword
11
Approved Standards
11
Product Listings
11
About this Guide
11
Installation Requirements
12
Power
12
Electrical Precautions
12
Tools
12
Cables
13
Grounding
13
Table 1 - Cable Requirements
13
Figure 1 - Grounding Access Control Units and Cables with Cims
14
Mount the Enclosure & Components
15
UL STD 294, CSA STD C22.2 (No. 205), CE, FCC 15 Subpart B
15
Mounting the Metal Enclosure
16
Figure 2 - Mounting the Metal Enclosure
16
Figure 3 - Enclosure Knockout & Mounting Hole Locations/Dimensions
17
Mounting the Pc109X Control Board to Metal Standoffs
18
Figure 4 - Mount and Fasten Pc109X Control Board to 3/8" Male/Female Standoffs
19
Mounting Power Supplies
20
Table 2 - Battery Duration Times
20
Figure 5 - Plastic Stand off
21
Figure 6 - Mounting Power Supplies
21
Grounding Communication Cable Shield
22
Control Board - Mounting Locations
22
Figure 7 - CA250 with Board Mounting Positions
23
Figure 8 - CA4500 with Board Mounting Positions
23
Figure 9 - CA8500 with Board Mounting Positions
24
Figure 10 - EC1500 with Board Mounting Positions
24
Connect Enclosure Tamper Switch to TB3
25
Figure 11 - EC2500 with Board Mounting Positions
25
Figure 12 - Enclosure Tamper Switch Connected to TB3 Terminal
25
Connect Enclosure Ground Strap
26
Figure 13 - Enclosure Ground Strap Connection
26
Figure 14 - Securing the Enclosure Cover
26
Typical Door Layout and Hardware
27
Figure 15 - Typical Door Layout
27
Door Lock Hardware
28
Figure 16 - Typical Door Strike Connection
28
Figure 17 - Typical Magnetic Lock Connection
28
Door Contacts, Exit Buttons, Auxiliary Inputs
29
Figure 18 - Door Contacts, Exit Buttons, Pirs, & Auxiliary Inputs
29
Readers
30
Figure 19 - Typical Door Reader Connection
30
Terminate Wiring at the ACU
31
OCB-8 Relay Board
31
Terminate Lock Wiring
31
Table 3 - OCB-8 Specifications
31
Figure 20 - Lock State - Fail Safe Device
33
Figure 21 - Lock State - Fail Secure Device
33
Figure 22 - Terminate Lock Wiring CA250B
34
Figure 23 - Terminate Lock Wiring CA4500B
35
Figure 24 - Terminate Lock Wiring CA8500B
36
Terminate Input Wiring
37
Figure 25 - Terminate Input Wiring - Door Inputs (Contacts)
38
Figure 26 - Terminate Input Wiring - RTE Push Button
39
Figure 27 - Terminate Input Wiring - RTE PIR Motion Sensor
40
Figure 28 - Terminate Input Wiring RTE - PIR & Push Button
41
Figure 29 - Terminate Input Wiring - AI/SI Inputs
42
Terminate Elevator Floor Wiring
43
Table 4 - OCB-8 to EC1500B Ribbon Cable Connections
43
Table 5 - OCB-8 to EC2500B Ribbon Cable Connections
43
Figure 30 - Terminate Floor Wiring EC1500B
44
Figure 31 - Terminate Floor Wiring EC2500B
45
Figure 32 - Terminate Floor Input Wiring EC1500B
46
Terminate Reader Wiring at ACU
47
Figure 33 - Terminate Floor Input Wiring EC2500B
47
Figure 34 - Terminate Reader Wiring
48
Terminate Auxiliary Outputs with Hardware/Alarms
49
Figure 35 - Terminate Auxiliary Outputs CA250B
49
Figure 36 - Terminate Auxiliary Outputs CA4500B
50
Figure 37 - Terminate Auxiliary Output CA8500B
51
S2 DIP Switches
52
S2 DIP Switch Functions
52
Figure 38 - S2 DIP Switch Legend
52
S2 Dip Switch Settings
54
Table 6 - S2 DIP Switch Settings
54
Important - Circuit Board Function Revisions
56
Figure 39 - Location of S2 DIP Switches
56
S1 - System Reset / S3 - Restore Factory Defaults
57
S1 - System Reset
57
S3 - Restore Factory Defaults (Clear Memory)
57
Figure 40 - S3 Restore Default Settings (Clear Memory) & S1 System Reset Locations
58
Single ACU Communication
59
Multiple Building Communication on a WAN
59
Keyscan RS-232 Data Cable
59
Figure 41 - RS-232 Data Cable Connections
60
Figure 42 - Communication - Direct Serial
61
Figure 43 - Single ACU Communication - USB Adaptor
62
Figure 44 - Communication - NETCOM2P or NETCOM6P/ACU
63
Figure 45 - Communication - NETCOM2 or NETCOM6
64
CIM Communication
65
CIM Conventions
65
Figure 46 - CIM Overview
65
CIM Module Requirements
66
CIM Specifications
66
BPS/CAN Bus Distance Chart
67
Table 7 - CIM Specifications
67
Table 8 - BPS/CANBUS Distance Chart
67
CIM Jumper Settings
68
Figure 47 - CIM Jumper Locations
68
Table 9 - CIM Global Master Jumper J3
68
Table 10 - CIM 0 - Jumper J4
68
Table 11 - CIM CAN Bus Termination Jumpers J5 - J8
69
Table 12 - CIM Serial Bit Rate Jumpers J9 - J11
69
CIM Installation Guidelines
70
CIM Connection Diagrams
70
Figure 48 - CIM to ACU Connections
71
Figure 49 - CIM to CIM CANBUS Connections
72
Serial Communication
73
Figure 50 - PC Serial Connection with Multiple Cims/Acus
73
Network Communication Via Optional NETCOM2P or NETCOM6P (Encrypted)
74
Figure 51 - Network Connection with Multiple Cims/Acu
75
Network Communication Via Optional NETCOM2 or NETCOM6 (Encrypted)
76
Figure 52 - Network Connection with NETCOM2 or NETCOM6 with Multiple Cims/Acus
77
CIM Diagnostic Leds B3 - B0
78
Table 13 - CIM Diagnostic LED Codes
78
Figure 53 - CIM Diagnostic Leds - B3 - B0
79
Power-Up & Test Voltages
80
Power Supply Specifications
80
DPS-15 Dual Power Supply - Current Calculation
80
Table 14 - ACU Supply - Current Calculation Table
81
Table 15 - AUX RDR Supply - Current Calculation Table
81
System Power-Up
82
Figure 54 - Power Supply Wiring
83
Control Board Voltage Test Points
84
Table 16 - Control Board Test Points - Voltages
84
Figure 55 - Control Board Test Points - Voltages
85
Test Points - Communication Terminals
86
Figure 56 - Control Board Communication Test Points
86
Table 17 - Communication Voltage Test Points
86
Communication Diagnostics
87
Communication Status Leds
87
Table 18 - Communication Status Leds
87
System Status LED
89
Figure 57 - Communication Leds - CA & EC Control Boards
89
Table 19 - System Status LED
89
Card Diagnostics - LED Wiegand Bit Counters
90
Figure 58 - Location of System Status LED
90
Figure 59 - Location of Wiegand Bit Counter Leds
90
Appendix A - Keyscan & HID Readers
91
Power Specifications
91
Table 20 - Keyscan & HID Reader Power Specifications
91
Figure 60 - Keyscan K-PROX2 (125 Khz)
94
Figure 61 - Keyscan K-VAN Proximity Reader (125 Khz)
95
Figure 62 - Keyscan K-KPR Keypad / Proximity Reader (125 Khz)
96
Figure 63 - Keyscan K-SMART Reader
97
Figure 64 - HID-5395 Wiring
98
Figure 65 - HID 5365 / 6005 Wiring
99
Figure 66 - HID 5355 Wiring
100
Figure 67 - HID 5375 Wiring
101
Figure 68 - HID 5355KP Wiring
102
Figure 69 - HID Iclass KEYR10
103
Figure 70 - HID Iclass KEYR40
104
Figure 71 - HID Iclass KEYRW400
105
Figure 72 - HID Iclass KEYRK40
106
Figure 73 - HID Iclass R90 Long Range Reader
107
Figure 74 - HID Iclass R10 Series
108
Figure 75 - HID Iclass R15 Series
109
Figure 76 - HID Iclass R40 Series
110
Figure 77 - HID Iclass RK40 Series
111
Appendix B - Indala Readers
112
Power Specifications
112
Table 21 - Indala Reader Power Specifications
112
Figure 78 - Indala PX 603 and PX 605 Wiring
113
Figure 79 - Indala PX610 Wiring
114
Figure 80 - Indala PX 620 Wiring
115
Figure 81 - Indala PXK 501 Wiring
116
Appendix C - WSSKP-1 Keypad
117
Table 22 - Keypad Power Specifications
117
Figure 82 - WSSKP-1 Keypad Connection
118
Figure 83 - WSSKP-1 Keypad/Reader Combination Connections
119
Appendix D - WIEEX2
120
Table 23 - WIEEX2
120
Table 24 - WIEEX2 Power Requirements
120
Table 25 - WIEEX2 Cables and Distances
120
Figure 84 - Wiegand Extender Overview
122
Figure 85 - WIEEX2 RS485 Connections - (Firmware 6.00 or Higher)
123
Figure 86 - WIEEX2 to OCB-8 Cable Connection
124
Appendix E - Accessibility HC Relay
125
Accessibility HC Output Relays
125
Table 26 - Accessibility HC Relay/ Door Assignment
125
Figure 87 - Accessibility HC Output Relay CA250B/OCB-8 Connections
126
Figure 88 - Accessibility HC Output Relay CA4500B/OCB-8 Connections
127
Figure 89 - Accessibility HC Output Relay CA8500B/OCB-8 Connections
128
Appendix F - Pre-Alert Relay
129
Pre-Alert
129
Table 27 - Pre-Alert Relay to Door Assignments
129
Figure 90 - Pre-Alert Relay CA250B/OCB-8 Connections
130
Figure 91 - Pre-Alert Relay CA4500B/OCB-8 Connections
131
Figure 92 - Pre-Alert Relay CA8500B/OCB-8 Connections
132
Appendix G - Global Output Relay
133
OCB-8/Global IO Assignments
133
Table 28 - OCB-8 Global Output Relay #/ Client Relay Assignments
133
Figure 93 - Global OCB-8 Ribbon Cable Connection with CA4500 & CA8500
134
Current Ratings
135
Table 29 - Circuit Board Current Ratings
135
Relay States
136
Table 30 - List of Relay States
136
Warranty
138
Index
139
Other manuals for Keyscan CA8500B
Technical Guide
142 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Keyscan CA8500B and is the answer not in the manual?
Ask a question
Keyscan CA8500B Specifications
General
Brand
Keyscan
Model
CA8500B
Category
Control Unit
Language
English
Related product manuals
Keyscan CA8500 Series
200 pages
Keyscan CA8500B/OCB-8
142 pages
Keyscan CA150
113 pages
Keyscan CA4500B
142 pages
Keyscan CA250 Series
200 pages
Keyscan EC2500 Series
200 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
