Keyscan NETCOM2P - Serial Programming Connections with USB Adaptor

Keyscan Inc. A Member of the Kaba Group
16

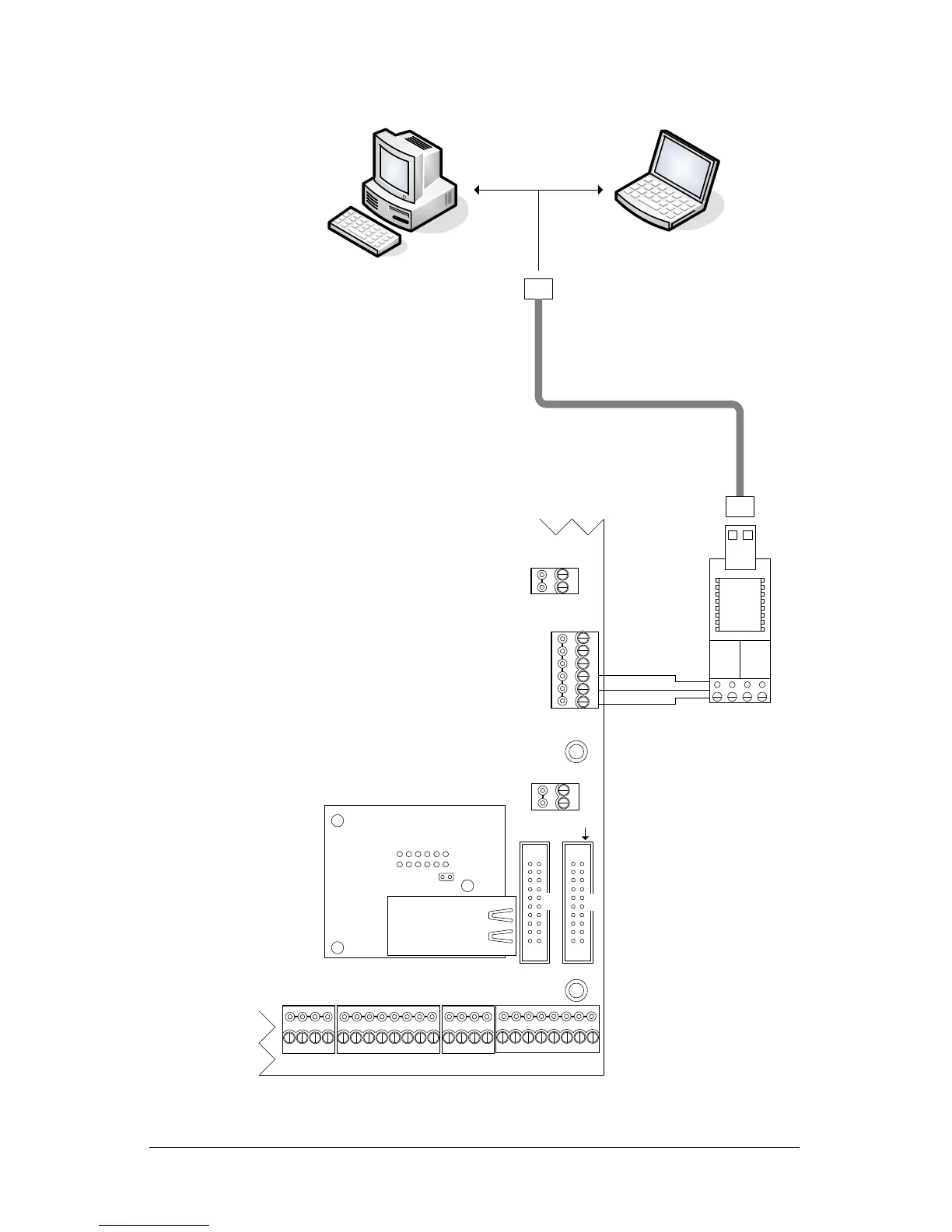

Figure 7 - Serial Programming Connections with USB Adaptor
Green
Red
Black
Use 3 loose
RS232 wires.
BRN
WHT
GRN
WHT
+ TX - + RX -
485 OUT 485 IN
RJ45
Terminal
Jack
NETCOMP
RESET
Control Board
(PC 109x)
Cut view with ACU
protective cover removed.
Common AUX Inputs - E
CPB/CB MODULE
(COM4)
AUX Inputs - D
Common
IOCB (COM1)
NETCOMP plugs into M1 on
control board.
RS-232 (COM4)
GND
TD
RD
DCD
DTR
CTS
PC or laptop with Keyscan
NETCOM Program Tool
Utility.
TAMPER TB3
SWITCH
+
-
KI-00254E-08-13
For programming a NETCOM2P or NETCOM6P
J16 – jumpers F & G - ON
Or
S2 – DIP switches 7 & 8 - ON
