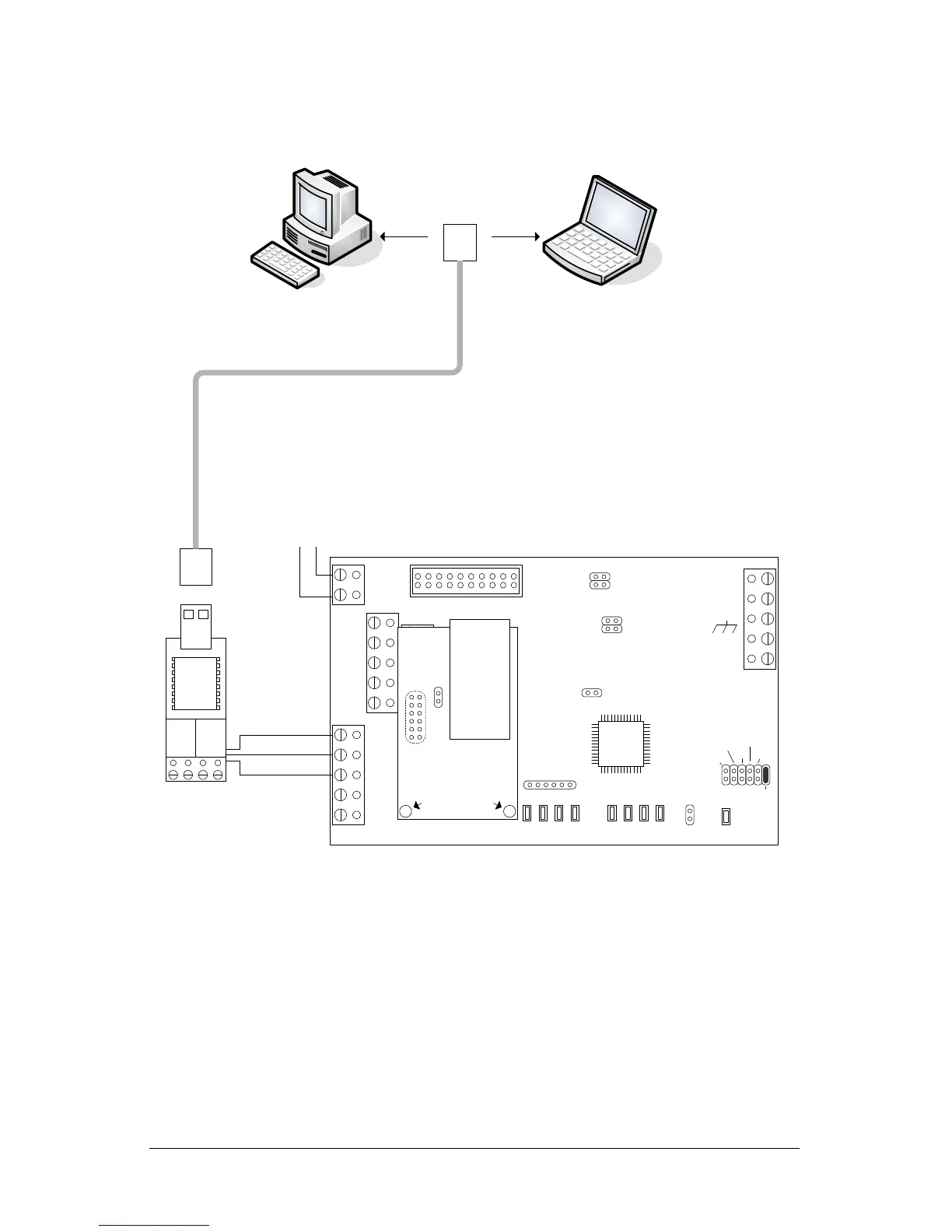

Figure 4 - Optional USB-SER Serial Programming Connections via Independent 12
VDC Supply
PC or laptop with Keyscan
NETCOM Program Tool Utility
Green
Red
Black
Use 3 loose
RS-232 wires
BRN
WHT
GRN
WHT
+ TX - + RX -
485 OUT 485 IN
USB cable
+
-
to
12VDC
power
supply
Current Draw - CIM 150mA + NETCOMP 140mA = 290mA
CIM 0
TD1
RD1
TD2
RD2
GND
RTS1
CTS1
GND
RTS2
CTS2
B3 B2 B1 B0
Diag
J2
RESET
-
CAN2
+
EGND
-
CAN1
+
GND
V +
(+12V)
SCKT1
Tx Data
PC106x
J1
J7
J8
J6
J5
CAN2
CAN1
Rx Data
1 2 1 2 1 2 1 2
COM COM
CAN
CAN
J3
J4
J9
J12
Power
Good
Fault
COM2
HDR1
J10
J11
RJ45
Terminal
Jack
RESET
NETCOMP
Standoffs
To program
NETCOM2P/6P
jumper ON J12
KI-00258E-04-13
Temporary connections for programming only.
