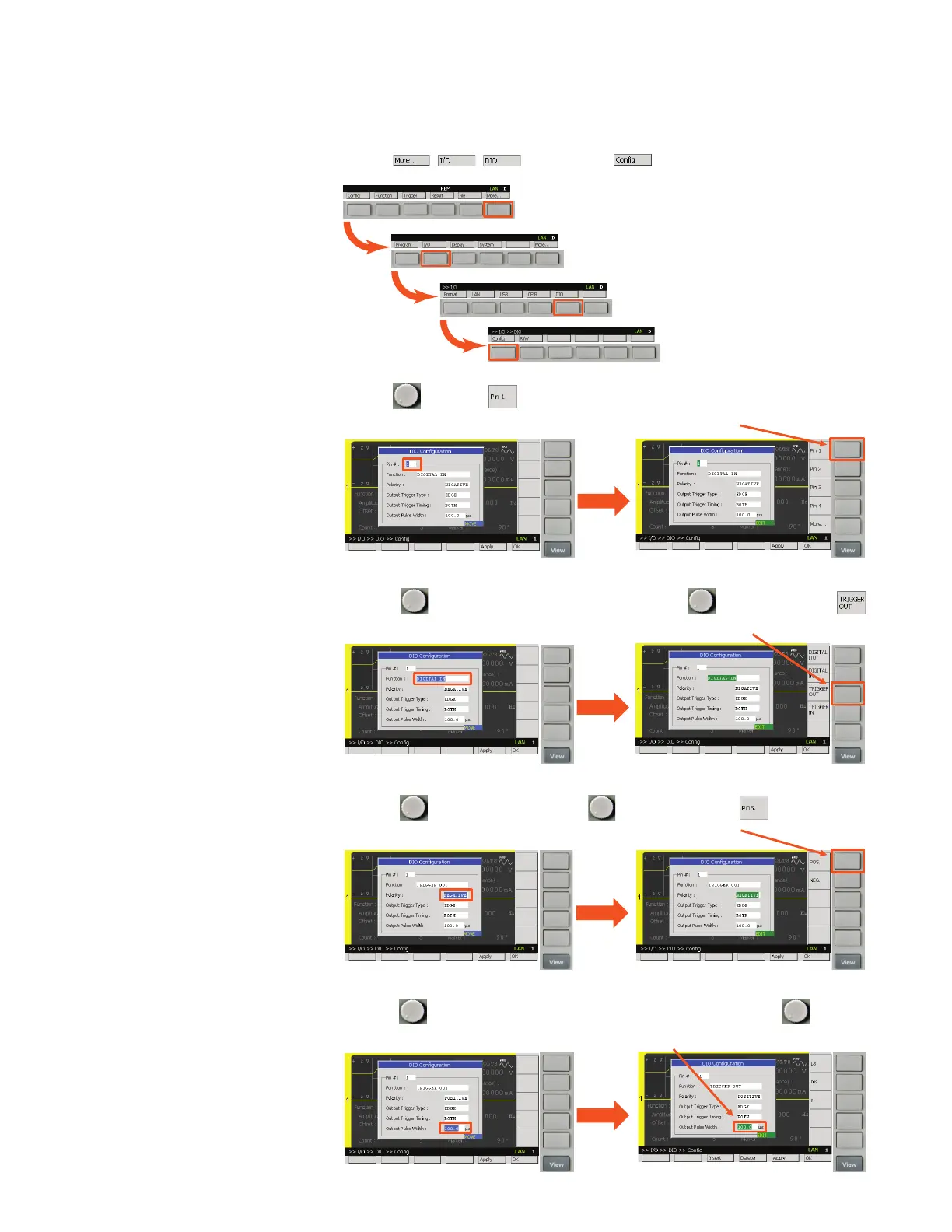

5) Press , , , and then press to open the DIO Conguration dialogue.
6) Press and select to specify the Digital I/O pin number; the properties of this
pin is what we will congure.
7) Rotate to select the Input/output function and press to edit it. Then press
to set the function to Trigger output.
8) Rotate to select Polarity and press to edit it. Then press to set the polarity
to Positive; this will output a positive logic signal.
9) Rotate to select the Pulse width of the phase marker output and press to edit it.
Then enter 500 µs to set the Pulse width to 500 µs.
(1) Press More...
(2) Press I/O
(3) Press DIO
(4) Press Cong
11 | Keysight | Sourcing Precise Current/Voltage Sinusoidal Waveforms Using the B2961A/62A – Demo Guide
