Keysight Technologies EXA N9010B User Manual

Installation Note N9010-90067 17
Option EXM, External Mixing Upgrade Kit
Front Frame Replacement
1. Refer to Figure 11, “Front Panel Cable,”. Reattach the ribbon cable W1. Ensure the locking tabs
are engaged.
2. Refer to Figure 12, “Front Frame Replacement,”. Carefully position the Front Frame Assembly
onto the chassis. Ensure no cables are crushed. Replace the eight screws (1)(0515-1035),
four on each side of the chassis. Torque to 9 inch pounds.

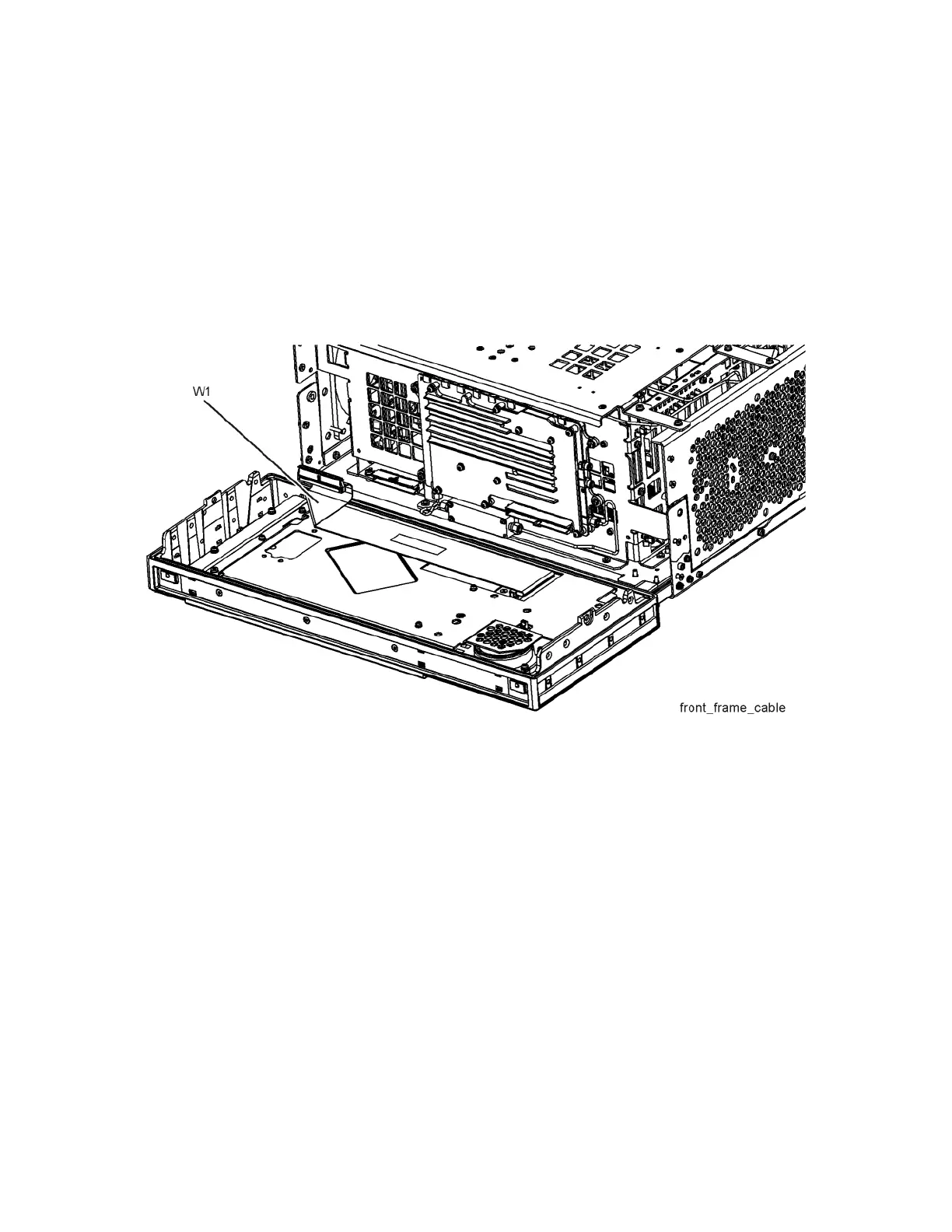

Figure 11 Front Panel Cable
