Keysight Technologies EXA N9010B User Manual

18 Installation Note N9010-90067
Option EXM, External Mixing Upgrade Kit

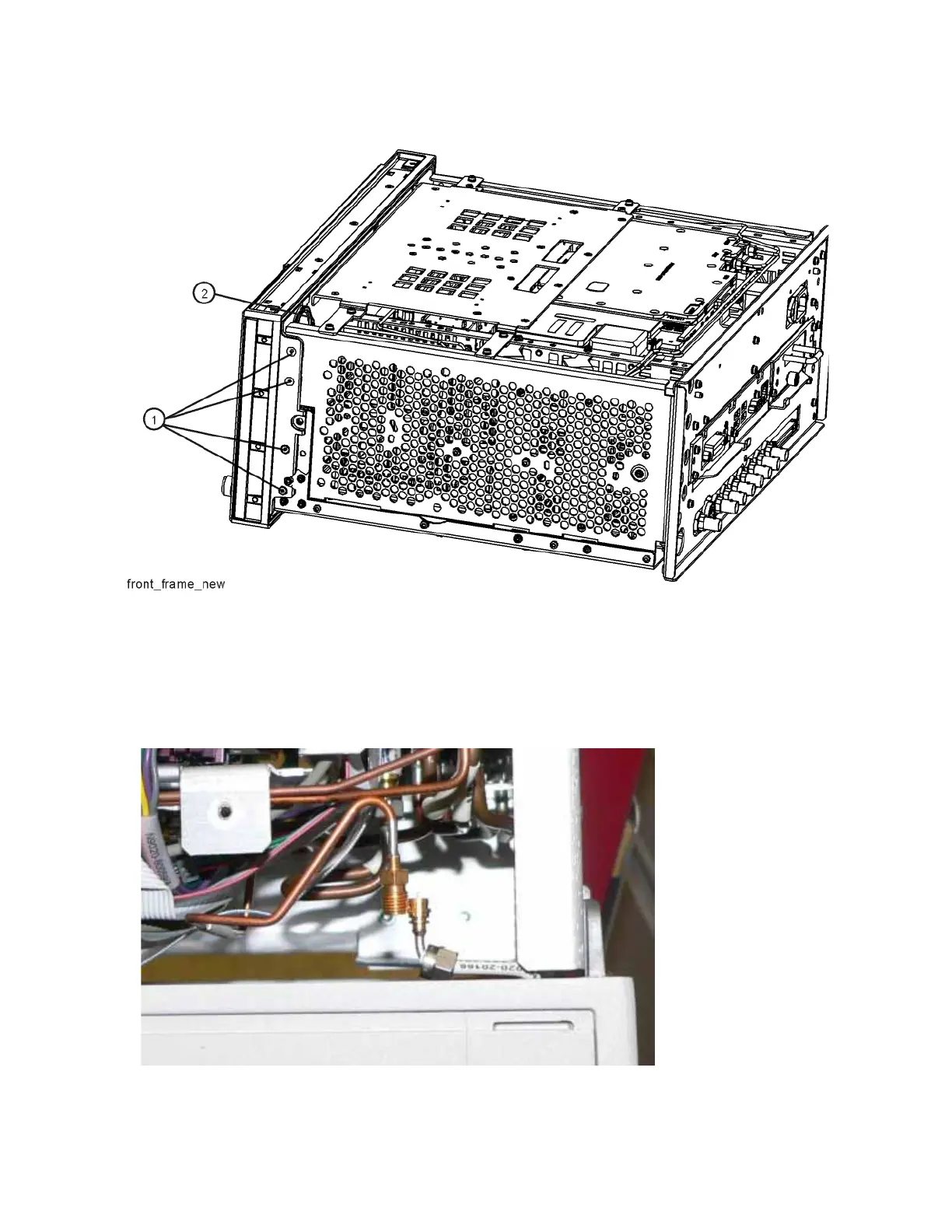

Figure 12 Front Frame Replacement
3. Refer to Figure 13, “W27 and W28 Before Alignment,”. When the front panel is installed,
cables W27 and W28 typically do not align. This is OK since the cables are flexible.
4. Refer to Figure 14, “W27 and W28 Properly Aligned,”. Align and connect cables W27 and W28.
Hand-tighten the nut.
Figure 13 W27 and W28 Before Alignment
