Installation Note N9010-90067 19

Option EXM, External Mixing Upgrade Kit

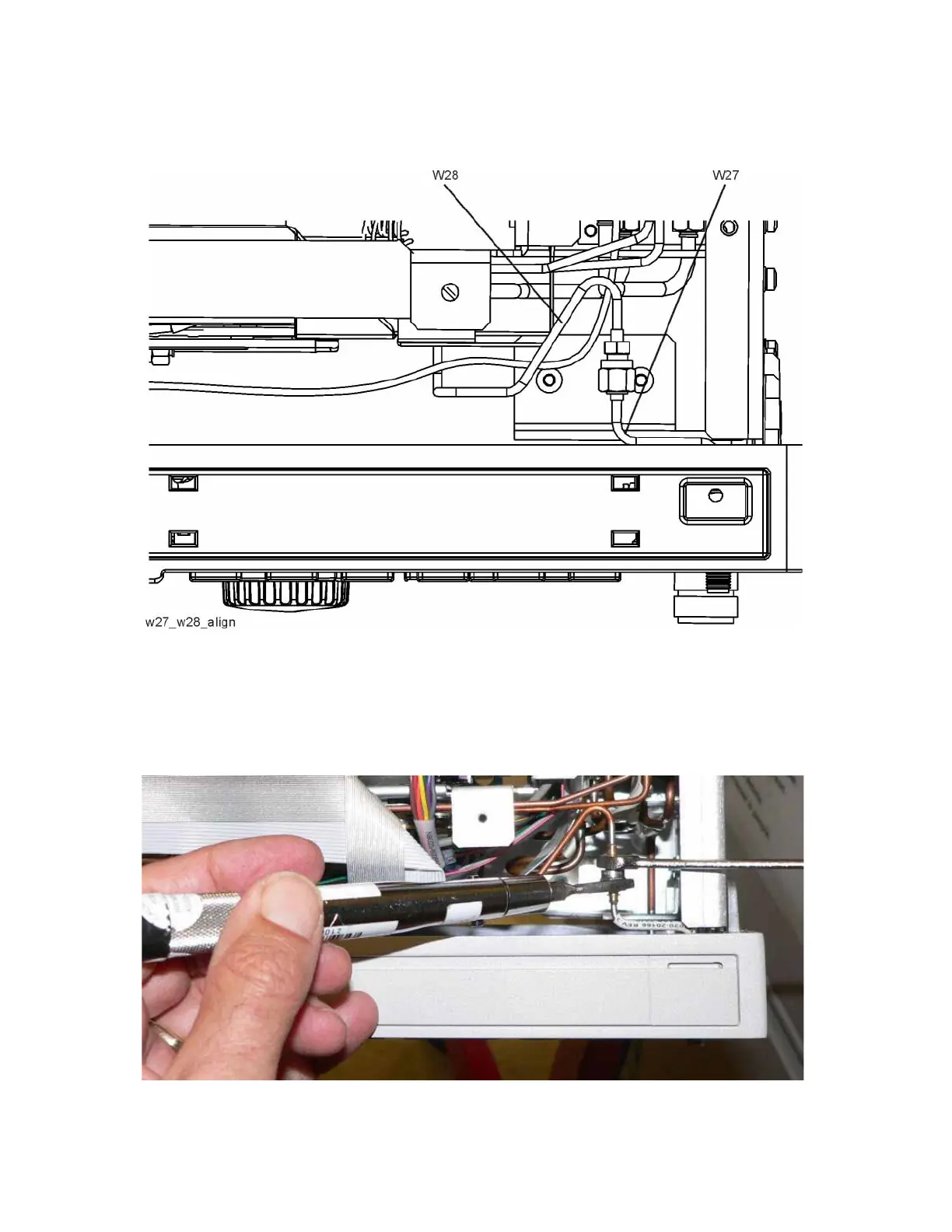

Figure 14 W27 and W28 Properly Aligned

5. Refer to Figure 15, “Torque Cable W27 onto W28,”. Use a ¼” open-end wrench to prevent the

SMA female connector on W28 from twisting. Use a 5/16” torque wrench to torque the nut on

W27 to 10 inch-pounds.

Figure 15 Torque Cable W27 onto W28
