20 Installation Note N9010-90067
Option EXM, External Mixing Upgrade Kit
Top Brace Replacement
1. Refer to Figure 16, “Top Brace Replacement,”. To replace the top brace, place the brace in the
correct position and attach to the chassis using the eight screws (3) (0515-0372). Attach the
top brace to the boards using the twelve screws (4) (0515-1946) included in the kit.
2. Torque all screws to 9 inch-pounds.

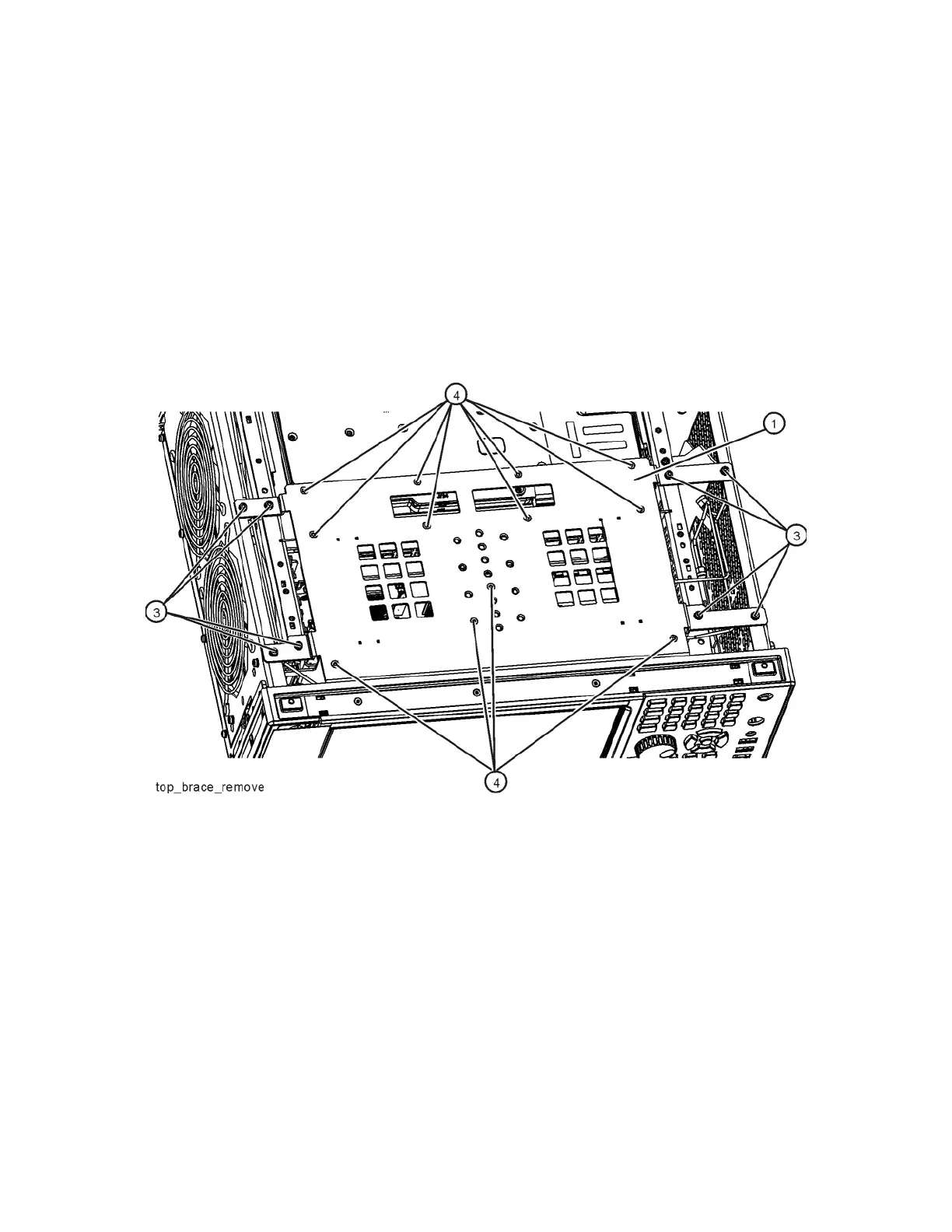

Figure 16 Top Brace Replacement
