Installation Note N9010-90067 21
Option EXM, External Mixing Upgrade Kit
3. In the upgrade kit, locate the Warning Label, N9030-80018.
4. Refer to Figure 17, “Add Warning Label to Top Brace,”. Attach the Warning Label to the top
brace as shown.
5. Locate the 50 Ohm SMA termination in the kit, part number 1810-0118. Attach the SMA
termination to the front panel EXT MIXER connector.

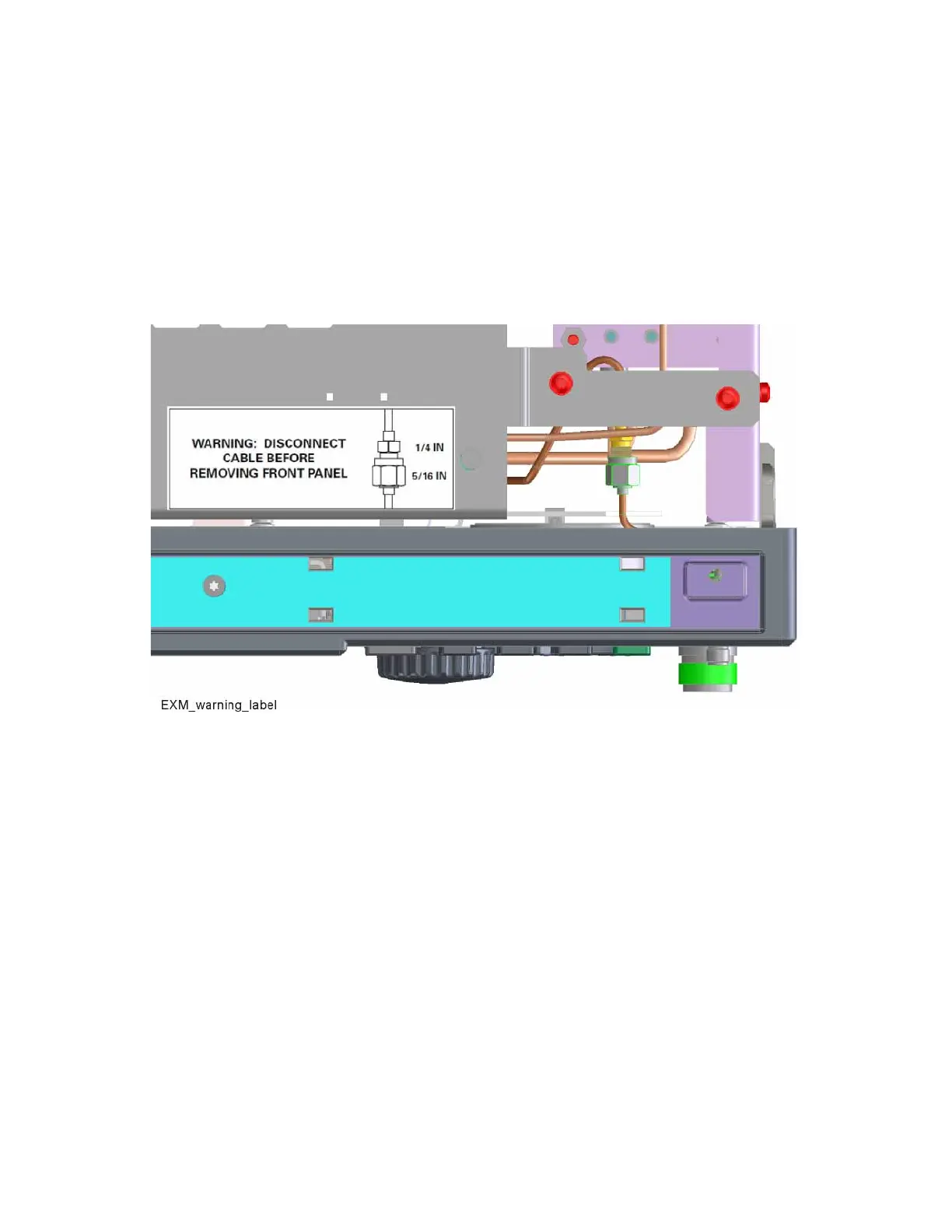

Figure 17 Add Warning Label to Top Brace
