Keysight FieldFox Handheld Analyzers Service Guide 123
Repair and Replacement Procedures
Removing and Replacing the Case Group Parts
5. Refer to Figure 7-12. Remove the three doors from the old I/O side panel:
a. Open each door to its stopping point, then GENTLY force it beyond
its stopping point to separate it from the panel.
6. Install the three doors in the new I/O side panel:
a. Place each door in its respective opening with the hinges aligned
with the hinge slots in the side panel.
b. Press the hinges into their slots until they snap into place.

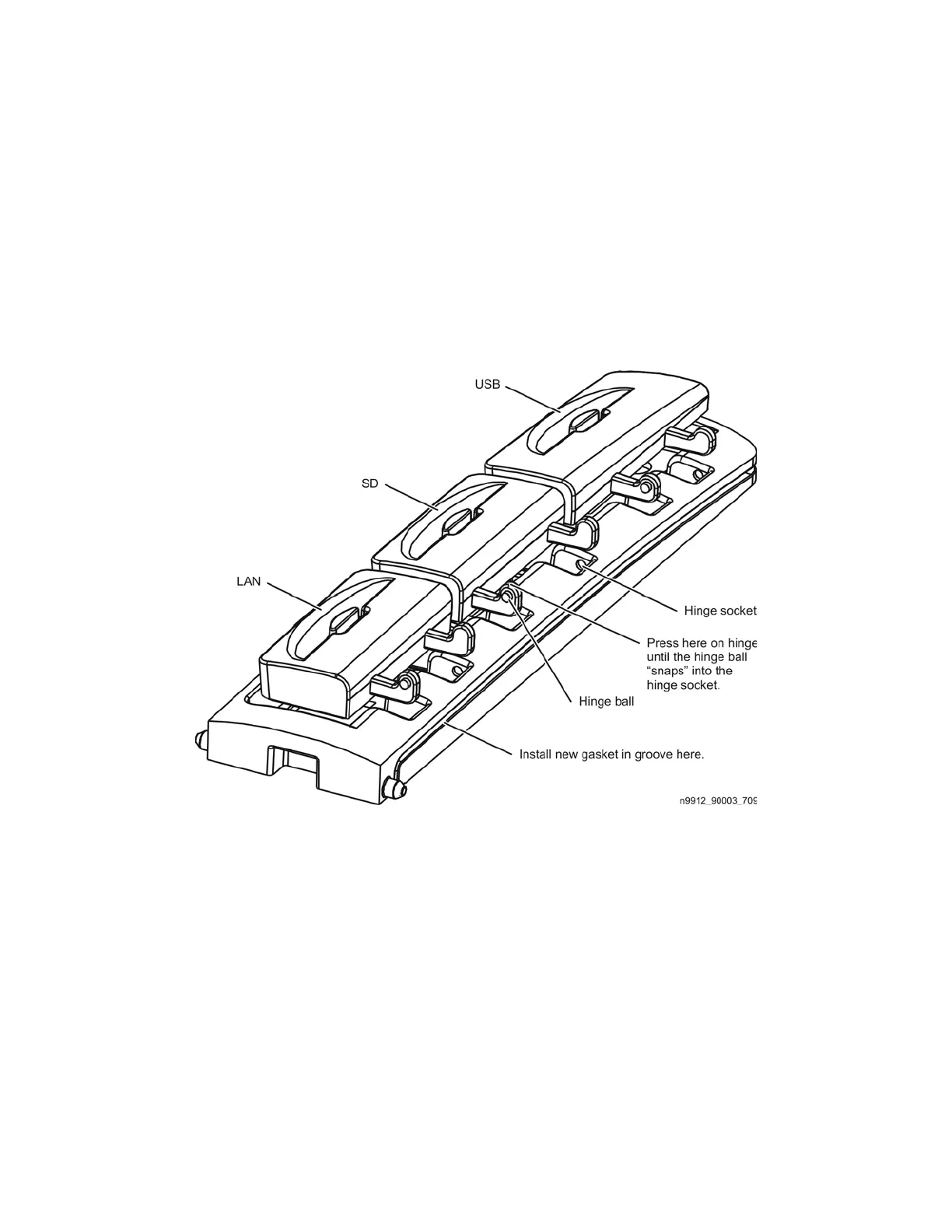

Figure 7-12 Replacing the I/O Side Panel Doors and Gasket
7. Before installing the new I/O side panel, or when reinstalling the existing
I/O side panel, install a new gasket in the groove around the perimeter of
the panel.
If an old gasket must be removed, use tweezers being careful not to
damage the groove.
Start in the groove near the flat end of the side panel. Be careful not to
stretch or damage the gasket in any way. Also, make sure there is no slack
in the gasket. A new gasket is provided in the Repair and Re-assembly Kit
(see page 103). It is the smaller of the two gaskets provided in the kit.
8. To install the new I/O side panel, place it in position on the A5 System
board and reinstall the two attachment screws. See Figure 7-11.
