14 Replacing the Power Supply
i3070 Lean Inline System (E9988EL)

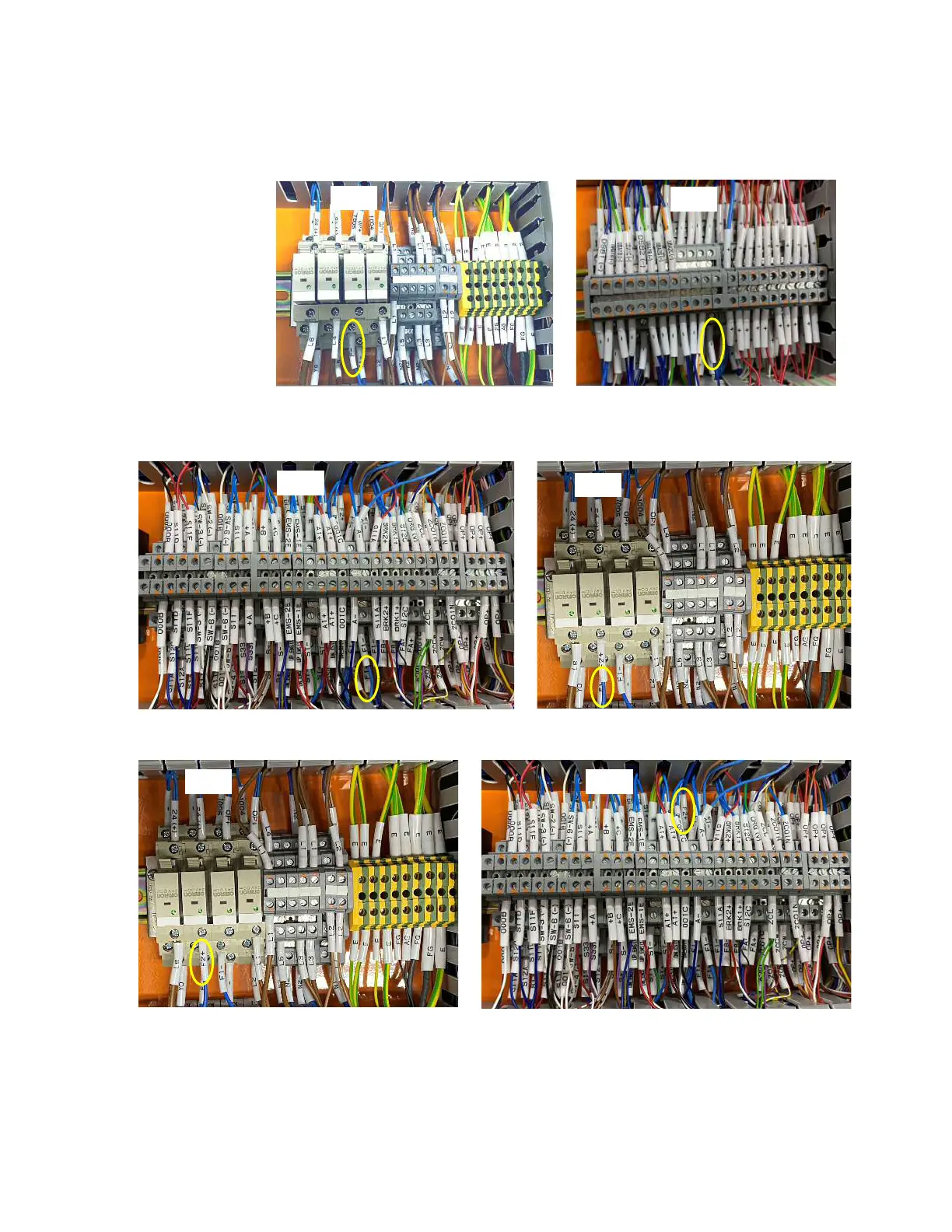

12 Connect a new cable labeled – from K-2 (terminal contact 12) to TB-4.
13 Disconnect the blue cable labeled F1+ from TB-3 and connect it to K-B
(terminal contact 8).
14 Connect a new cable labeled F2+ from K-B (terminal contact 12) to TB-3.
TB-4
K-2
TB-3
K-B
TB-3K-B
