i3070 Lean Inline System (E9988EL)
Replacing the Power Supply 15

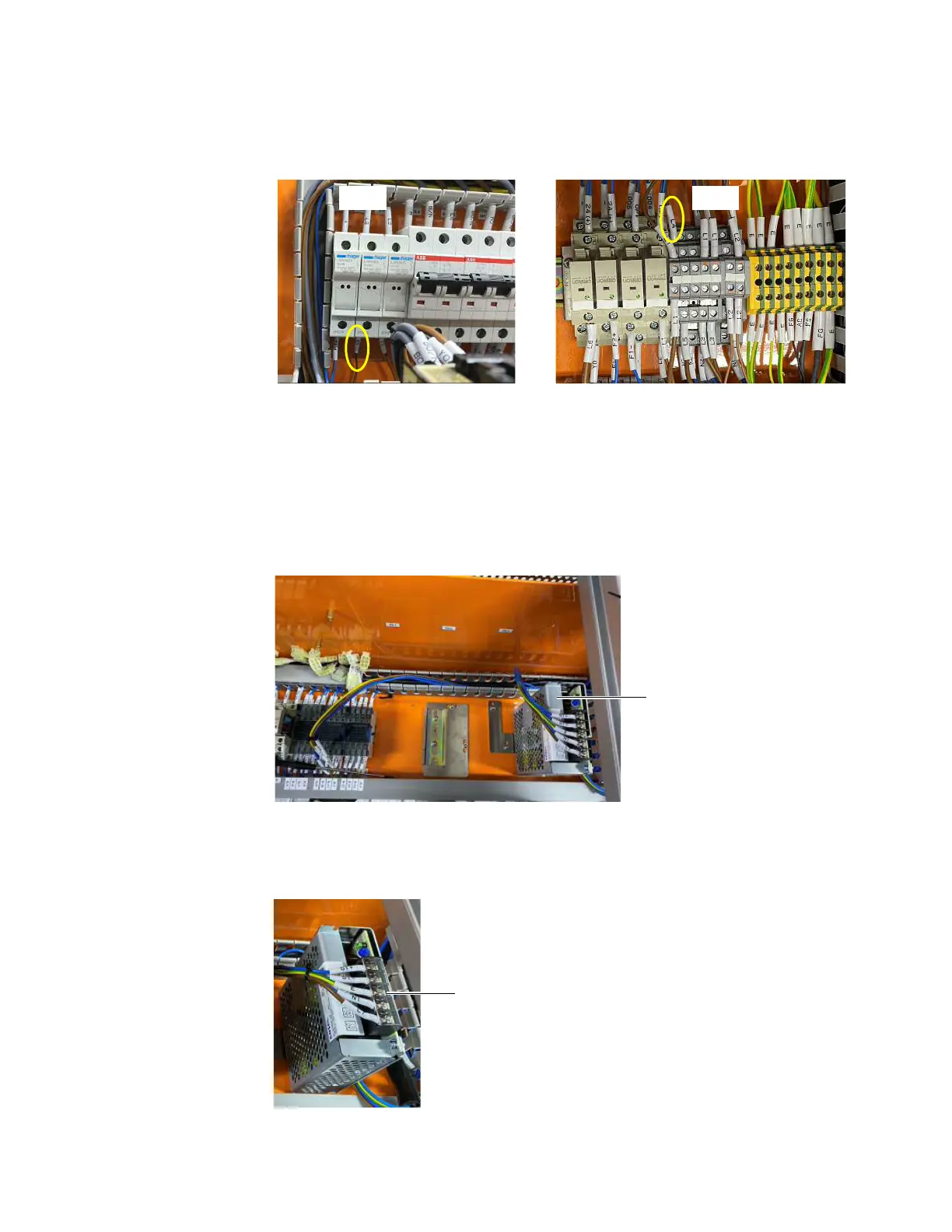

15 Connect a new cable labeled L4 from F-4 to TB-2.
Continue with Completing the installation.
Installing the Cosel 6.4 A AC/DC power supply
If installing the Cosel 6.4 A AC/DC power supply, follow step 16 through step 20.
16 Install the bracket and mount the new Cosel 6.4 A AC/DC power supply.
17 Connect the cables labeled ST+, ST-, E, N1, and L7 (formerly from PS3) to the
Cosel power supply. Tighten the screws to secure the cables and close the
protective cover.
Cosel 6.4 A AC/DC power
supply with bracket
To Next Page
