Keysight Technologies InfiniiVision 1000 X-Series Service Guide

Testing Performance 2
1000 X-Series Oscilloscopes Service Guide 27

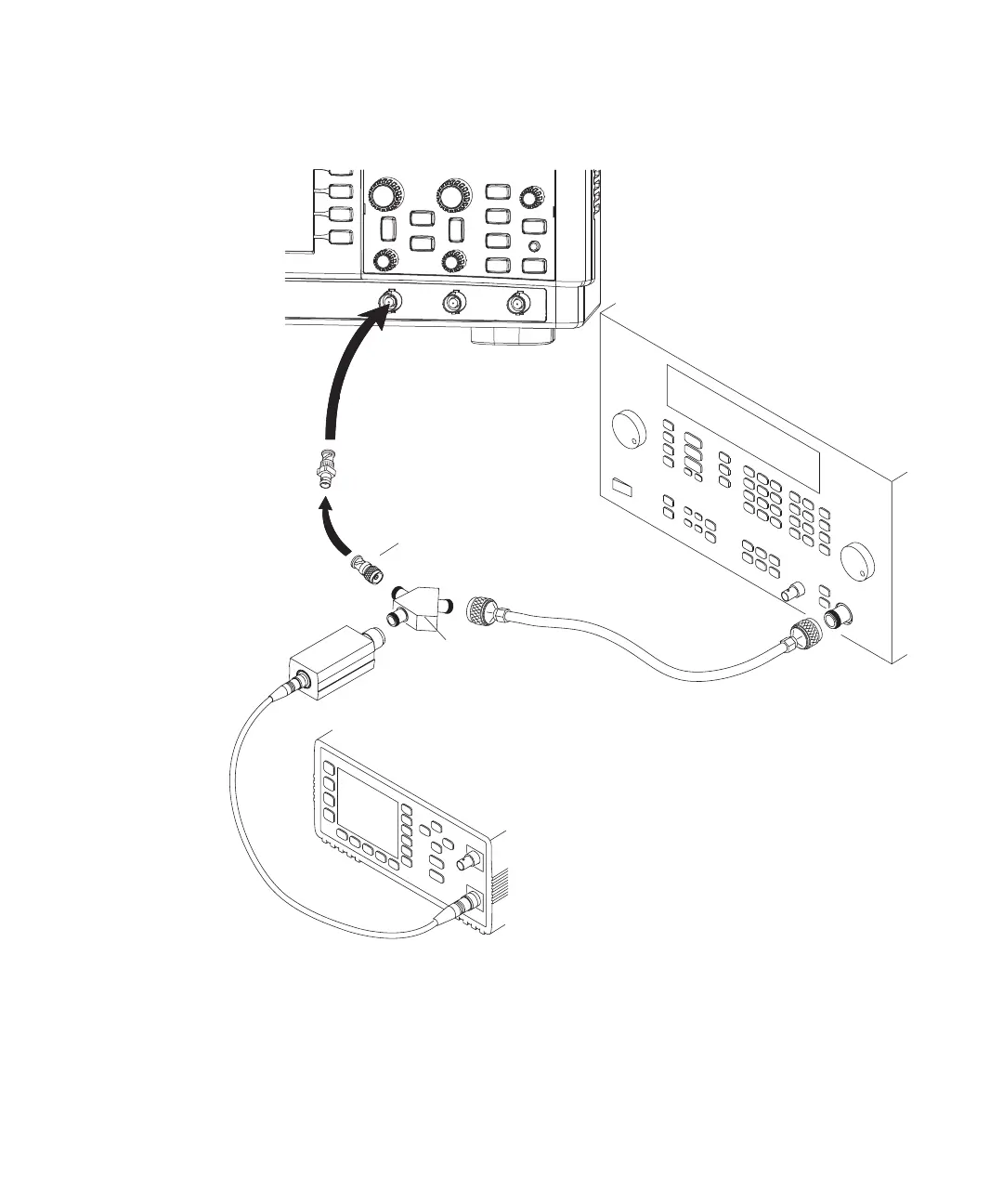

Figure 3 Setting Up Equipment for Bandwidth (-3 dB) Verification Test
2 Set up the power meter.
Set the power meter to display measurements in units of watts.
Power Splitter
Power Sensor
Signal
Generator
Oscilloscope
Power
Meter
N Cable
N to BNC Adapter
50 Ohm Feedthrough
