Testing Performance 2
1000 X-Series Oscilloscopes Service Guide 37

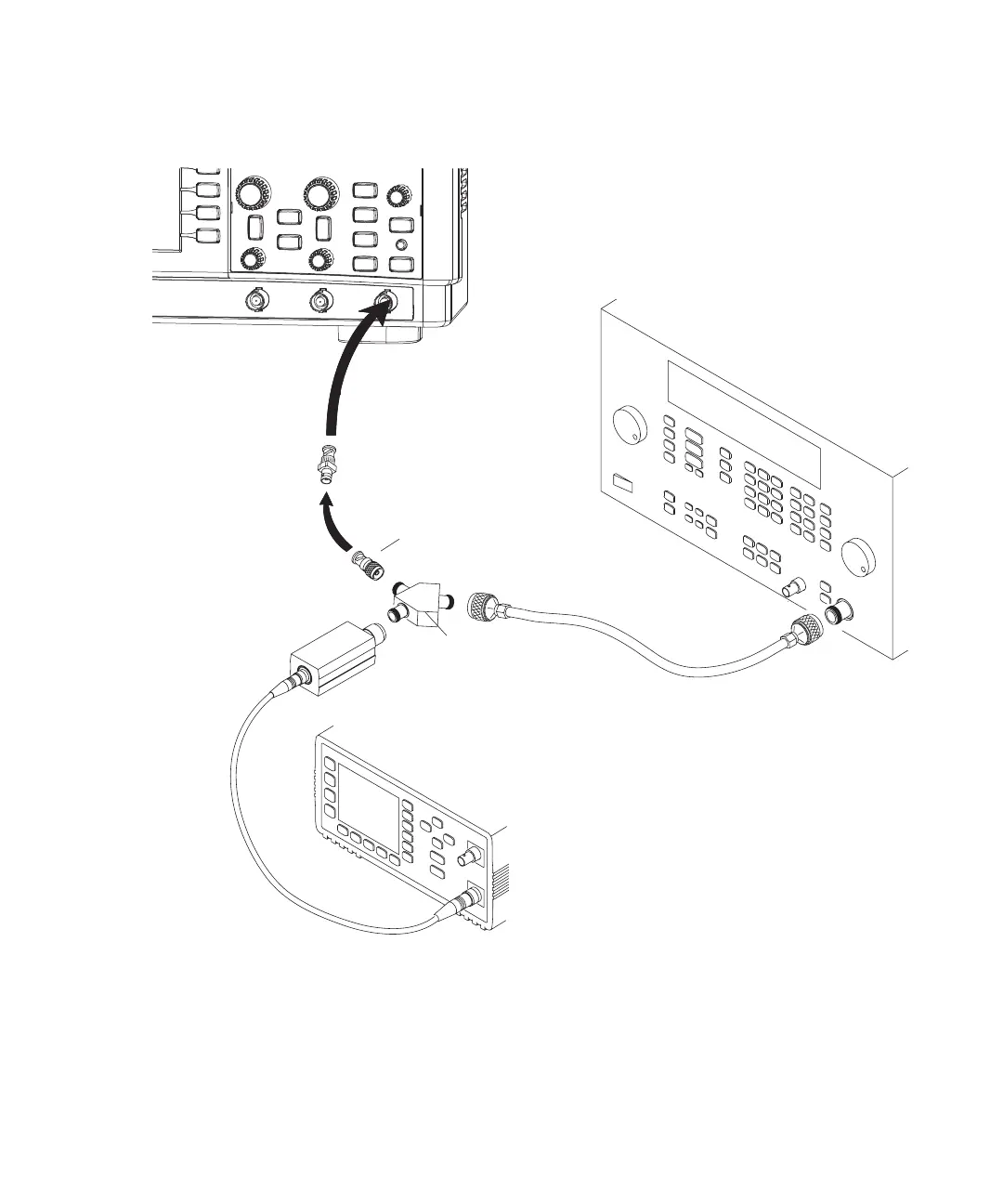

Figure 5 Setting Up Equipment for External Trigger Sensitivity Test
Power Splitter
Power Sensor
Signal
Generator
Oscilloscope
Power
Meter
N Cable
N to BNC Adapter
50 Ohm Feedthrough
