498 N9030B PXA Signal Analyzer Service Guide
Assembly Replacement Procedures
Front End Control Assembly
Front End Control Assembly
Removal
1. Remove the instrument outer case. Refer to the Instrument Outer Case
removal procedure.
2. Remove the instrument top brace. Refer to the Top Brace and Power
Supply Bracket removal procedure.
3. Refer to Figure 16-65. Locate the Front End Control assembly (1).

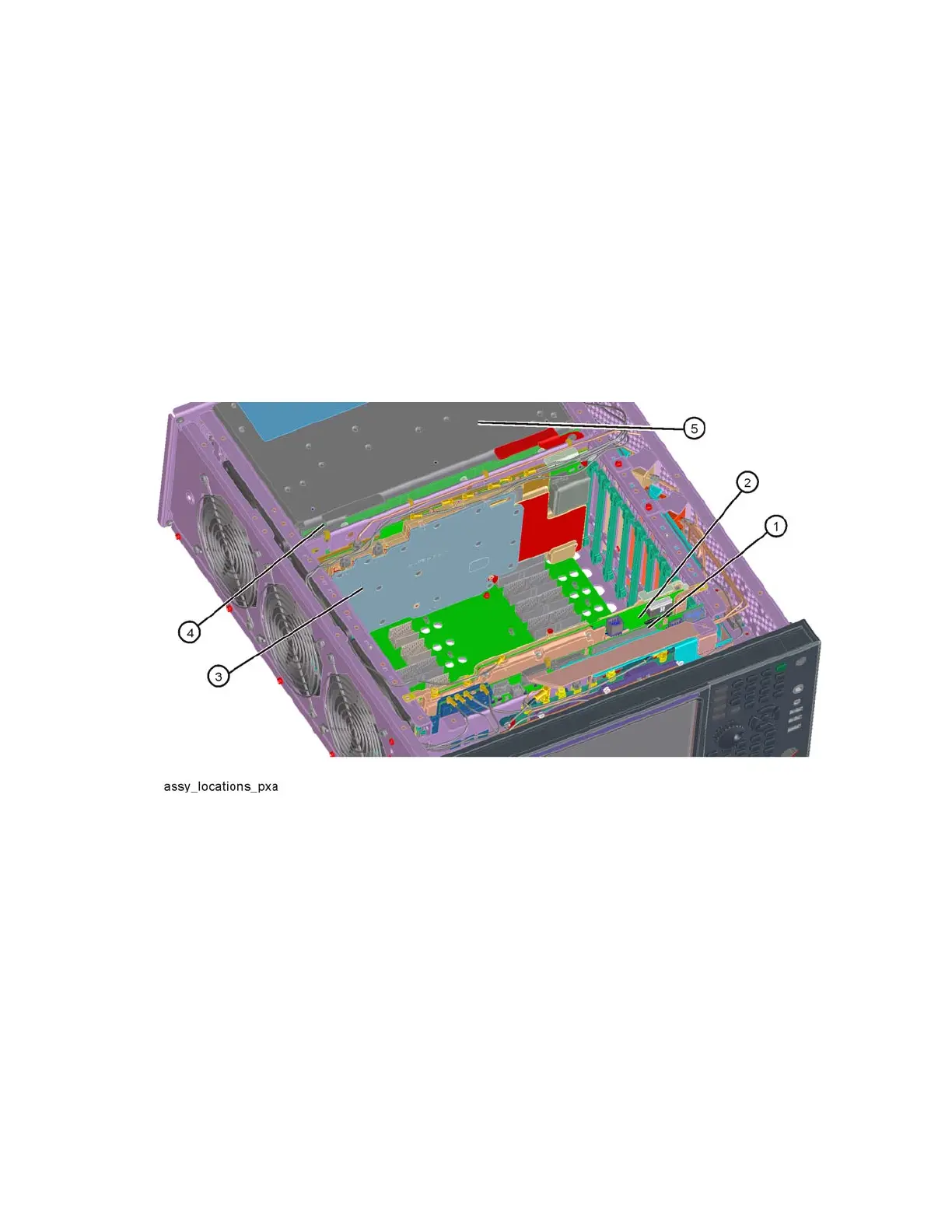

Figure 16-65 Assembly Locations
