N9030B PXA Signal Analyzer Service Guide 549
Assembly Replacement Procedures
Front Frame Assembly
Keyboard/Keypad
1. Refer to Figure 16-107. Remove the RPG knob by carefully pulling it off
the shaft. To remove the keyboard (1), remove the eight screws (2)
(0515-0430). When replacing the keyboard into the front frame, torque the
screws to 9 inch-pounds. Replace the RPG knob by firmly pushing it onto
the shaft.

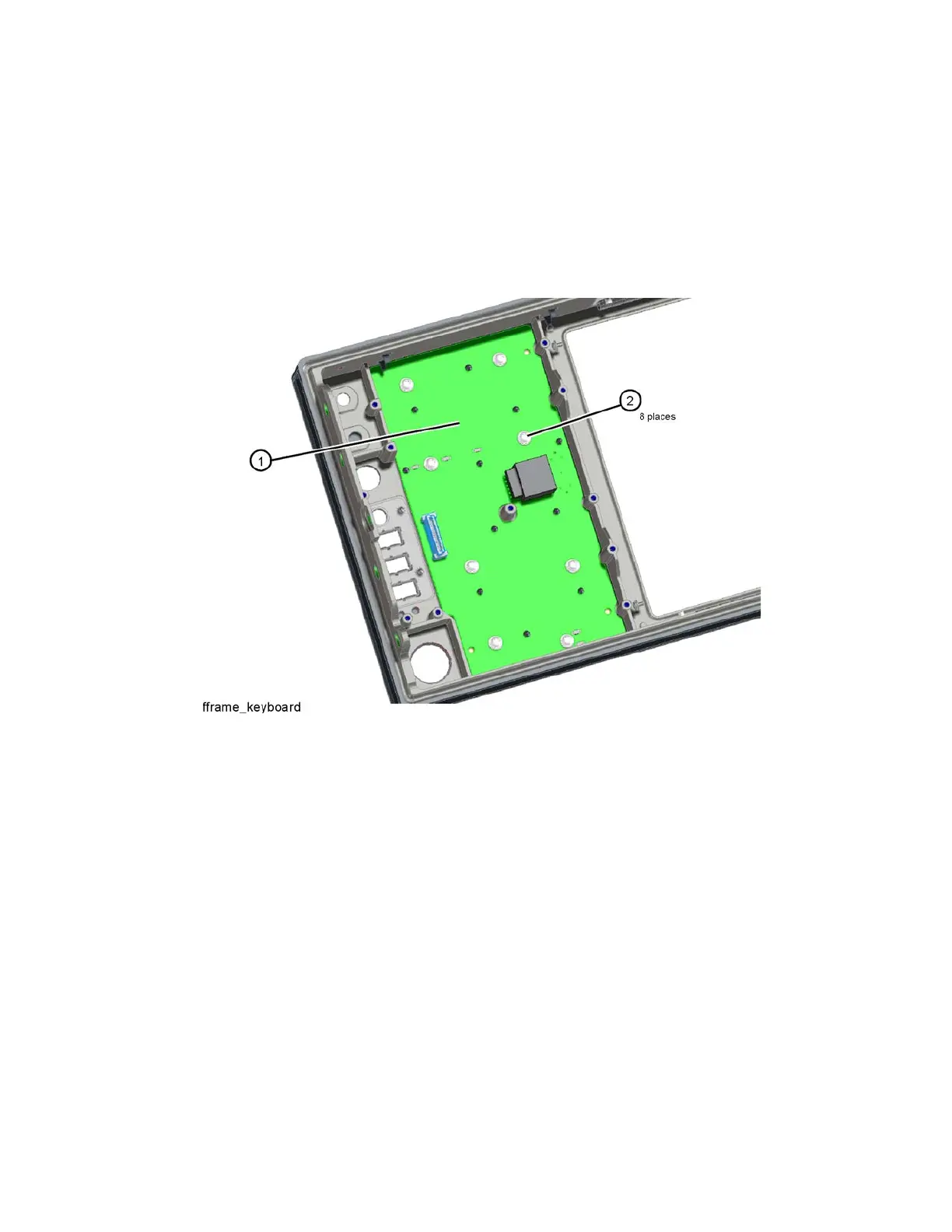

Figure 16-107 Keyboard
