5. Output keys - Turn the outputs on or off. Enter voltage or current.
6. Numeric Entry keys - Enter values. Arrow keys increment or decrement numeric settings.

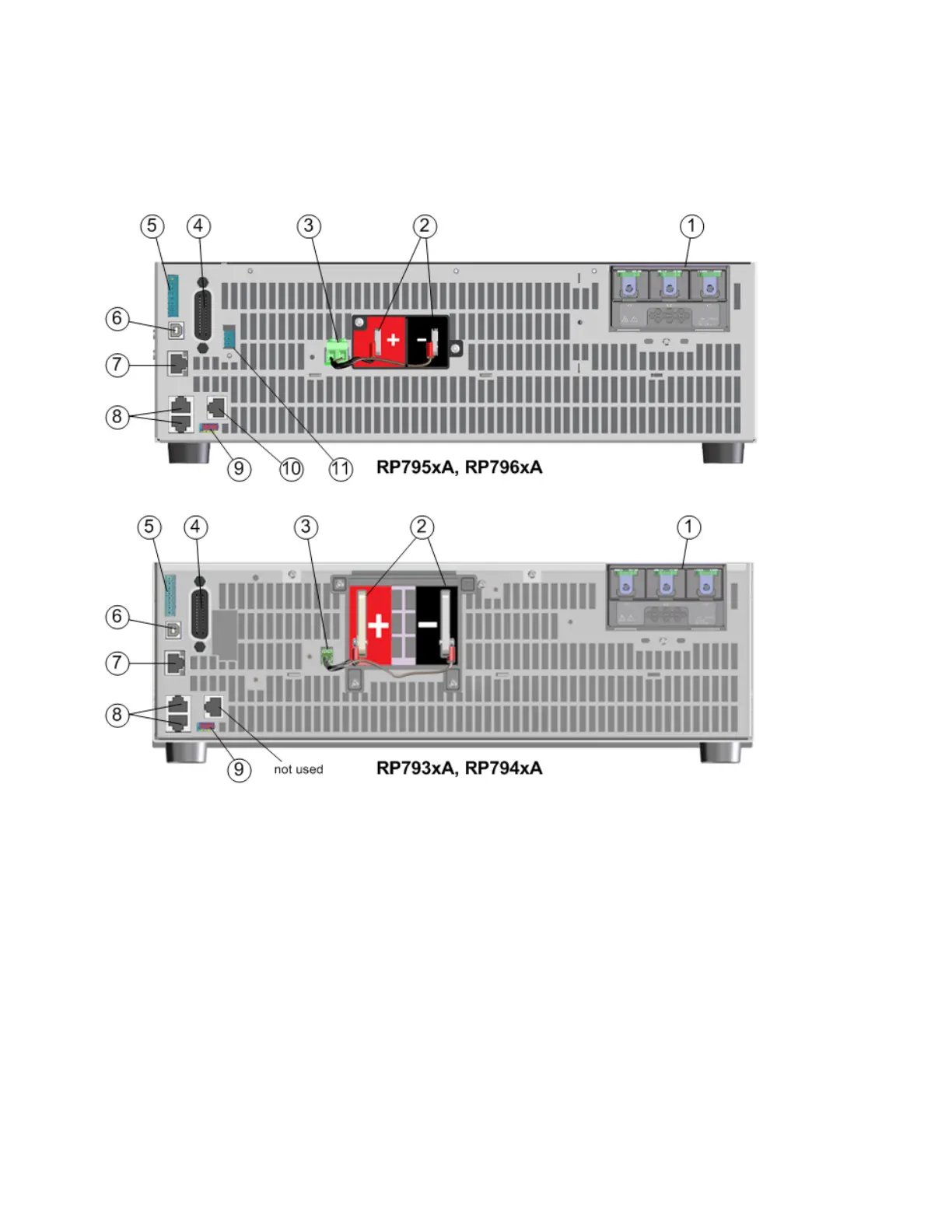

Rear Panel at a Glance
1. AC input - 3-phase AC input (L1, L2, L3) with chassis ground. The AC input is bi-directional.
2. DC outputs - Positive and negative output terminals.
3. Sensing - Remote sense terminals - connected for local sensing.
4. GPIB - GPIB interface connector.
5. Digital IO - Digital IO connector. Pins are user-configurable.
6. USB - USB interface connector.
7. LAN - 10/100/1000 Base-T Left LED indicates activity. Right LED indicates link integrity.
8. Master/slave - Master/slave connectors - for grouping paralleled units.
9. Termination switches - Specifies master/slave termination types.
1 Quick Reference
18 Keysight RP7900 Series Operating and Service Guide
