Security Features & Document of Volatility 34
Memory Sanitization and Removal Procedures
Archiving and Restoring Factory Calibration Data Files

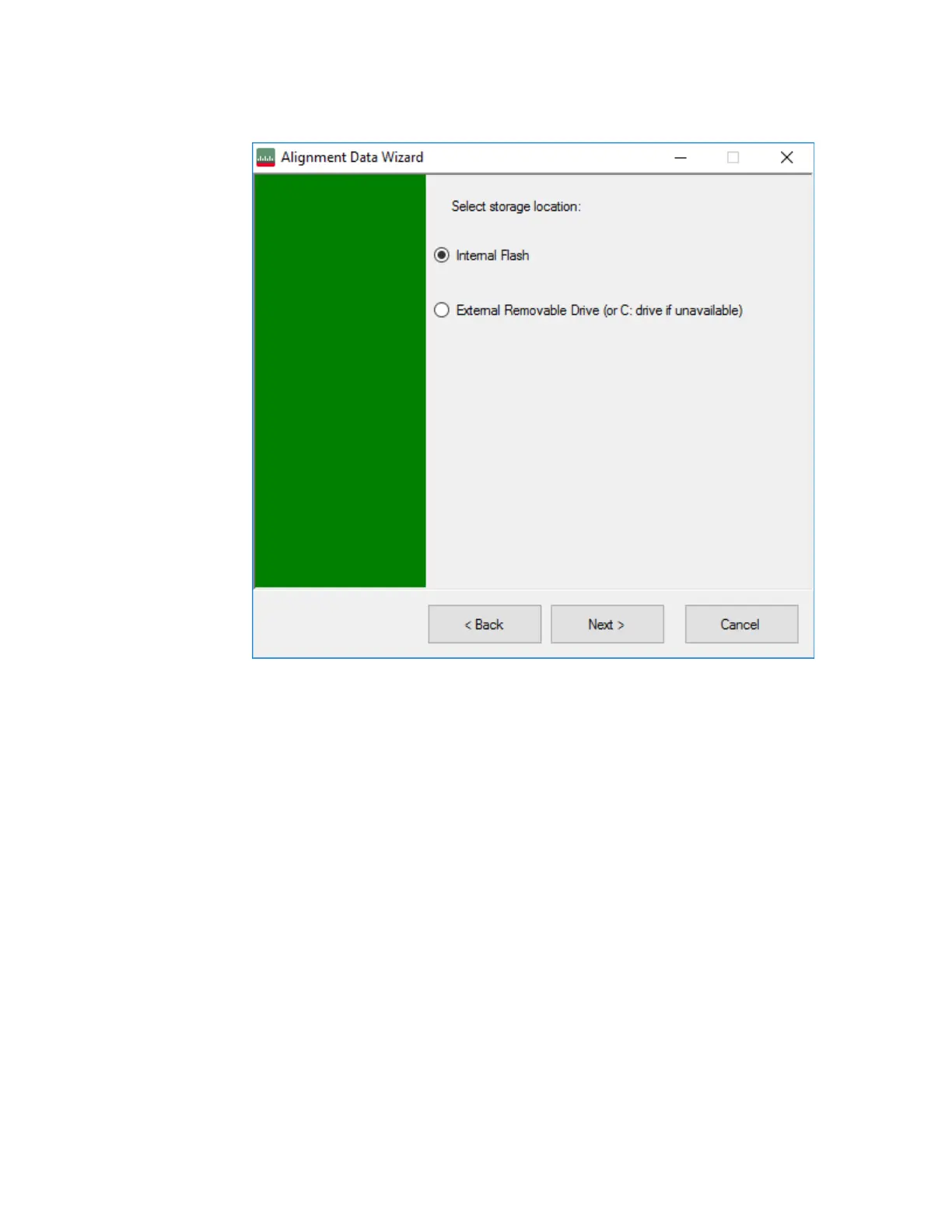

Figure 5-5 Alignment Data Wizard Storage Options for PC6S/PC7S
The available storage location options are as follows:
— Internal Flash is the Calibration Backup memory in the A4 Processor
assembly. For PC6S/PC7S, this is the default location. See item 17
of Table 4-1.
—External Removable Drive. This is the SD memory card in the A4
Processor assembly. See item 7 of Table 4-1.
If the instrument has a PC6 or PC7 Processor Assembly, then the dialog contains only
the External Removable Drive selection, as shown in Figure 5-6. In this case, the
default storage location is the SD memory card in the A4 Processor assembly.
