Programming the Status Register System
Overview
Overall Status Byte Register Systems
— “Overall Status Byte Register System (1 of 2)” on page 170
— “Overall Status Byte Register System (2 of 2)” on page 171

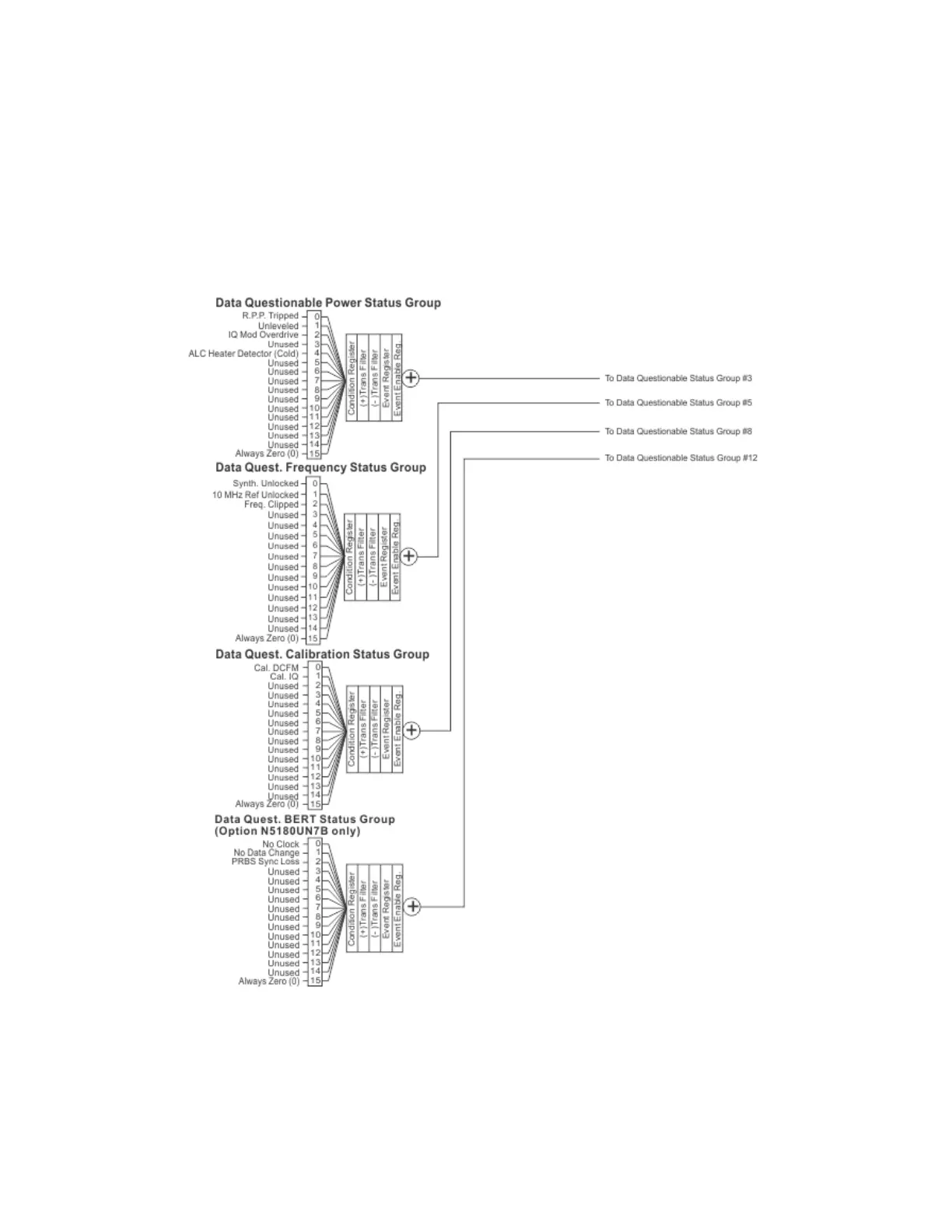

Figure 4-1 Overall Status Byte Register System (1 of 2)
