Chapter 7 Tutorial
Direct Digital Synthesis
7
The 33210A represents amplitude values by 16,384 discrete voltage
levels (or 14-bit vertical resolution). The specified waveform data is
divided into samples such that one waveform cycle exactly fills waveform
memory (see the illustration below for a sine wave). If you create an
arbitrary waveform that does not contain exactly 8K points, the
waveform is automatically “stretched” by repeating points or by
interpolating between existing points as needed to fill waveform memory
.
Since all of waveform memory is filled with one waveform cycle, each
memory location corresponds to a phase angle of 2π /8,192 radians.

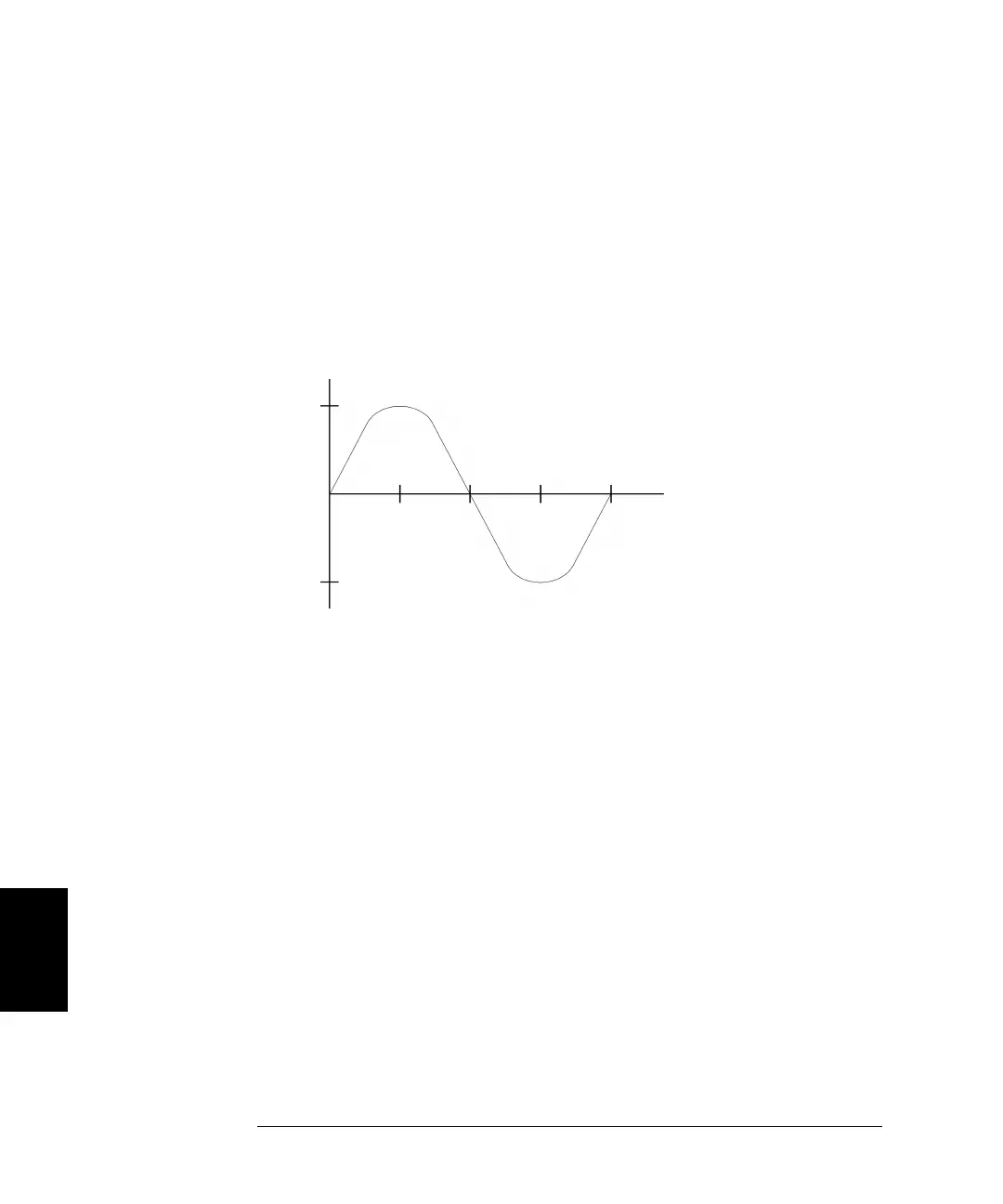

Sine Wave Representation in Waveform Memory
Direct digital synthesis (DDS) generators use a phase accumulation
technique to control waveform memory addressing. Instead of using a
counter to generate sequential memory addresses, an “adder” is used
(see the following page). On each clock cycle, the constant loaded into
the phase increment register (PIR) is added to the present result in the
phase accumulator. The most-significant bits of the phase accumulator
output are used to address waveform memory. By changing the PIR
constant, the number of clock cycles required to step through the entire
waveform memory changes, thus changing the output frequency.
The PIR determines how fast the phase value changes with time and
thereby controls the frequency being synthesized. More bits in the phase
accumulator result in finer frequency resolution. Since the PIR affects
only the rate of change of the phase value (and not the phase itself),
changes in waveform frequency are phase-continuous.
8191
2047
Memory Address
4095
AC
ode
(Phase)
-8191
(90°)
(180°)
6143
(270°)
8191
(360°)
0
