Chapter 7 Tutorial
Pulse Waveform Generation
4
7
Pulse Waveform Generation
To eliminate distortion due to aliasing at higher frequencies, the
Keysight 33210A also uses a different waveform generation technique
to create pulse waveforms. For pulse waveform generation, clock cycles
are counted to derive both the period and the pulse width. To achieve
fine period resolution, the clock frequency is varied from 95 to 100 MHz
by a phase lock loop (PLL) circuit (which also multiplies the incoming
frequency from the DDS by five). The rising and falling edge
t
imes are
controlled by a circuit that varies the charging currents in a capacitor.
Period, pulse width, and edge time are controlled independently, within

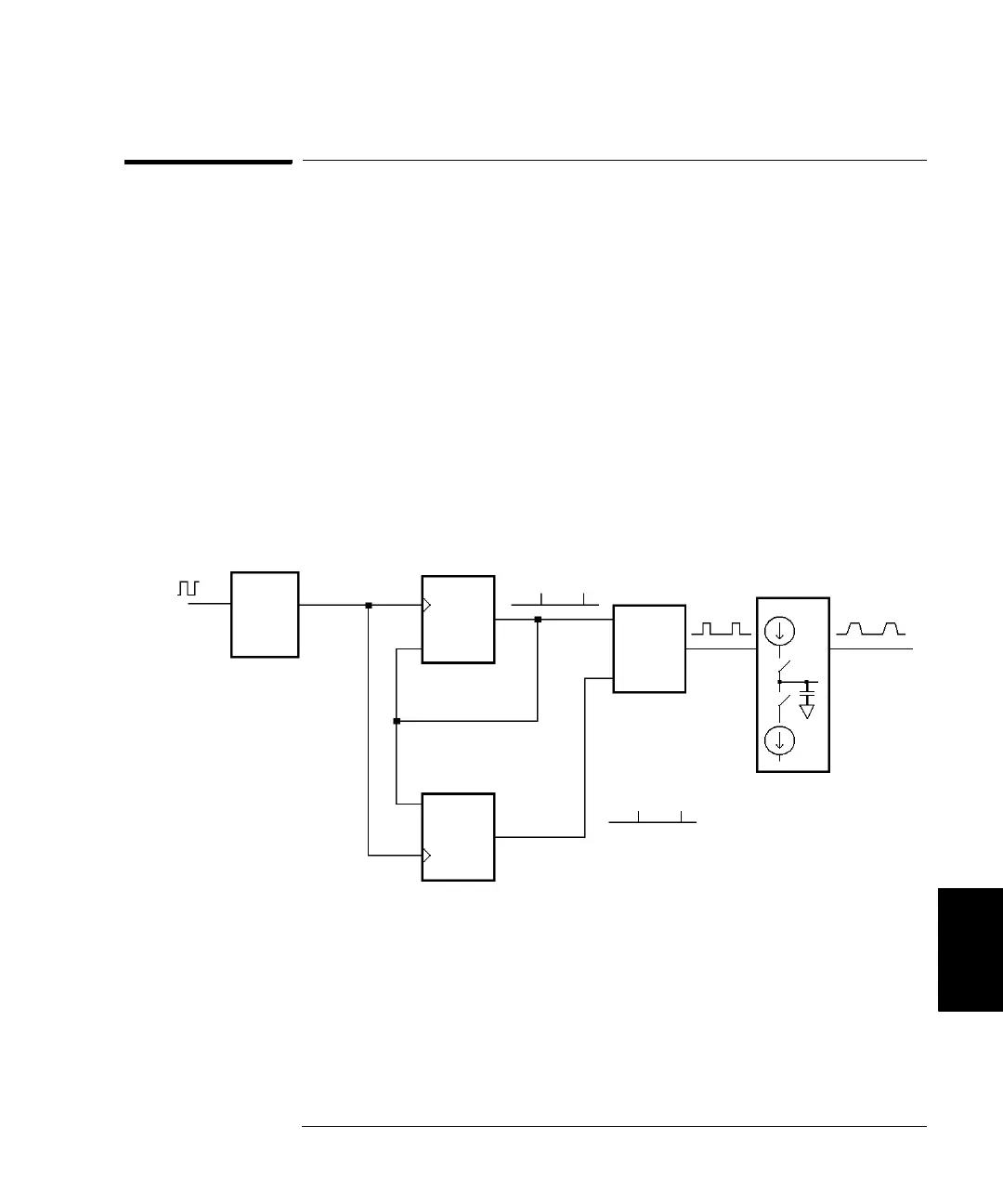

certain limits. The pulse waveform generation circuitry is represented in
the following block diagram.
Pulse Waveform Generation Circuitry
From DDS
Phase
Lock
Loop
(x5)
Load
Period
Counter
95 - 100 MHz
Leading Edge
Edge Time
Circuit
Set
Clear
Flip/Flop
Trailing Edge
Load
Width
Counter
33210A users guide.book Page 317 Wednesday, July 16, 2008 11:16 AM
To Next Page
