Frequency Response Analysis 18
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 299

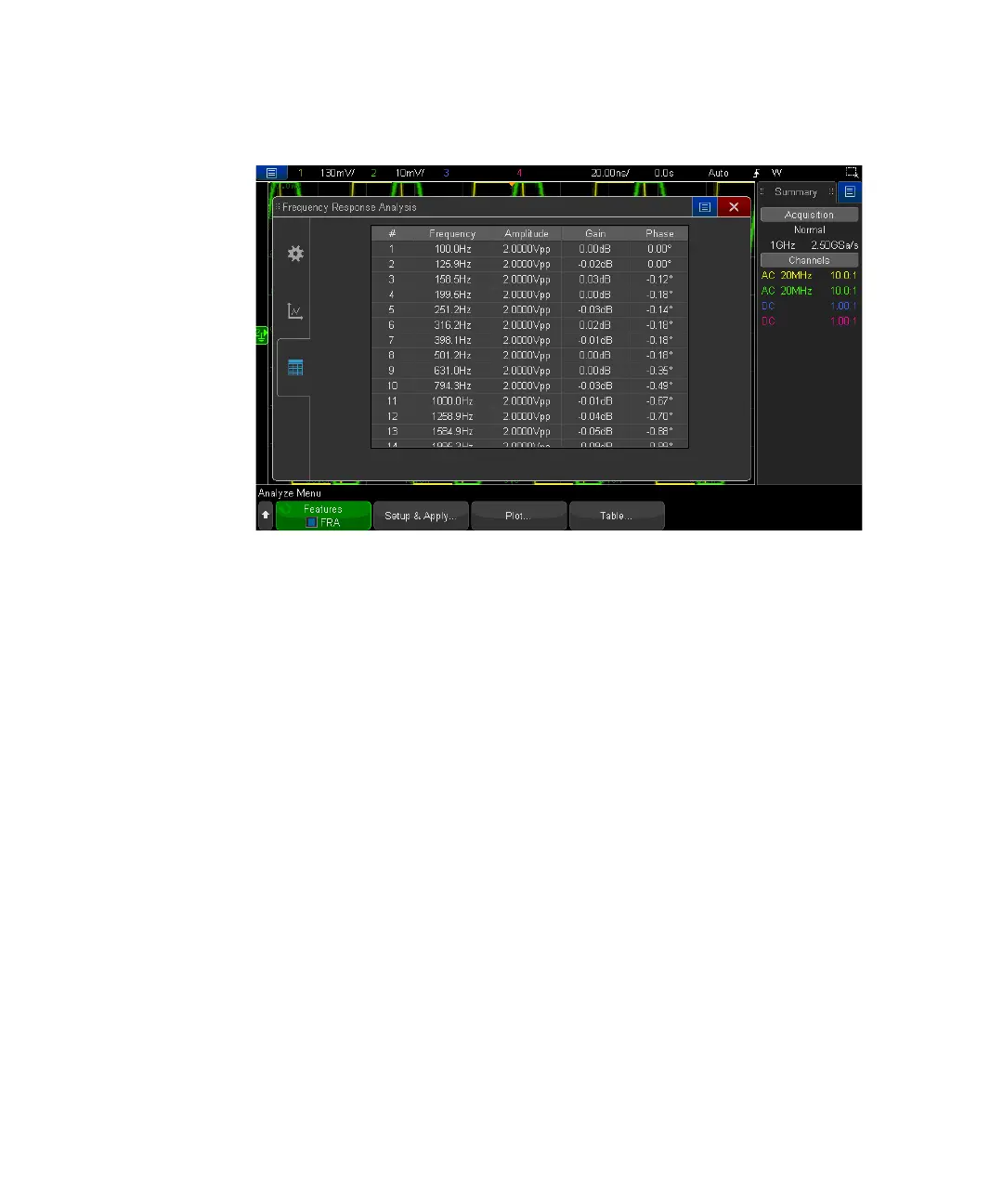

The table shows: the data point number, the frequency, the waveform generator
output amplitude, the measured gain, and the measured phase. You can scroll the
data.
You can save (or e-mail) the analysis results by choosing Main Menu > File >
Save Menu, clicking Format, and selecting the Frequency Response Analysis data (*.csv)
option.
