Keysight E36300 Series Service Guide

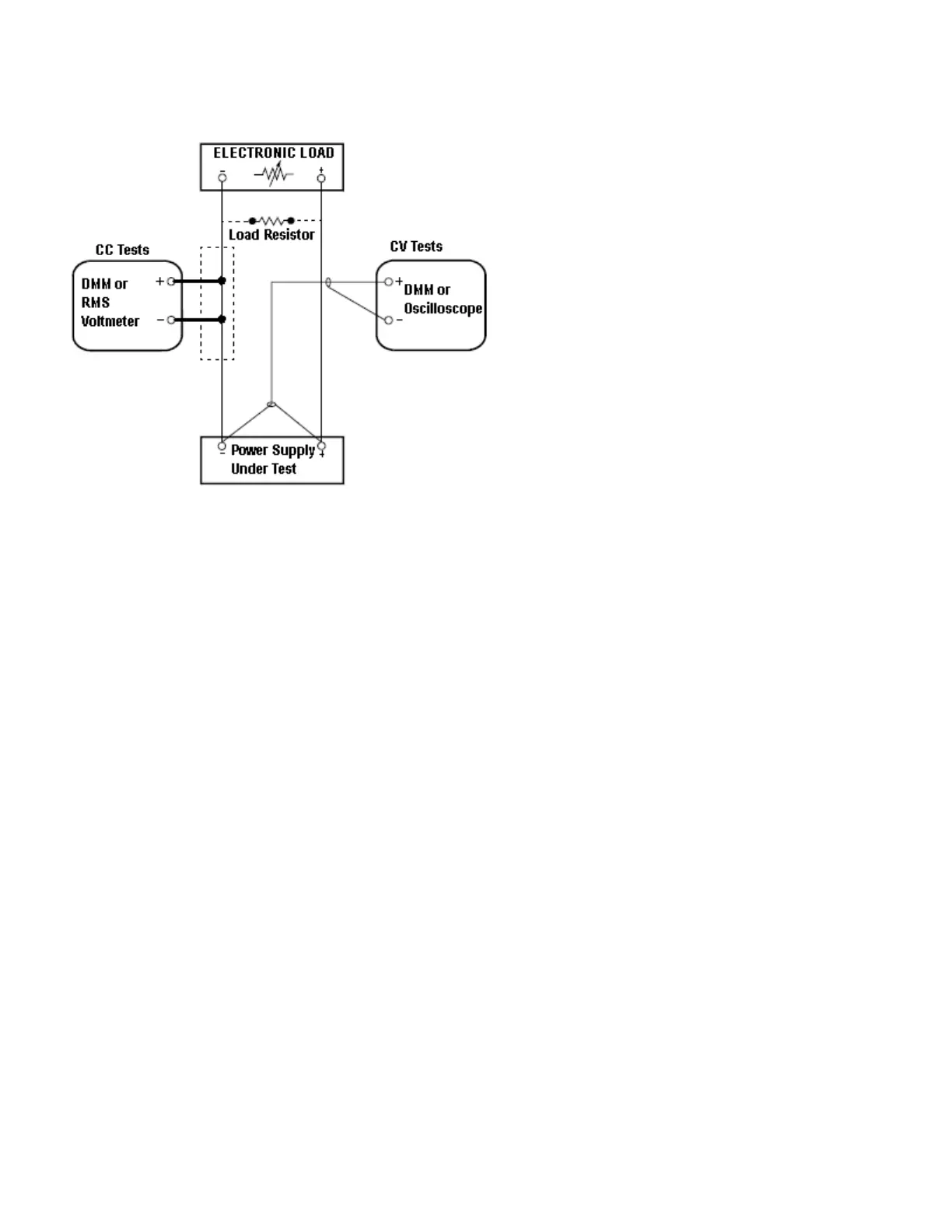

Setup for most tests
This setup is used for most tests and it requires the DMM, electronic load, and power supply being verified. Some
wire is also required for connection between instruments. A LAN or USB cable is needed for readback data. The
DMM measures the power supply output, and the electronic load draws current from the power supply. The
accuracy of the current monitoring resistor must be 0.01% or better, which should include any self-heating effects.
24
