Keysight E36300 Series Service Guide

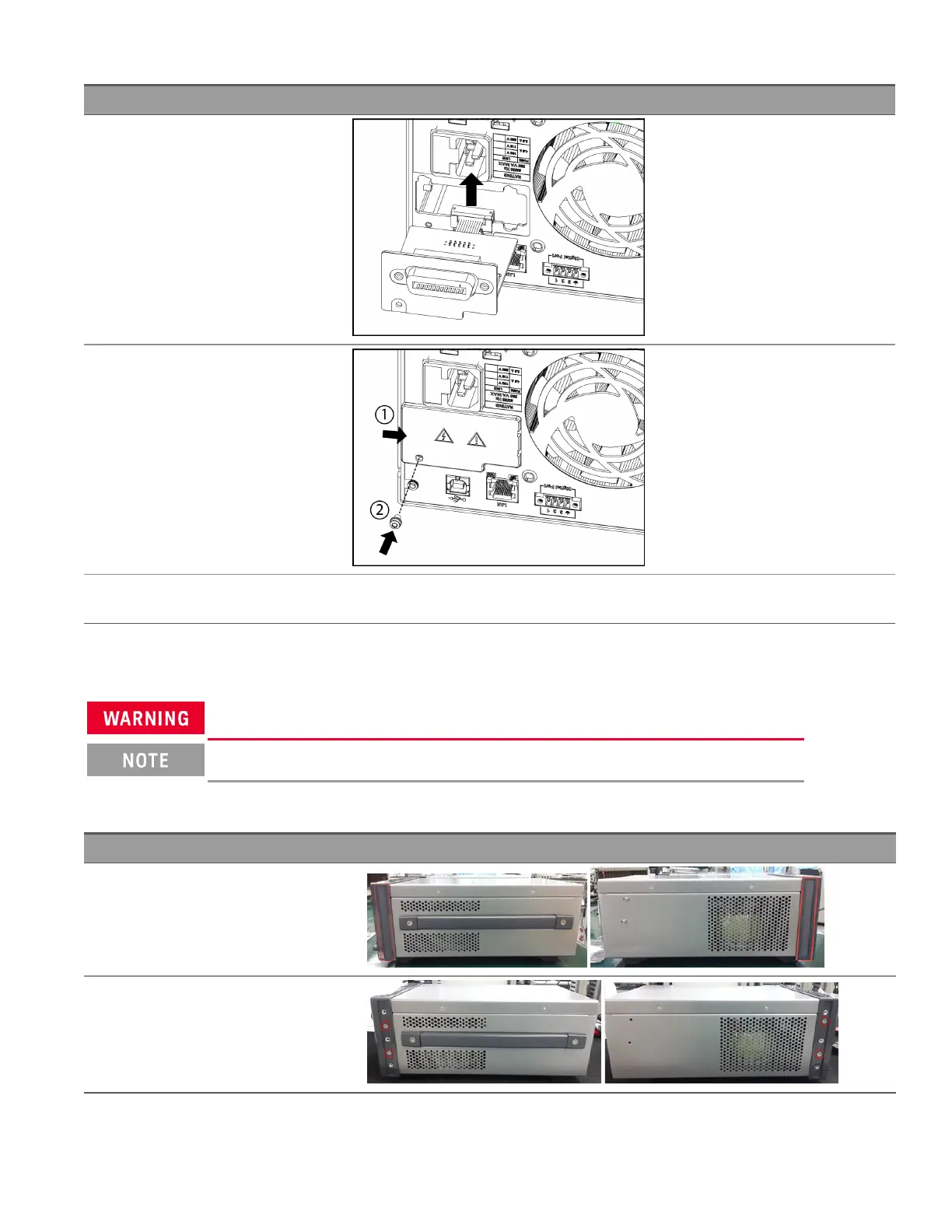

Steps Instructions Visual
2. Pull the cable from the connector.
3. Slide the cover plate to the right so
that it is flushed against the
instrument's sheet metal. Use the
screw that was removed earlier to
secure the cover plate in place.
4. To install the GPIB module, perform
the above steps in reverse order.
Removing/Installing the front panel binding post
Only qualified, service-trained personnel should remove and install the front panel binding post.
The GPIB module must be removed before you proceed to remove the front panel binding post.
Steps Instructions Visual
1. Remove the side trims from the front
panel.
2. Remove four Pozi screws from the
front panel using a PZ1 driver.
Keysight E36300 Series Service Guide 17
