Keysight E36300 Series Service Guide

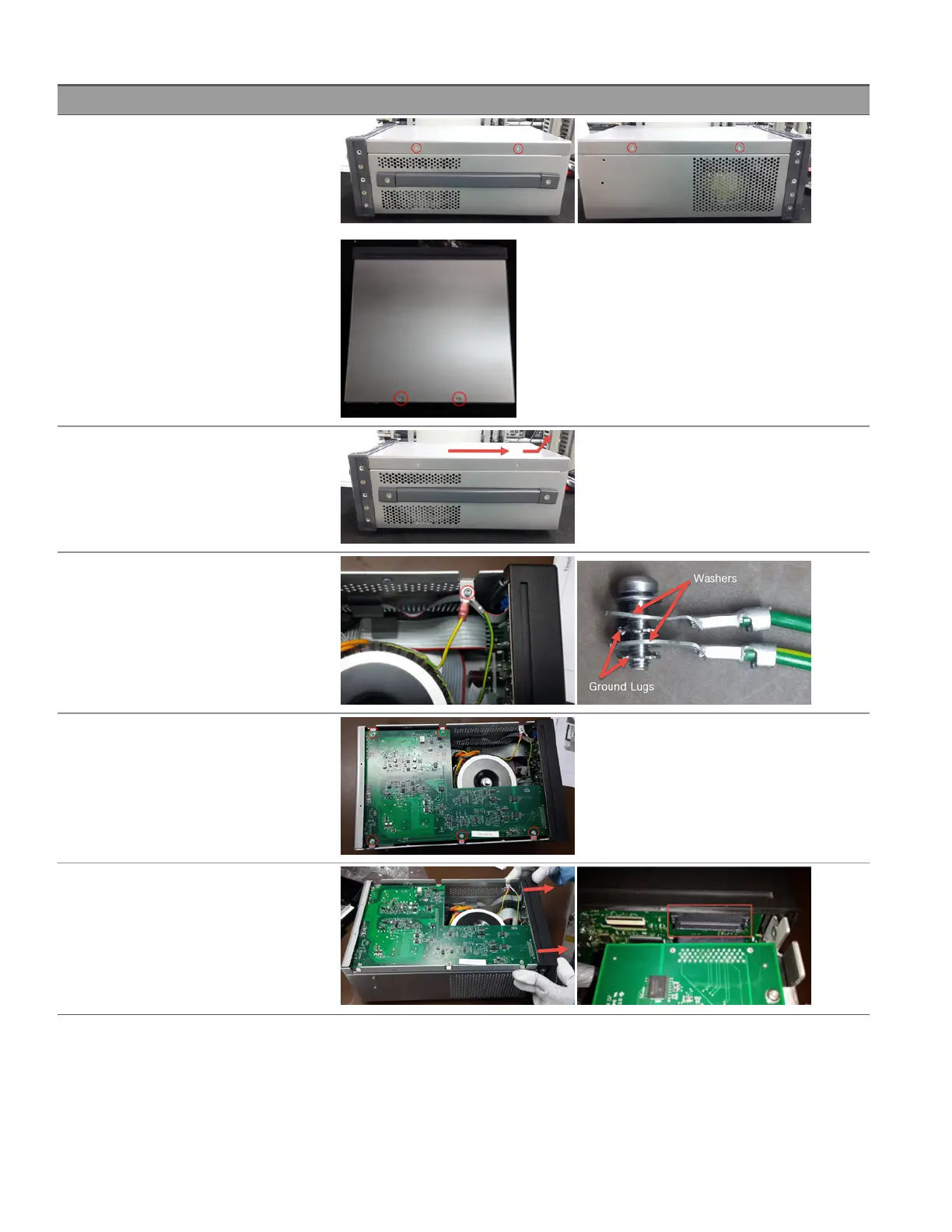

Steps Instructions Visual
3. Remove six screws from the top panel
using a T10 driver.
4. Remove the top panel: Slide the top
panel towards the rear and lift it up.
5. Remove the screw that holds two
ground lugs to the chassis.
For reassembly, take note on the
grounds lugs and washers
arrangement.
6. Remove five screws from the 25 V
main PCA board.
7. Gently pull out the front panel
assembly from the chassis and remove
all the board-to-board connectors.
