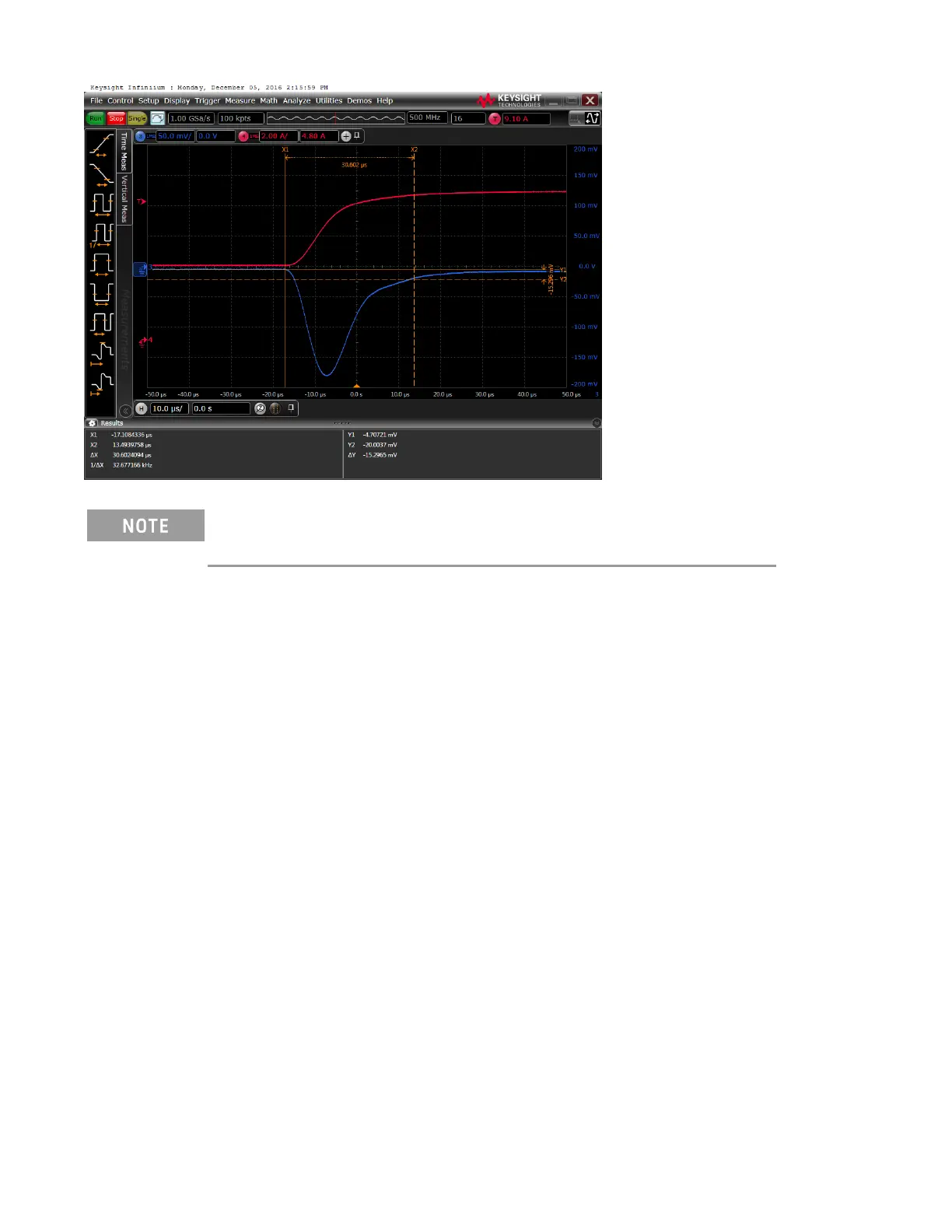

The oscilloscope cursors X1 and X2 represent t1 and t2.
The oscilloscope red trace and blue trace represent output current and output voltage trace.
8.
Transient response specification is met when the voltage recovers within 50 μs.
