14 Keysight E4991B Impedance Analyzer
Installation
Protection Against Electrostatic Discharge (ESD)
1-
Protection Against Electrostatic Discharge (ESD)
Set up a static-safe work-station to protect the electronic components from
the damage by the electrostatic discharge (ESD) as shown in Figure 1-1.

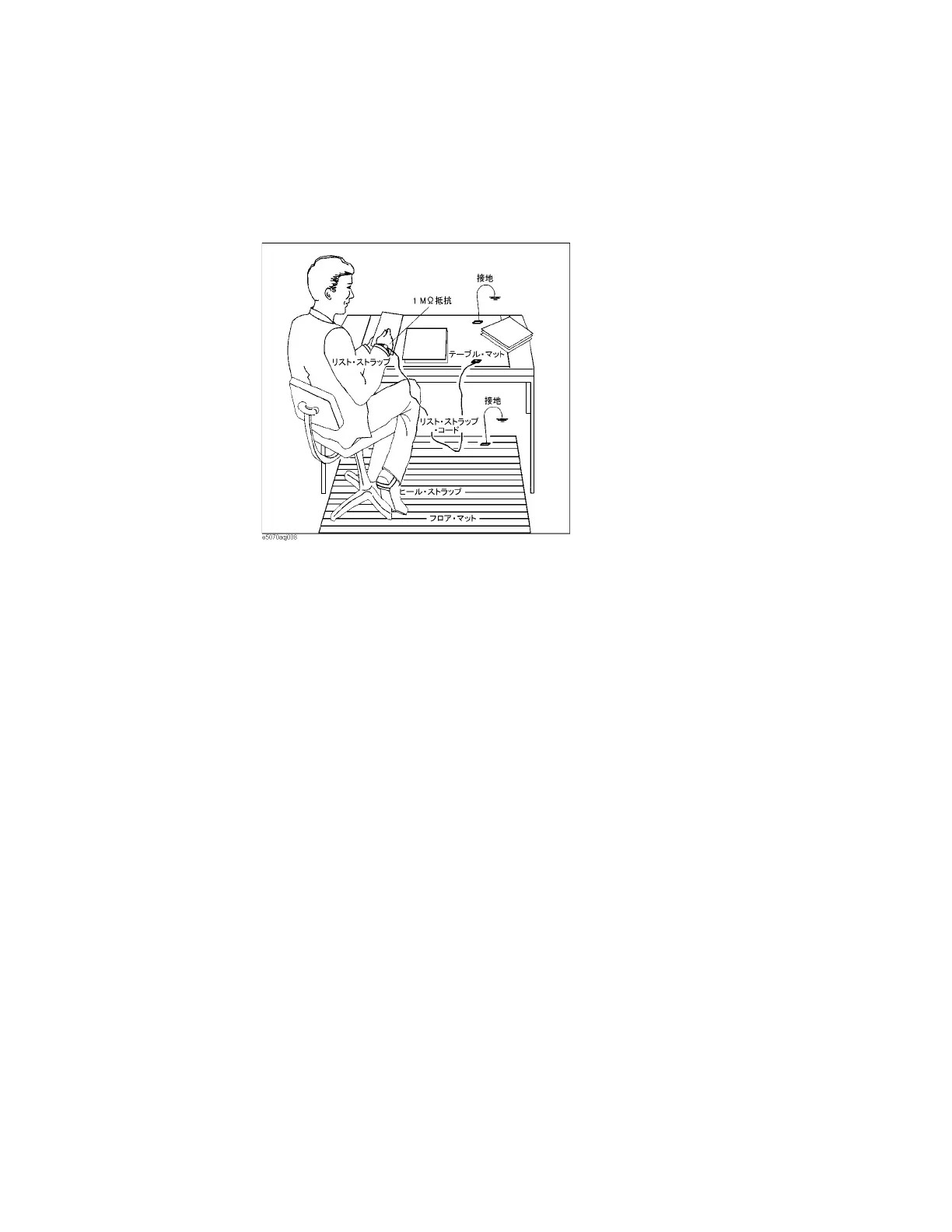

Figure 1-1 Example of the static-safe work station
Ensuring Adequate Free Space around Analyzer for Immediate
Disconnection of Power Cable in Case of Emergency
As described in “Disconnection from Supply Source” on page 22, the power
supply is disconnected by removing the power cable’s connector plug from
ei
ther the AC outlet or the E4991B unit. When installing the E4991B, ensure
that there is sufficient free space around the unit to permit quick disconnection
of the plug (from AC outlet or E4991B unit) in case of emergency.
