Connecting Accessories and a LAN Cable to the Oscilloscope
1 Plug the mouse and keyboard into the USB host ports. Four host ports are on
the side panel, with two more on the front panel.
2 If you want to connect to a Local Area Network, connect your LAN cable to the
RJ-45 connector on the side panel. Connect the other end to an open LAN
port.

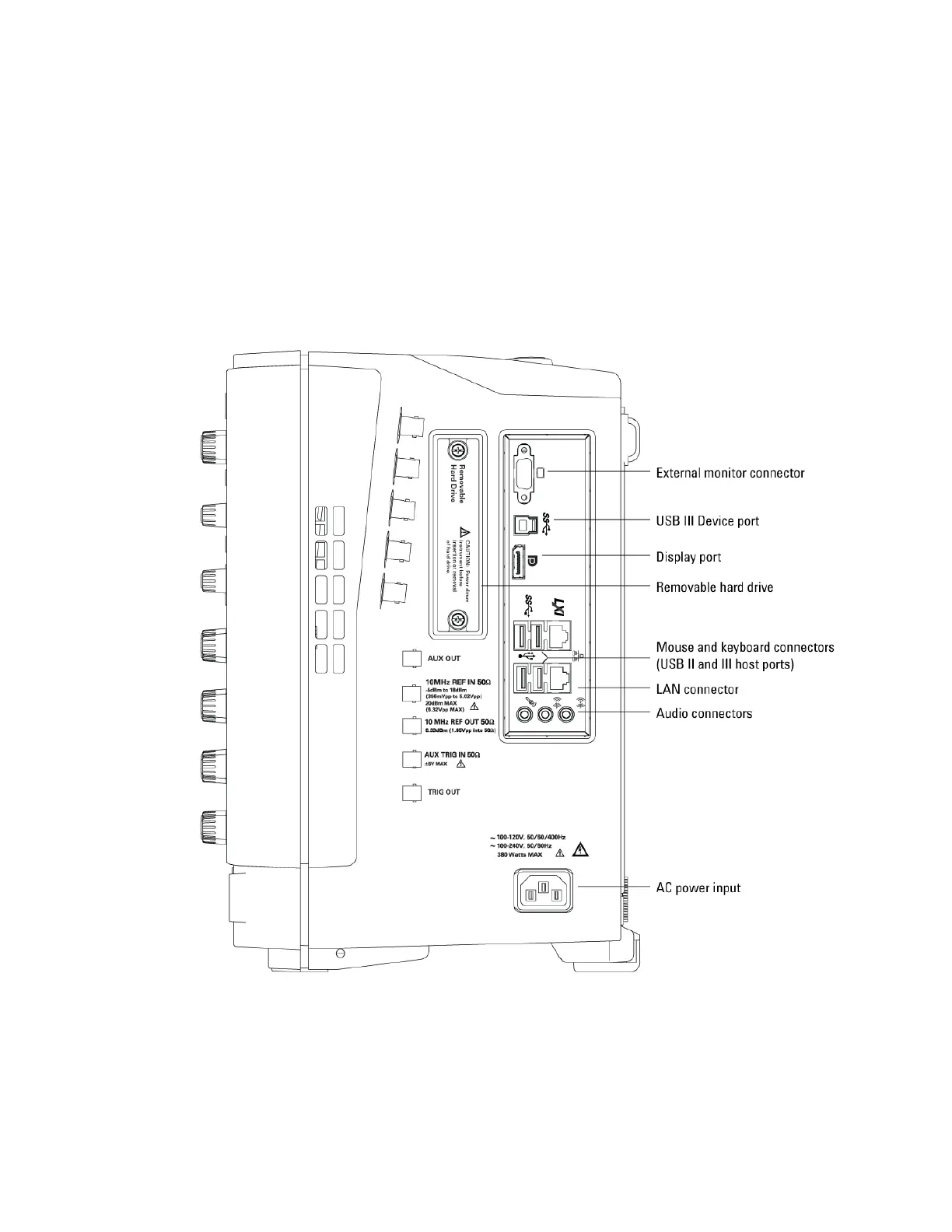

Figure 2 Side panel
