12 | Keysight | N9038A MXE EMI Receiver Self-Guided Demonstration - Demo Guide

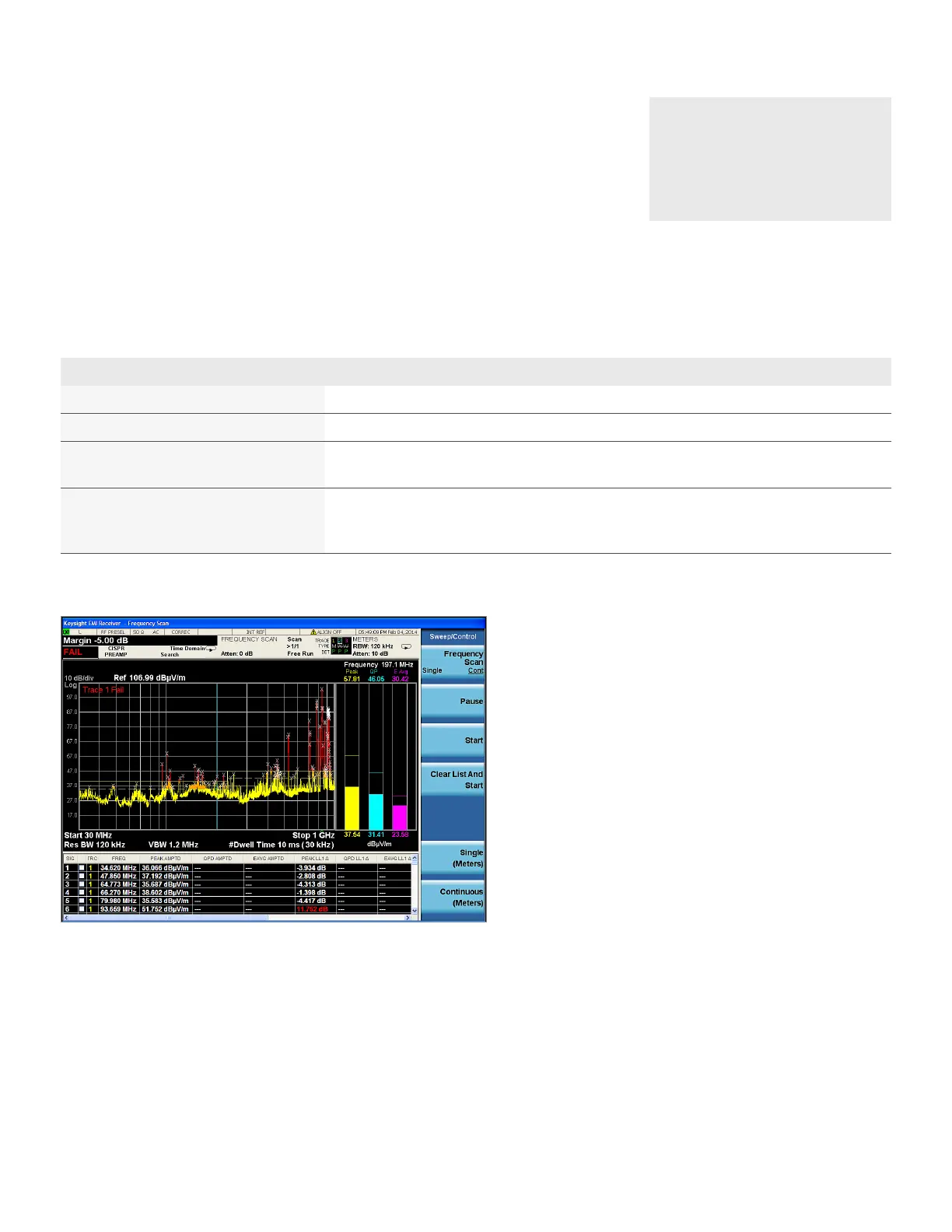

Figure 11. Suspect list collected using the search command
Step 2— Demo 1 Instructions for MXE Keystrokes
Stop the scan [Sweep/Control], {Stop}
Set scan sequence to search only [Meas Setup], {Scan Sequence}, {Search Only}
Set search criteria to peak criteria and limits
[Meas Setup], {More 1 of 3}, {Limits}, {Search Criteria}, {Peak Criteria and Limits}
This is the default setting
Start a search [Sweep/Control], {Start} or [Restart]
{Clear List And Start} will clear the signal list before a new search, otherwise, new signals will be
appended to the signal list without clearing older ones
Step 2: Data reduction
Suspect frequencies that are close to or greater than specified limits warrant further
review and final measurement. Sometimes the suspect signals are searched in subranges
based on a certain standard requirement. You might also want to add or delete signals
from the suspect list manually. This process is called data reduction.
Demo 1: Search signals above limit line
In this demonstration, we will set {Scan Sequence} to {Search Only} and {Search Criteria}
to {Peak Criteria and Limits} for collecting signals over limit. To simplify the following
demonstration, we will turn off Trace 2 and Limit 2 set in the last demonstration.
Did you know?
The MXE can search just the top
number of peaks by setting [Meas
Setup], {More 1 of 3}, {Limits},
{Search criteria}, {# of Peaks}.
