18 | Keysight | N9038A MXE EMI Receiver Self-Guided Demonstration - Demo Guide
Step 4—Demo 1 Instructions for MXE Keystrokes
Set scan sequence to (Re)measure [Meas Setup], {Scan Sequence}, {(Re)measure}, {(Re)measure}, {Current Signal}
{Current Signal} will make a final measurement on the signal you have currently selected from the list
{All Signals} will make final measurements for all signals in the list
Set detectors, dwell time, and limits for final
measurement
Note: For MIL-STD measurements, turn off
Detectors 2 and 3 and keep Detector 1 as
default
[Meas Setup], {Detectors (Measure)}, {Select Detector}, {Detector 2}, {Dwell Time}, [1], {s}, {Detector},
[Meas Setup], {Detectors (Measure)}, {Select Detector}, {Detector 3}, {Dwell Time}, [1], {s}, {Detector
If the message box, “changing limit or detector will discard the delta values” appears, press [Enter] to
confirm
Set limits for final measurement Use Limit 1 as in Demo 4
Set auto range and auto preamp for final
measurement
[Meas Setup], {More 1 of 3}, {Autorange}, {Autorange On}, {Auto Preamp On}
Start final measurement
See final measurement window in Figure 16
[Sweep/Control], {Start} or [Restart]

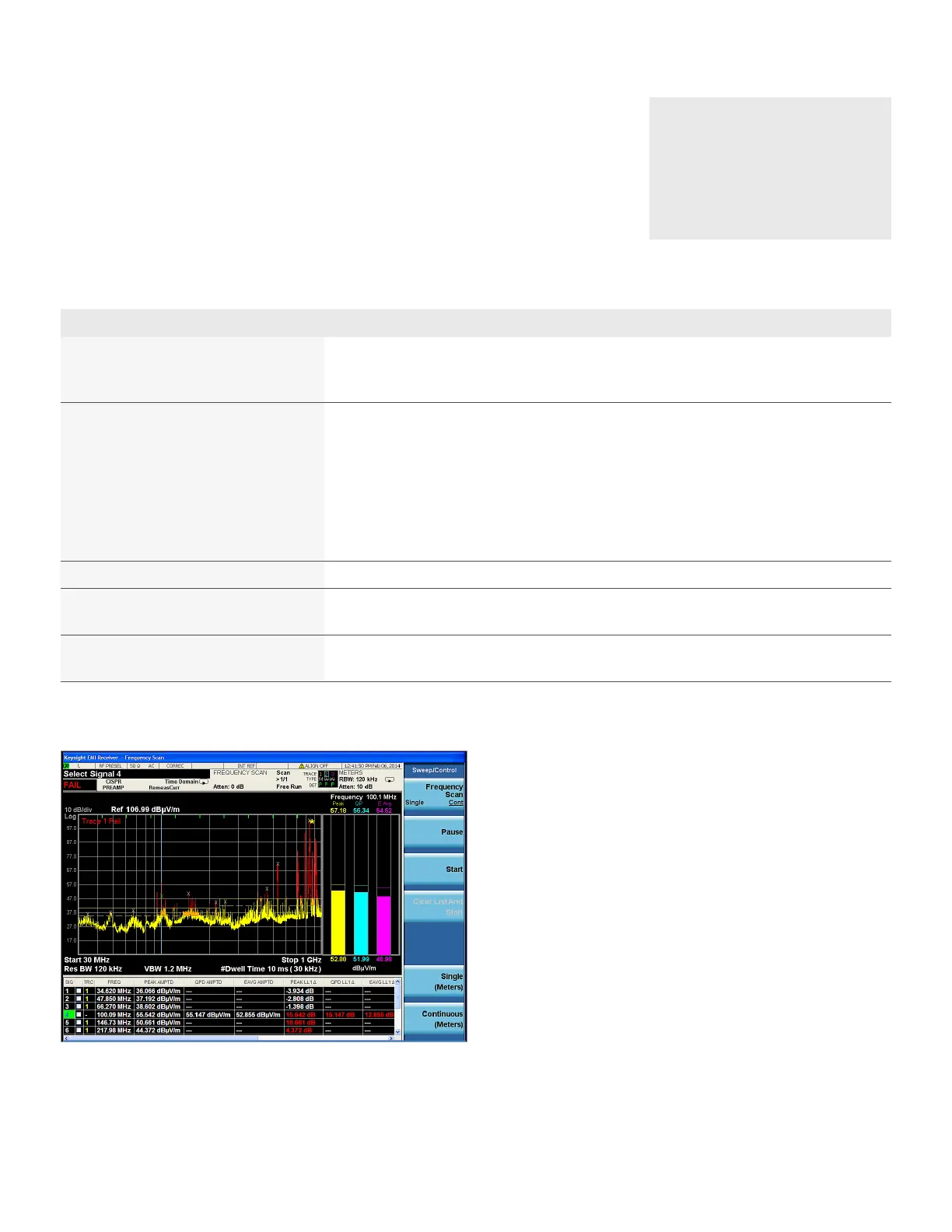

Figure 16. Final measurement
Step 4: Final measurement
Demo 1: Make a final measurement
In this demonstration, we will conduct final measurements with peak, quasi-peak, and
EMI average detectors for all of the signals in the list. We will set different limits for
Detector 1 and 2, as well as turn auto range and auto preamp on for the measurement.
Did you know?
The MXE automatically conducts
the scan, search, and final
measurement sequentially with
[Meas Setup], {Scan Sequence},
{Scan, Search, and Measure}.
