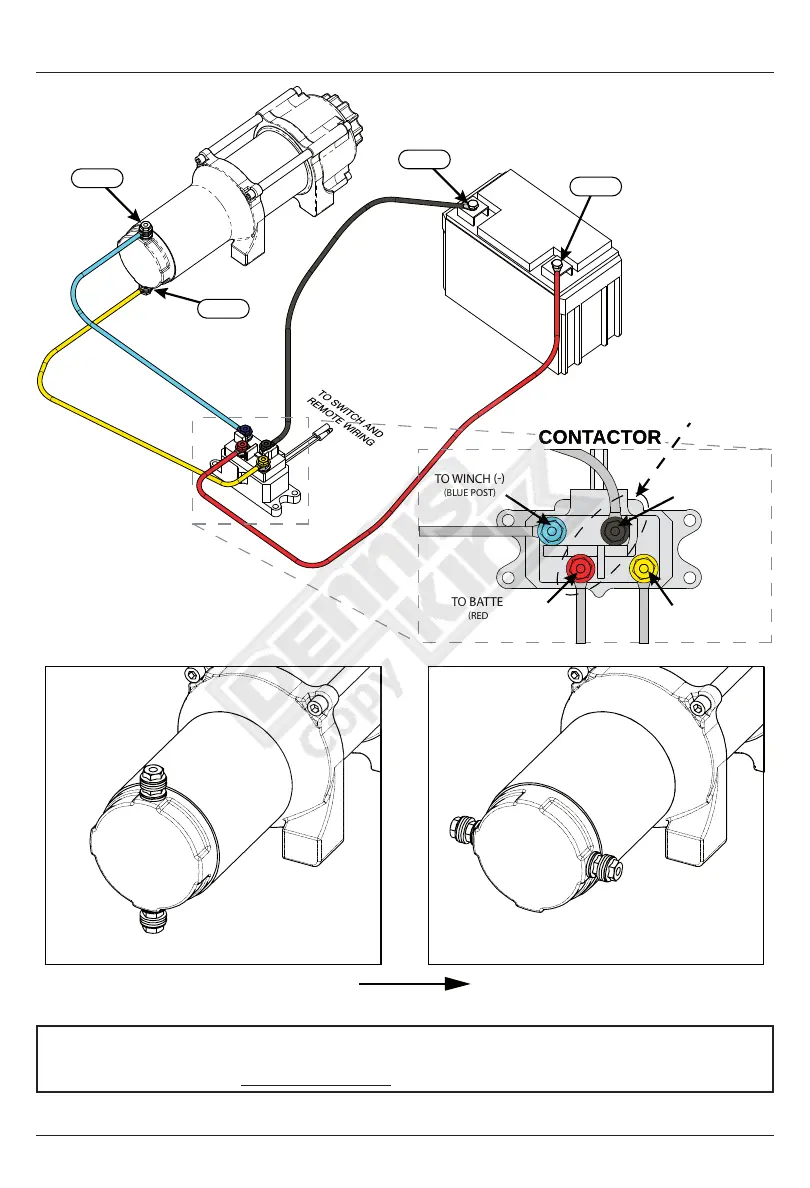

KFI SE35 - WinchWiringDiagram

8
SE35
LEADS AT DEFAULT POSITION LEADS ROTATED 90°
With some applications the motor leads may need to be rotated to avoid interference with other
components. If rotation is required please give us a call at 1-877-346-2050 for instructions or visit our
website at www.kproducts.com and look in the Instructions section.
BATTERY
BLUE
YELLOW
RED
BLACK
NEG(-)
POS(+)
NEG(-)
POS(+)
TO WINCH (-)
(BLUE POST)
TO BATTERY (-)
(BLACK POST)
TO BATTERY (+)
(RED POST)
TO WINCH (+)
(YELLOW POST)
These two posts must
be wired to the battery!
Installation
Winch Wiring Diagram
