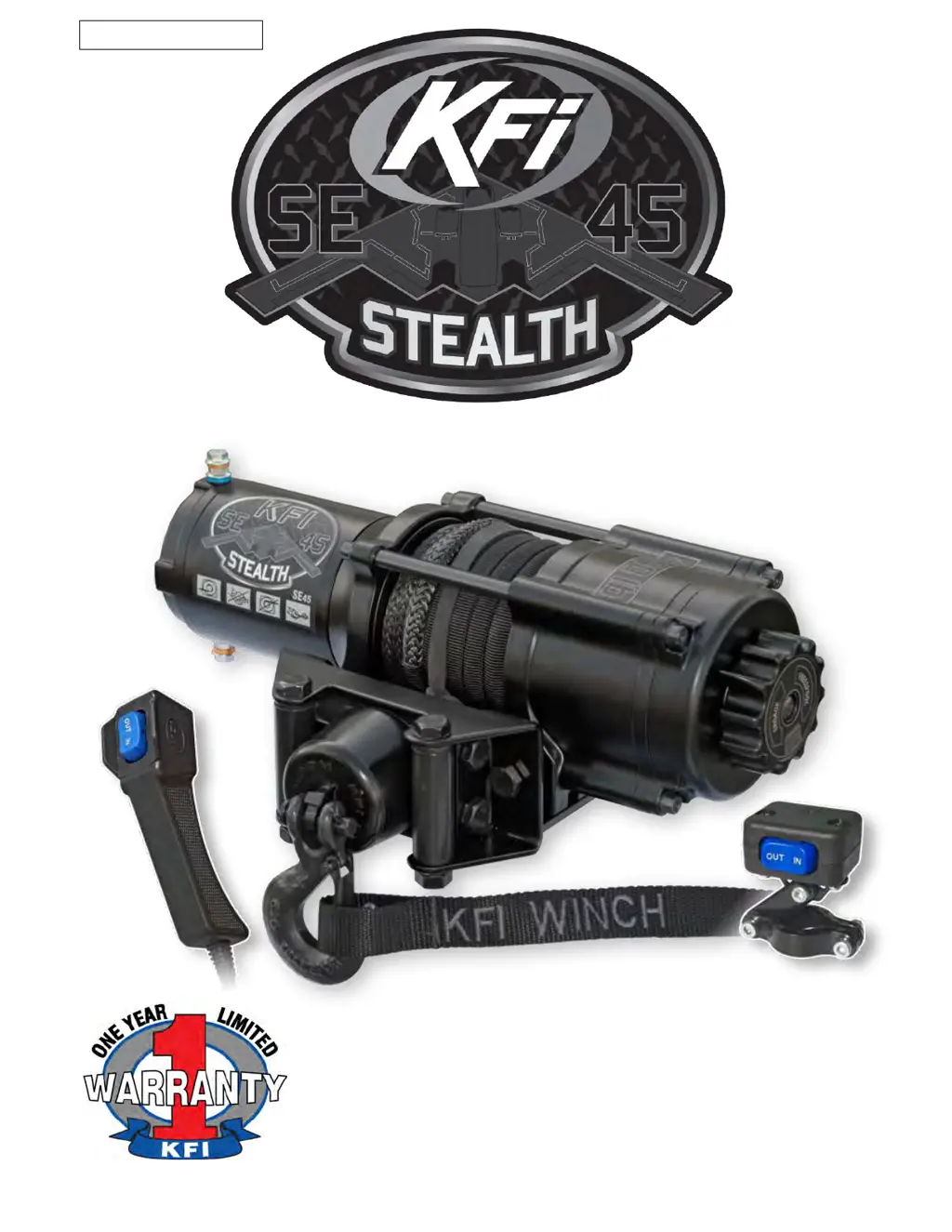

Model #: SE45w
Owner’s Manual and Operating Instructions
4500 lb. WIDE
UTV WINCH
Revision Date: 2016-07-19

Table of Contents

Questions and Answers

  • Q
    qbennettAug 4, 2025
    Why does my KFI SE45w Winches motor run slowly or without normal power?
    • R
      Rachael ArnoldAug 4, 2025
      If your KFI Winches motor runs slowly, or lacks its usual power, the issue could stem from insufficient current or voltage. Try recharging the battery, or run the winch while the vehicle's motor is running to ensure a strong battery charge. Also, check for loose or corroded battery cable connections; clean, tighten, or replace them as needed. Finally, inspect the brushes for wear and replace them if they are worn.
  • M
    matthew09Aug 10, 2025
    What to do if KFI SE45w motor runs in one direction only?
    • M
      Michelle SanchezAug 10, 2025
      If your KFI Winches motor runs in only one direction, there could be a few potential causes. First, the contactor might be defective or stuck; try tapping it to loosen the contacts. Check all connections for defective wire crimps or bad connections. Also, the leads might be overtightened, leading to broken internal wire connections or a broken isolator; in this case, pull off the end-cap and check the terminal solder joint and plastic isolator, and consider getting a replacement end-cap. Finally, the switch assembly could be defective, requiring replacement.
  • T
    Thomas CollinsAug 16, 2025
    Why is my KFI SE45w Winches motor overheating?
    • E
      erikrosalesAug 16, 2025
      If the motor of your KFI Winches is overheating, it might be due to the winch running for too long. Allow the winch to cool down periodically.
  • C
    Chelsea LarsonAug 22, 2025
    What to do if KFI Winches motor runs but cable drum does not turn?
    • W
      wlopezAug 22, 2025
      If the motor of your KFI Winches runs but the cable drum doesn't turn, make sure the clutch is engaged. Rotate the clutch cap to the 'Engage' position.
  • C
    Christina GonzalezOct 28, 2025
    What to do if my KFI SE45w Winches motor does not turn on?
    • P
      patrickriveraOct 28, 2025
      If your KFI Winches motor isn't turning on, several factors could be at play. First, ensure the Switch Assembly is fully inserted into the connector. Next, check for loose battery cable connections and tighten any loose nuts. If the contactor is malfunctioning, try tapping it to loosen the contacts or apply 12 volts to the coil terminals directly to check for proper activation. Inspect the Switch Assembly for defects and replace if necessary. Examine the motor leads for broken wire connections or a damaged isolator, and consider replacing the End-Cap. Check for voltage at the armature port with the switch pressed, and if voltage is present, the motor may need replacement. Lastly, if water has entered the motor, allow it to drain and dry, then run it in short bursts without load until it's ...

Summary

Introduction

Accessories

Information on accessories manufactured and sold by Kappers Fabricating Inc.

This Booklet

Notes on the manual's accuracy, completeness, and right to change.

Manual Conventions

DANGER

Indicates an imminently hazardous situation that will result in death or serious injury if not avoided.

WARNING

Indicates a potentially hazardous situation that could result in death or serious injury if not avoided.

CAUTION

Indicates a potentially hazardous situation that may result in minor or moderate injury if not avoided.

Safety Rules

General Safety Warnings

Critical safety guidelines including no lifting, safe distance, and avoiding shock loads.

Controls and Features

Winch Components

Detailed list and description of winch parts like motor, drum, clutch, and fairlead.

Installation

Step 1-Mount the Winch

Instructions for mounting the winch and fairlead, including safety and torque specifications.

Step 2-Mount the Contactor

Guidance on selecting and locating the contactor, with mounting hole drilling advice.

Step 3-Mount the Mini-Rocker Switch

Steps for mounting the rocker switch on handlebars or other locations, including wiring routing.

Step 4-Mount the Hand Remote Socket (Optional)

Instructions for locating, drilling, and mounting the optional hand remote socket.

Step 5-Wiring the Winch

Detailed steps for connecting winch motor, contactor, switch, and battery leads.

Winch Wiring Diagram

Visual guide showing electrical connections for the winch motor and battery.

Switch Wiring Diagram

Diagram illustrating the wiring connections for the handlebar switch and remote socket.

Cable Hook Stopper Installation and Use

Instructions for installing and using the cable hook stopper for safety.

Operation

General Tips for Safe Operation

Essential advice for safe winch use, including capacity, engine running, and inspection.

Self Recovery

Guidance on finding a suitable anchor point for self-recovery operations.

Winching Techniques A-Z

Comprehensive alphabetical guide to winching procedures and safety precautions.

Maintenance

Lubrication

Information on factory lubrication and when additional lubrication might be needed.

Cable Assembly Replacement

Step-by-step instructions for replacing the winch cable assembly.

SE45 w Specifications

Performance Specifications

Key performance metrics including rated pull, gear ratio, motor, drum size, and cable specs.

Line Speed and Current Data

Table detailing line speed and motor current at various pull loads.

Line Pull and Cable Capacity Data

Table showing cable capacity based on layers of cable on the drum.

Winch Diagram

Exploded view diagram showing all components of the SE45w winch with part numbers.

Winch Parts List

Troubleshooting

PLOWING ALERT

Critical safety warning regarding using the winch to lift a plow and potential warranty voiding.

Warranty

Warranty Qualifications

Requirements for registering and validating the warranty, including proof of purchase.

Repair;Replacement Warranty

Details the one-year limited warranty for mechanical and electrical components.

Warranty Exclusions

Lists items and conditions not covered by the warranty, such as normal wear and misuse.

Contact Information

Provides addresses, phone numbers, and email for KFI customer and technical service.

Agreement

Purchaser acknowledges age, risks, and assumes responsibility for product use.

Synthetic Cable

Synthetic Winch Cable Inspection

Guidelines for inspecting synthetic cable for wear and damage to ensure safety.

Prolonging Cable Life

Recommendations for maintaining synthetic cable, including abrasion prevention and cleaning.

KFI SE45w Specifications
