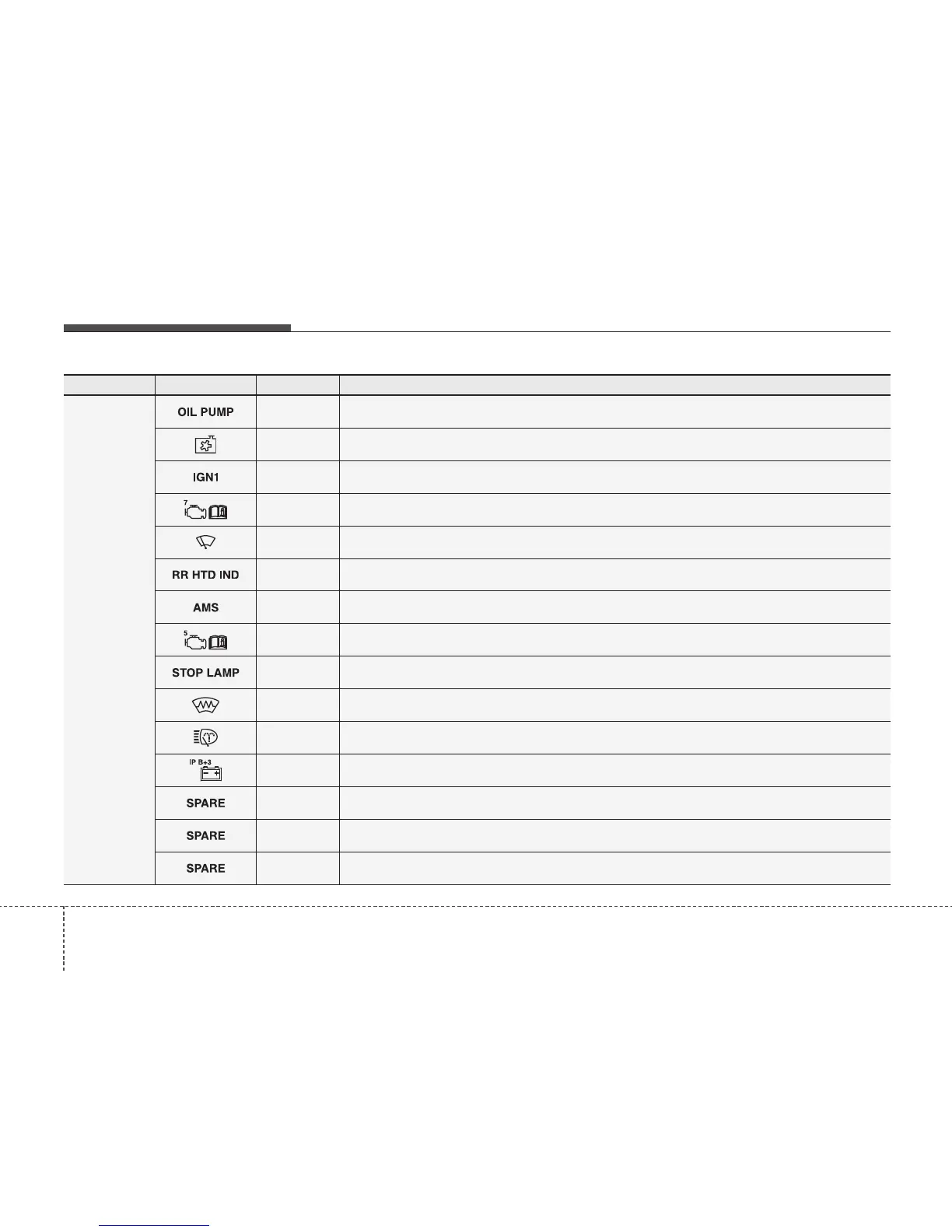

Symbol Fuse rating Protected Component
FUSE
50A Oil Pump Inverter (With ISG & A/T)
40A RLY.3 (C/FAN (HI) Relay), RLY.4 (C/FAN (LO) Relay)
40A With Smart Key - Fuse & Relay Box (RLY.1 / RLY.2), W/O Smart Key - Ignition Switch
40A EMS Box (Fuse - F36 / F37 / F38 / F39)
10A PCM (G4KD / G4KE)
10A A/C Control Module
10A Battery Sensor
20A PCM (A/T)
15A RLY.10 (HAC Relay), Stop Lamp Relay
20A RLY.7 (Deicer Relay)
20A RLY.2 (Head Lamp Washer Relay)
50A I/P Junction Box (Fuse - F33 / F34 / F37(Power Connector), IPS 1 / IPS 2 / IPS 3, ARISU1)
20A -
15A -
10A -
