Maintenance

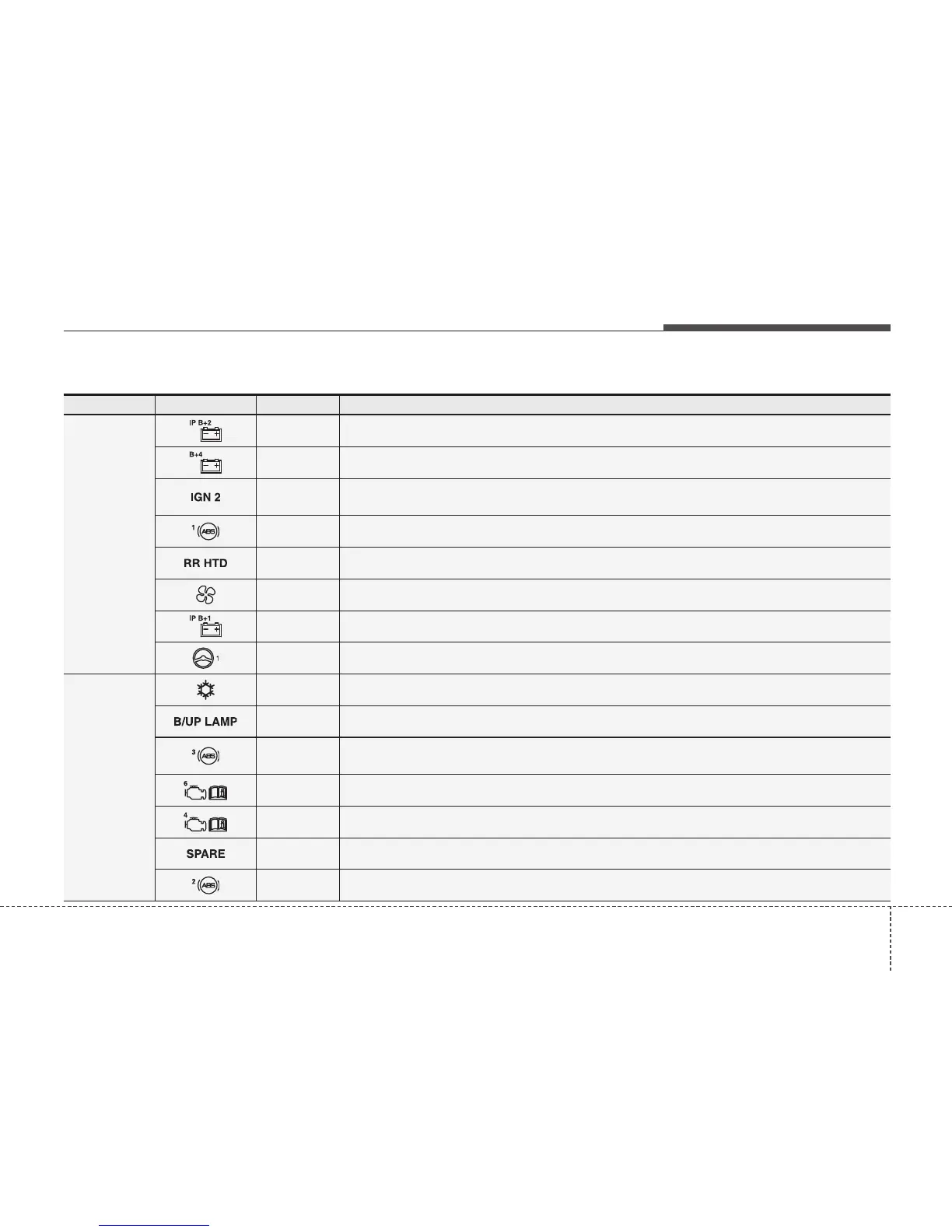

Engine compartment main fuse panel (for petrol engine)
Symbol Fuse rating Protected Component
MULTI FUSE
60A I/P Junction Box (Fuse - F20 / F21 / F26 / F27 / F32, IPS 4 / IPS 5 / IPS 6, ARISU 2)
60A Fuse & Relay Box (Fuse - F1 / F2)
40A
RLY.5 (Start Relay), With Smart Key - Fuse & Relay Box (RLY.3),
W/O Smart Key - Ignition Switch
40A ABS Control Module, ESP Control Module
40A RLY.1 (RR HTD Relay)
40A RLY.14 (Blower Relay)
60A I/P Junction Box (Fuse - F1 / F2 / F7 / F13 / F19 / F25 / F31 / F36(Power Connector))
80A EPS Control Module
FUSE
10A A/C Control Module (Auto A/C)
10A Electro Chromic Mirror, BCM, Rear Combination Lamp (IN) LH/RH
10A
RLY.9 (ESS Relay), RLY.10 (HAC Relay), Stop Lamp Switch, ABS Control Module,
ESP Control Module, Multipurpose Check Connector
15A Vehicle Speed Sensor (M/T), Transaxle Range Switch (A/T)
10A PCM
25A -
30A ABS Control Module, ESP Control Module, Multipurpose Check Connector
