Hybrid System Overview Charging the plug-in hybrid vehicle

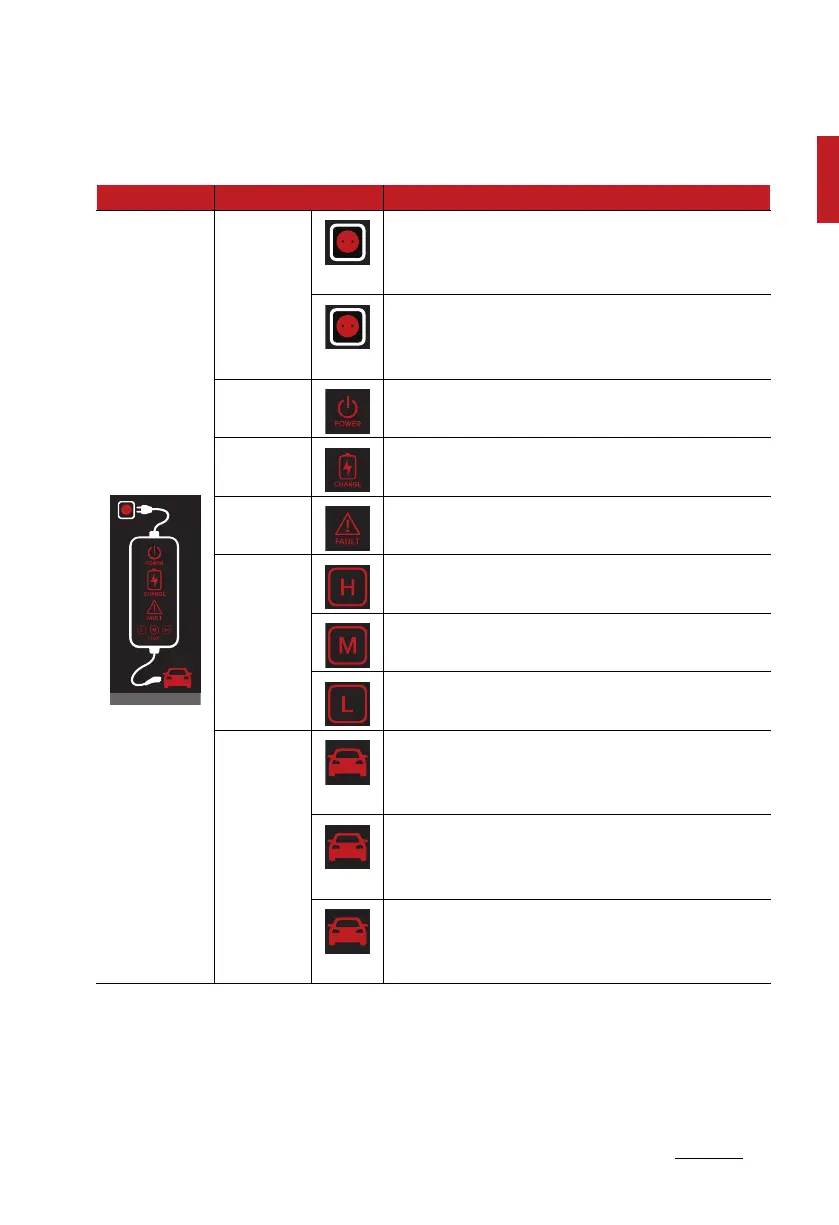

Charging Status Indicator Lamp for Portable Charging Cable
Control Box Indicator Details
PLUG
(Green)
On : Power on
Blink : Plug temperature sensor failure
(Red)
On : Plug high temperature protection
Blink : Plug high temperature warning
POWER On : Power on
CHARGE
Blink : Charging In power saving mode, only the CHARGE
indicator is illuminated.
FAULT Blink : Charging interrupted
CHARGE
LEVEL
Charging current 12A
Charging current 10A
Charging current 8A
VEHICLE
(Green)
Charging connector plugged
(Blue)
Charging
(Red)
Blink : Charging impossible
