Maintenance Light bulbs

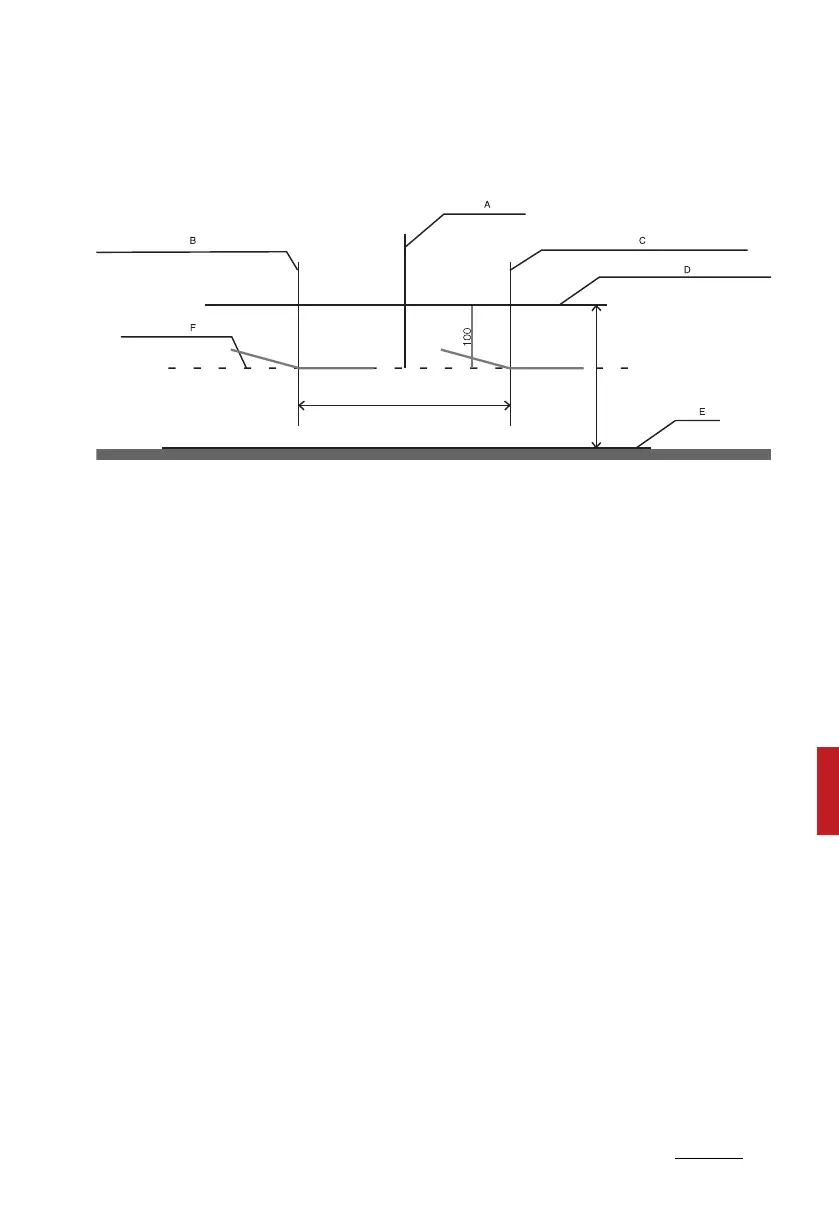

Head lamp low beam (RHD Vehicle)
Based on 10m screen
A: Vehicle axis
B: Vertical line of the left head lamp bulb center
C: Vertical line of the right head lamp bulb center
D: Horizontal line of head lamp bulb center
E: Ground
F: Cut-Off line
1. Turn the low beam on with 1 driver(75kg) aboard.
2. The cut-off line should be projected in the cut-off line shown in the pic
-
ture.
3. First, adjust Cut-off line to be matched with the horizontal line and then
adjust with the vertical line.
4. If head lamp leveling device is equipped, adjust the head lamp leveling
device switch with 0 positions.
