60" FERRON
TM
| 17

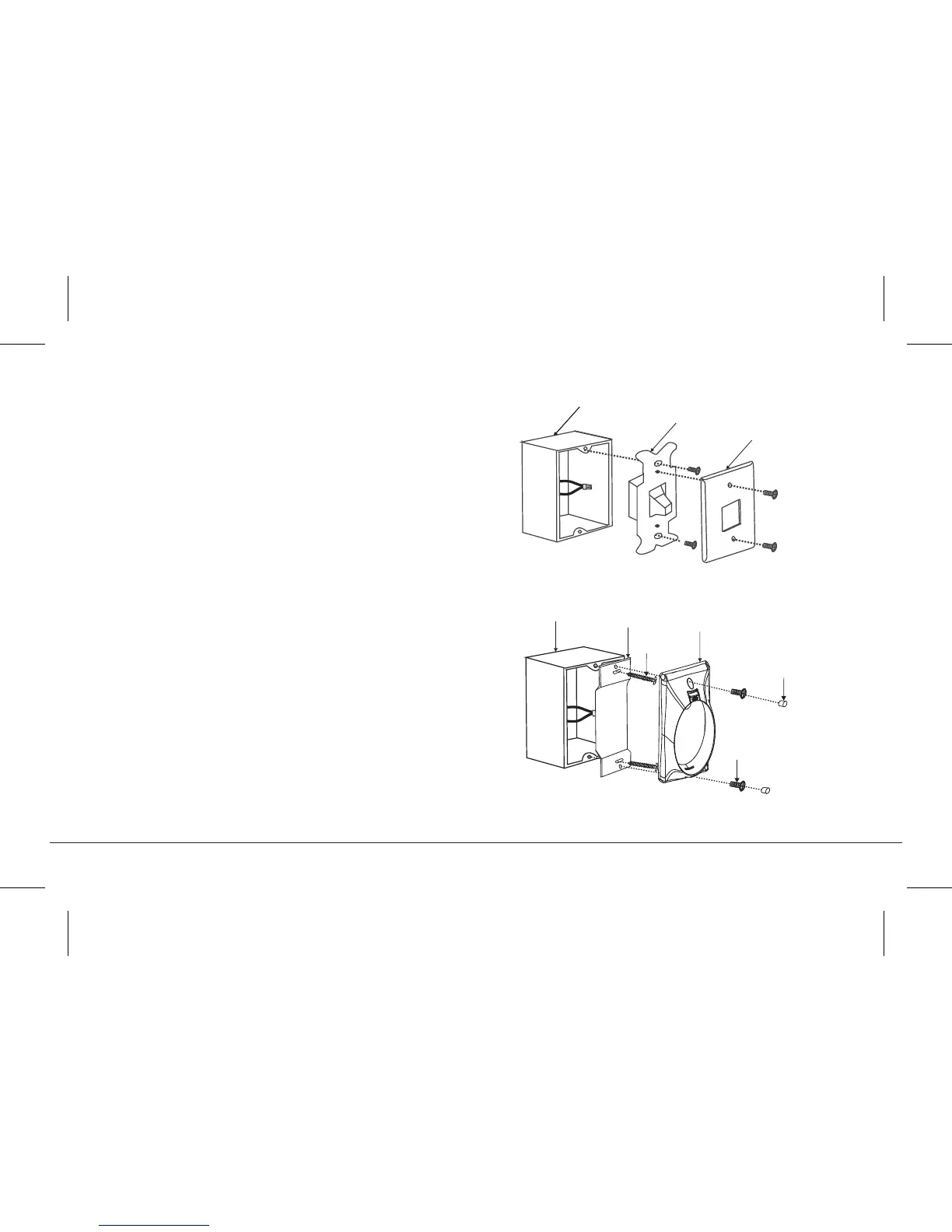

Fig. 24
Fig. 25
INSTALLING THE COOLTOUCH™
CONTROL SYSTEM WALL PLATE
NOTE: All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
Select a location to install your CoolTouch™ Control System
Transmitter. You can replace an existing wall switch or, install the
transmitter on ANY flat surface.
Option 1: Install the control system using an existing wall switch
outlet box. Make sure the electrical power is TURNED OFF at the
main panel before continuing.
NOTE: Switch installation must comply with all local and national
electric code.
Step 1. Remove the existing wall plate and the old switch from the
wall outlet box. Wire nut the BLACK leads (hot) together and push
back inside the outlet box. (Fig. 24)
Step 2. Install the metal plate and CoolTouch™ wall plate to the
existing wall outlet box with 4 screws provided. Then place the two
plastic plugs into the wall plate. (Fig. 25)
Option 2: Install the control system on ANY flat surface.
Select the desired location and use the CoolTouch ™ wall plate to
mark the location for the mounting holes. Use the dry wall anchors
and/or screws provided and finish the installation.
Wall plate
Switch
Outlet box
Screws
Screws
Plastic plugs
CoolTouch™ wall plate
Outlet box
Metal plate
