CONTROL SYSTEM SET-UP
Make sure the power is completely disconnected before you begin this
procedure.
SPECIAL NOTE:
Your new Kichler® Ceiling Fan is State of the Art and employs a High
Eciency DC (direct current) Motor with an advanced CoolTouch™
Remote Control System. The DC Motor uses 70% less energy than a
conventional ceiling fan AC Induction Motor. The DC motor is “Digitally”
controlled and operates dierently than conventional ceiling fans
motors. Please read this portion of the manual completely before
proceeding.
Our CoolTouch™ Control system includes an “Automatic Frequency
Selection” feature. To set the control frequency and program the
control system, follow these steps.
Open the back of the Transmitter (figure 18)
The Frequency Selector is a "Dip Switch Block" inside the Battery
compartment of the Transmitter. (See figure 19) You change
frequencies by arranging the small switches numbered 1 through 4 in an
up or down position. 16 possible frequencies or combinations are
possible.
The fifth switch, marked D and X sets the system for operation with
Incandescent or Fluorescent Lamps. It is essential to set this
switch correctly. If your ceiling fan is equipped with
Incandescent
Lamps
, set this switch to the D Position, for Fluorescent Lamps, set
the switch to the X Position. If these settings are reversed, the lighting
control system will operate erratically and could damage your
ceiling fan.

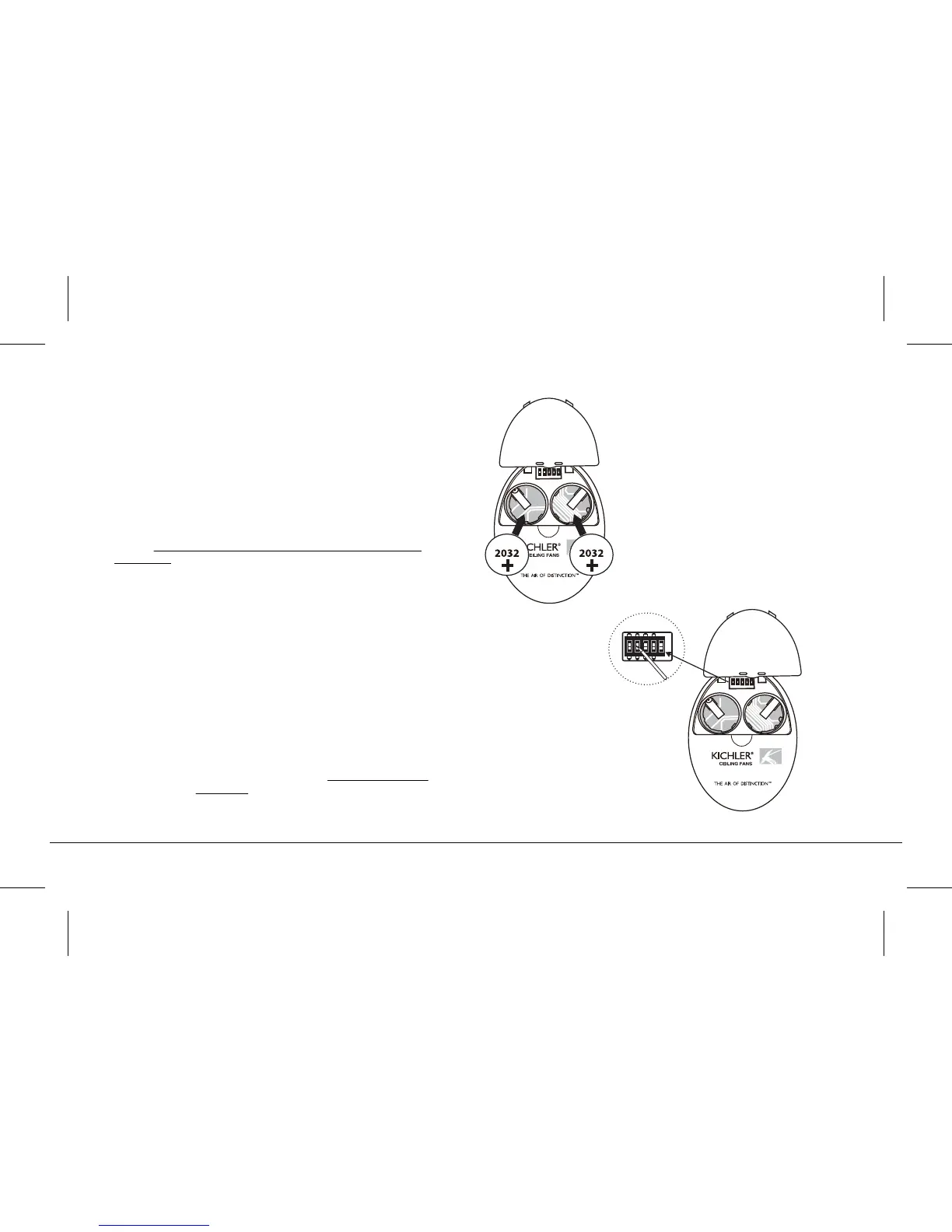

Fig. 17
Fig. 18
TM
TM
ON
1 2 3 4
D
X
ON
Dip switch
