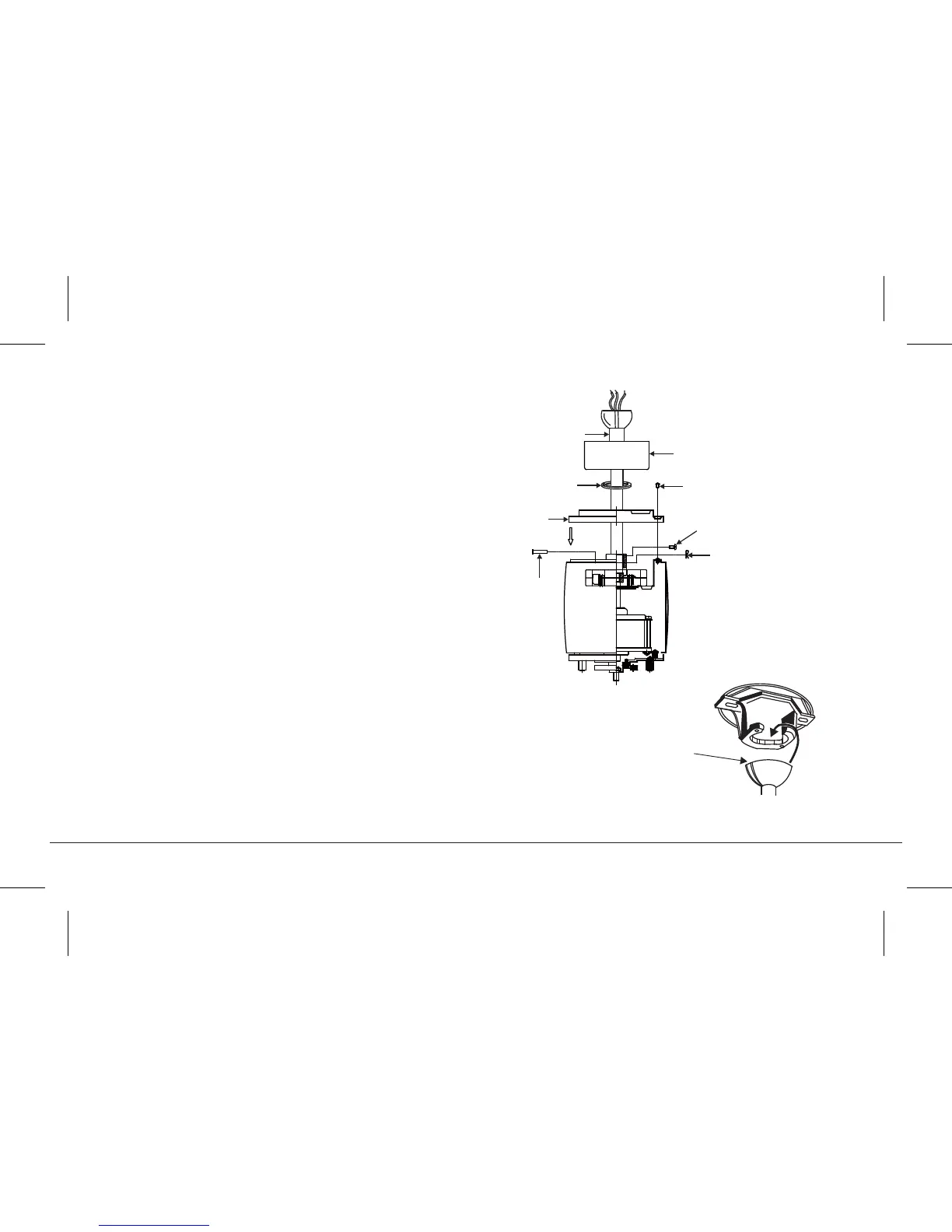

Fig. 10
Fig. 11
HANGING THE FAN (continued)
Step 9. Slip the coupling cover, secure ring , canopy cover and canopy
onto the downrod. (Fig. 10)
Secure the coupling cover to the motor housing using the two screws
previously removed.
Thread the hanger ball onto the downrod, insert the cross pin through
the downrod and tighten. Now tighten the set screw. (Fig. 10)
Step 10. Lift the motor assembly into position and place the hanger ball
into the ceiling mounting bracket.
Rotate the entire assembly until the "Check Tab" has dropped into the
"Registration Slot" and seats firmly. (Fig. 11)
The entire motor assembly should not rotate (left or right) when seated
properly.
WARNING: Failure to reattach the cross pin and seat the "Check Tab"
can cause the fan to fall from the ceiling during operation. Take special
care to make sure this pin is reattached.
Registration slot
Downrod
Canopy
Canopy cover
Set screws
Hitch pin
Retaining clip
Coupling cover
Screws
60" FERRON
TM
| 9
