Kicker BX360.4 - Amplifier Operation Modes; Four Channel Configuration; Bridged Mono Operation; Stereo-and-Mono-Simultaneously (SAMS)

4
BX AMPLIFIERS
+ AMP1 L
– AMP1 R
– AMP2 R
+ AMP2 L

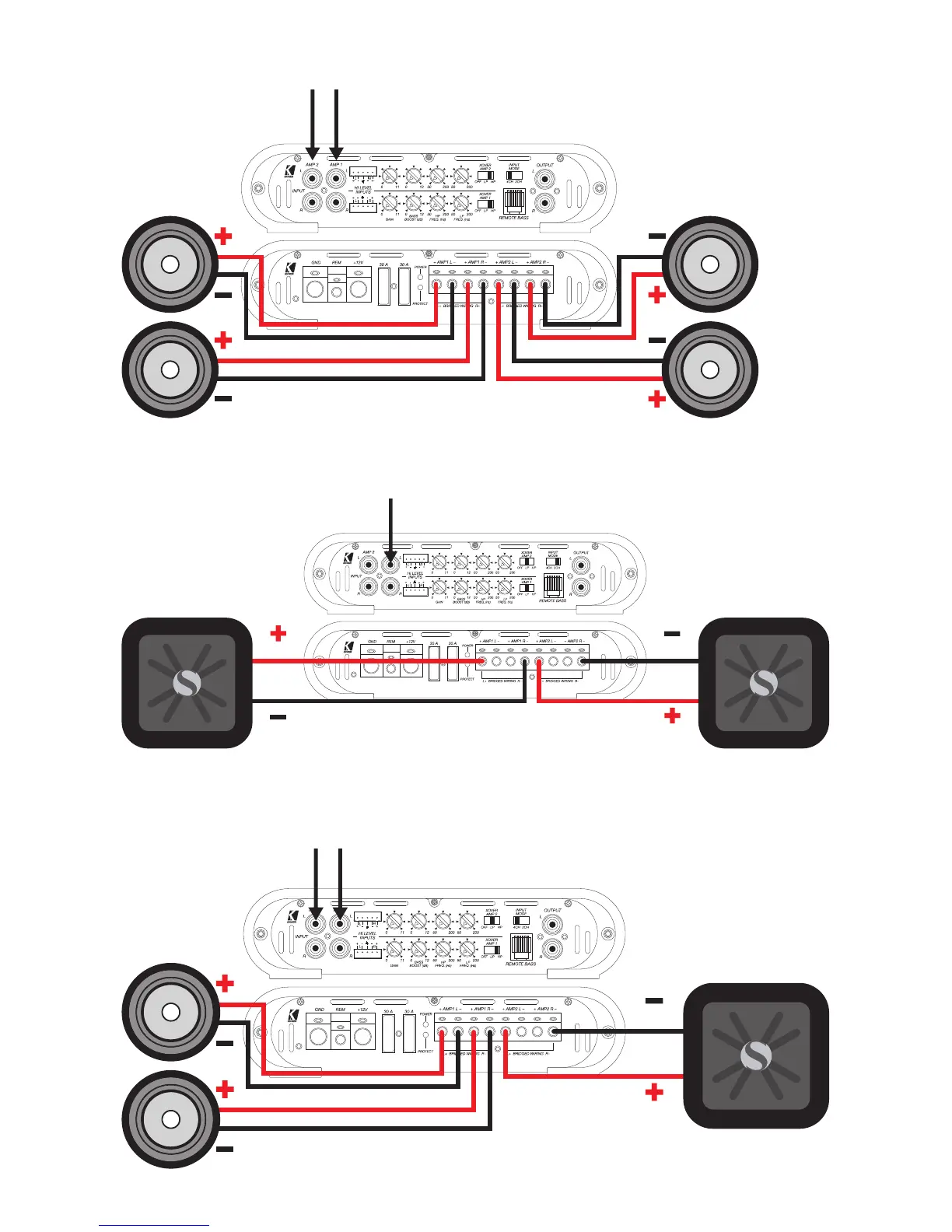

BRIDGED OPERATION (MONO)
minimum impedance of 4 ohms
signal in
woofer 2
FOUR CHANNEL OPERATION
minimum impedance of 2 ohms per channel
woofer 1
STEREO-AND-MONO-SIMULTANEOUSLY (SAMS) OPERATION
minimum impedance of 4 ohms bridged (mono) and 2 ohms per channel stereo
– AMP2 R
+ AMP2 L
woofer
signal insignal in
signal insignal in
