6
audio inputs
OPERATION
Automatic Turn-On Selection: The CX series offers two automatic turn-on modes; +12V and DC Offset.
• Remote Turn-On: Run 18 gauge wire from the Remote Turn-On Lead on your source unit to the terminal
labeled REM between the amplifi er’s positive and negative power terminals. This is the preferred automatic
turn-on method.
• DC Offset Turn-On: The DC Offset mode detects a 6V DC offset from the HI-Level speaker outputs when
the source unit has been turned on.
AMP1
AMP2

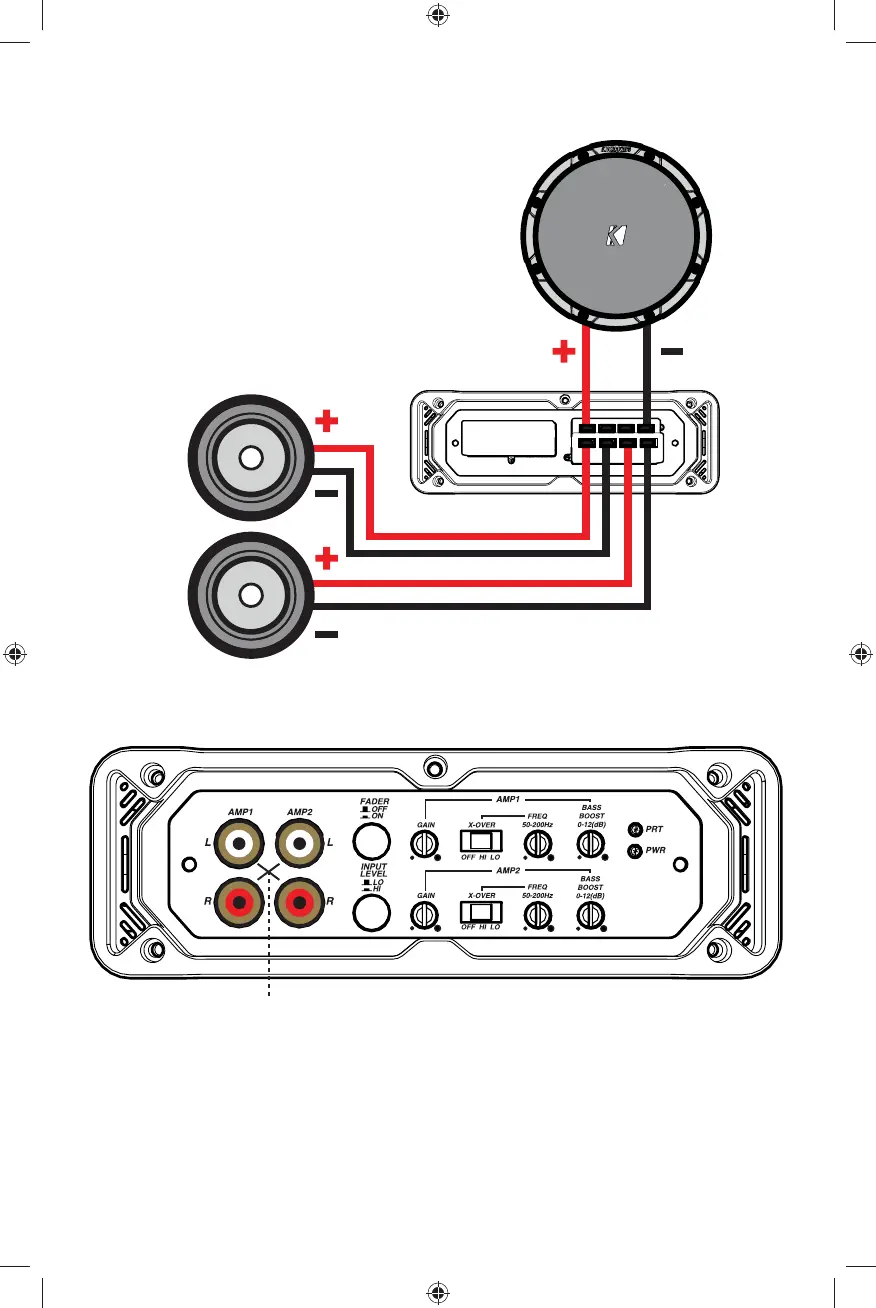

STEREO-AND-MONO-SIMULTANEOUSLY (SAMS) OPERATION
minimum impedance of 4 ohms bridged (mono) and 2 ohms per channel stereo
L
R
