The CX amplifi er has dual input sensitivity differential RCA inputs which will receive either high or low level signals
from your car stereo’s source unit. A high-level signal can be run from the source unit’s speaker outputs to the
stereo RCA input on the end panel of the amplifi er using the KICKER KISL as shown (make sure you set the CX
amplifi er’s input level switch to “HI”). Alternatively, the signal can be delivered to the amplifi er using the low-level
RCA outputs on the source unit. Keep the audio signal cable away from factory wiring harnesses and other
power wiring. If you need to cross this wiring, cross it at a 90 degree angle.
source unit
high-level speaker
outputs
to amplifi er
shield
+
–
core conductor

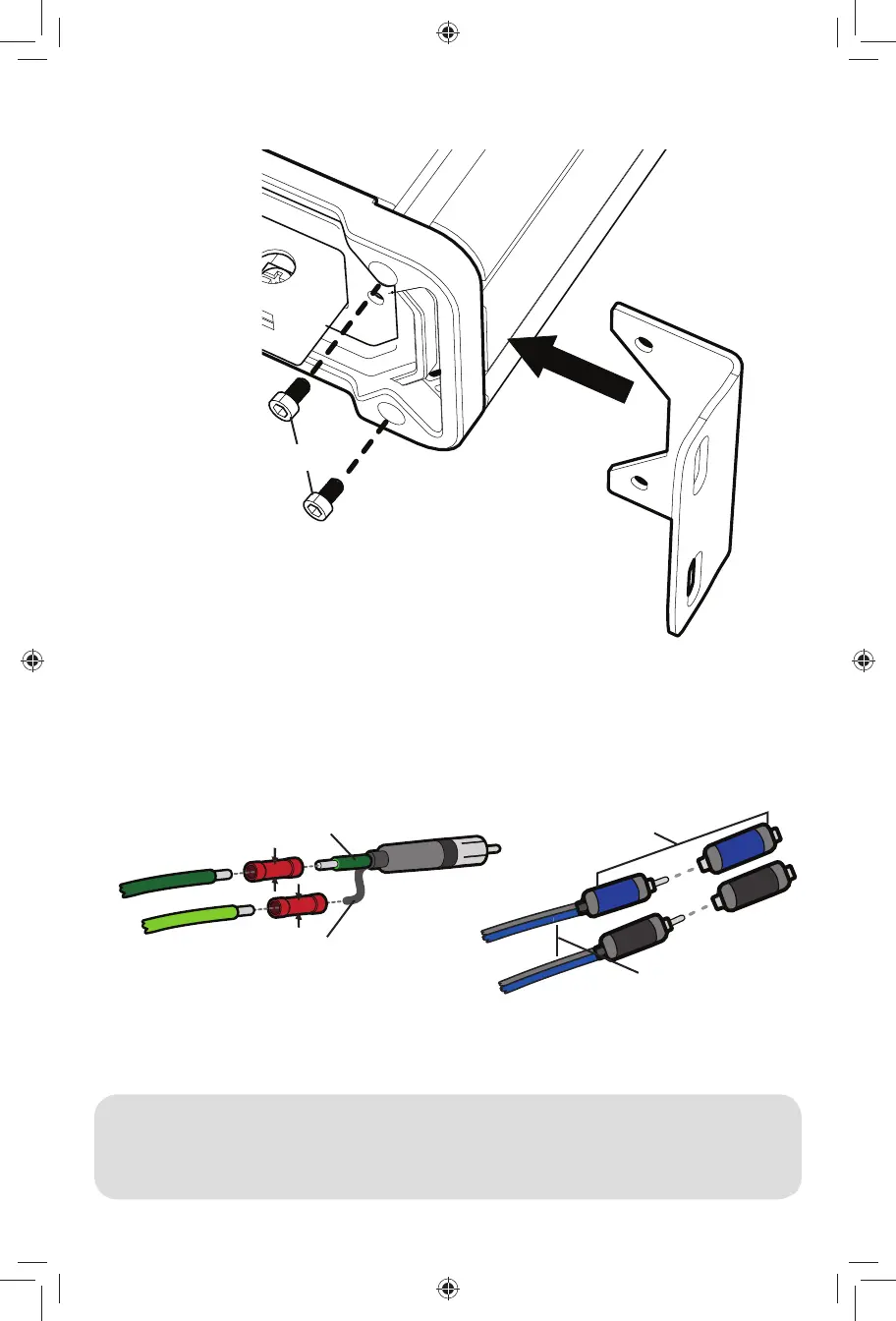

VERTICAL MOUNTING
Install a fuse within 18” (45cm) of the battery and in-line with the power cable connected to your amplifi er. If you
ever need to remove the amplifi er from the vehicle after it has been installed, the ground wire should be the last
wire disconnected from the amplifi er--just the opposite as when you installed it.
double-slotted
bracket
hex screws
amplifi er end panel
OR
KICKER KISL (optional)
from source unit high-
level speaker outputs
to amplifi er
Model External Fuse
(sold separately)
Power/Ground Wire KICKER Wiring Kit
CXA360.4 1 x 40 Ampere 8 Gauge PK8, CK8
