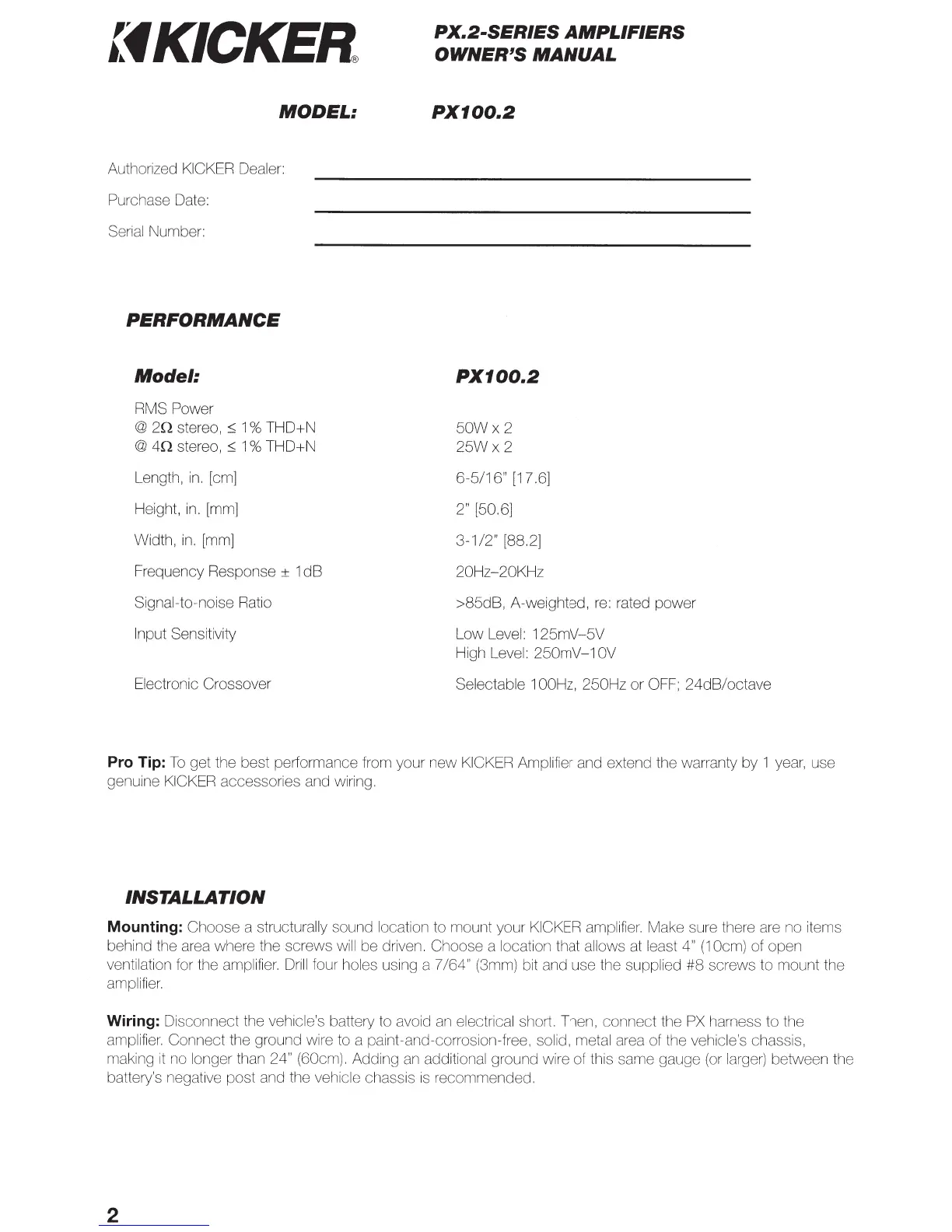

Kicker PX100.2 User Manual

lfKICKER
MODEL:
Authorized KICKER Dealer:
Purchase Date:
Serial Number:
PERFORMANCE
Model:
RMS Power
@ 2n stereo,~ 1% THD+N
@ 4Q stereo, ~ 1% THD+N
Length,
in. [em]
Height, in. [mm]
Width,
in. [mm]
Frequency Response
± 1 dB
Signal-to-noise Ratio
Input Sensitivity
Electronic Crossover
PX.2-SERIES AMPLIFIERS
OWNER'S MANUAL
PX100.2
PX100.2
50Wx2
25Wx2
6-5/16" [17.6]
2" [50.6]
3-1 /2" [88.2]
20Hz-20KHz
>85d8, A-weighted, re: rated power
Low Level: 1
25mV-5V
High Level: 250mV-1 OV
Selectable 1OOHz, 250Hz or OFF; 24dB/octave
Pro Tip: To get the best performance from your new KICKER Amplifier and extend the warranty by 1 year, use
genuine
KICKER accessories and wiring.
INSTALLATION
Mounting: Choose a structurally sound location to mount your KICKER amplifier. Make sure there are no items
behind the area where the screws
will be driven. Choose a location that allows at least 4" (1 Ocm) of open
ventilation for the amplifier.
Drill four holes using a 7 /64" (3mm) bit and use the supplied #8 screws to mount the
amplifier.
Wiring: Disconnect the vehicle's battery to avoid an electrical short. Then, connect the PX harness to the
amplifier. Connect the ground wire to a paint -and-corrosion-free, solid, metal area of the vehicle's chassis,
making
it no longer than 24" (60cm). Adding an additional ground wire of this same gauge (or larger) between the
battery's negative post and the vehicle chassis
is recommended.
2
