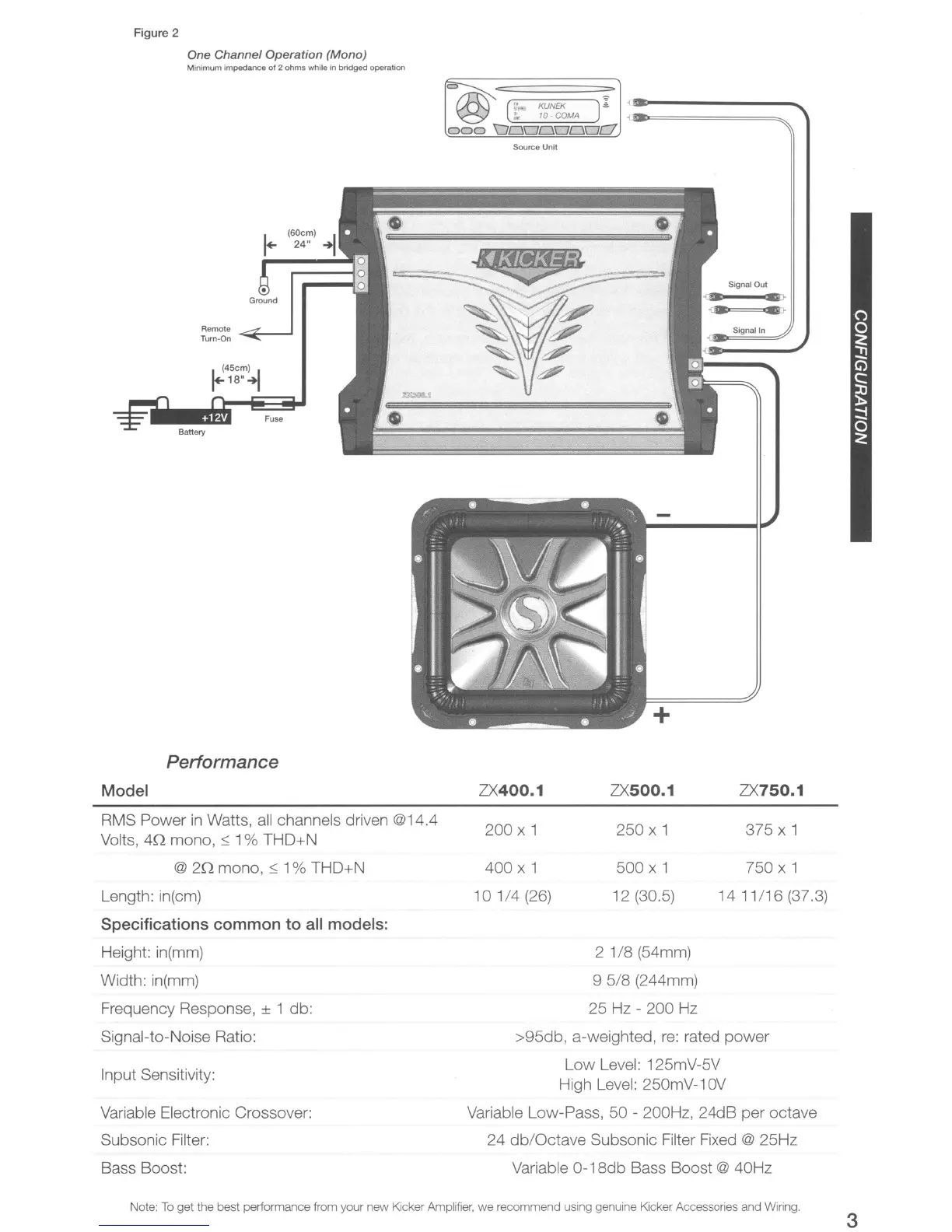

Figure 2
One
Channel
Operation
(Mono)
Minimum impedance
of
2 ohms while in bridged operation
Source Unit
+
Fuse
~45Cm)
I
.18"
-+
Performance
Model
ZX400.1
ZX500.1 ZX750.1
2 1/8 (54mm)
9 5/8 (244mm)
25
Hz
- 200 Hz
>95db, a-weighted,
re:
rated power
Low Level: 125mV-5V
High Level: 250mV-10V
Variable Low-Pass, 50 - 200Hz, 24dB per octave
24 db/Octave Subsonic Filter Fixed @25Hz
Variable 0-18db Bass Boost @40Hz
RMS Power
in
Watts,
all
channels driven @14.4
Volts,
4n
mono,
~
1% THD+N
@
2n
mono,
~
1% THD+N
Length: in(cm)
Specifications common to all models:
Height: in(mm)
Width: in(mm)
Frequency Response,
± 1 db:
Signal-to-Noise Ratio:
Input Sensitivity:
Variable Electronic Crossover:
Subsonic Filter:
Bass Boost:
200 x 1
400 x 1
10
1/4
(26)
250 x 1
500 x 1
12 (30.5)
375 x 1
750 x 1
14 11/1 6 (37.3)
Note:
To
get the best performance from your new Kicker Amplifier,
we
recommend using genuine Kicker Accessories and Wiring.
3
