SYSTEM DIAGRAMS
AMP 1 OUTPUT
AMP 2 OUTPUT
AMP 2
GAIN
AMP 1
GAIN
OUTPUT
RIGHT
LEFT
AMP 1
INPUT
AMP 2
INPUT
1R
+ 1R
-
1L + 1L
-
2L + 2L
-
2R + 2R
-
ZRX
BY-PASS
MODULE
+
–
+
–
+
+
–
–
RIGHT REAR
SPEAKER
LEFT REAR
SPEAKER
RIGHT FRONT
SPEAKER
LEFT FRONT
SPEAKER
SOURCE
Full Range Speakers
(1Ω Minimum)
Full Range Speakers
(1Ω Minimum)
*
INTERNAL
CROSSOVER
BYPASSED
AMP 1 OUTPUT
AMP 2 OUTPUT
AMP 2
GAIN
AMP 1
GAIN
OUTPUT
RIGHT
LEFT
AMP 1
INPUT
AMP 2
INPUT
1R
+ 1R
-
1L + 1L
-
2L + 2L
-
2R + 2R
-
ZRX
BY-PASS
MODULE
+
–
+
–
+
+
–
–
RIGHT REAR
SPEAKER
LEFT REAR
SPEAKER
RIGHT FRONT
SPEAKER
FRONT
REAR
LEFT FRONT
SPEAKER
SOURCE
Full Range Speakers
(1Ω Minimum)
Full Range Speakers
(1Ω Minimum)
*
INTERNAL
CROSSOVER
BYPASSED

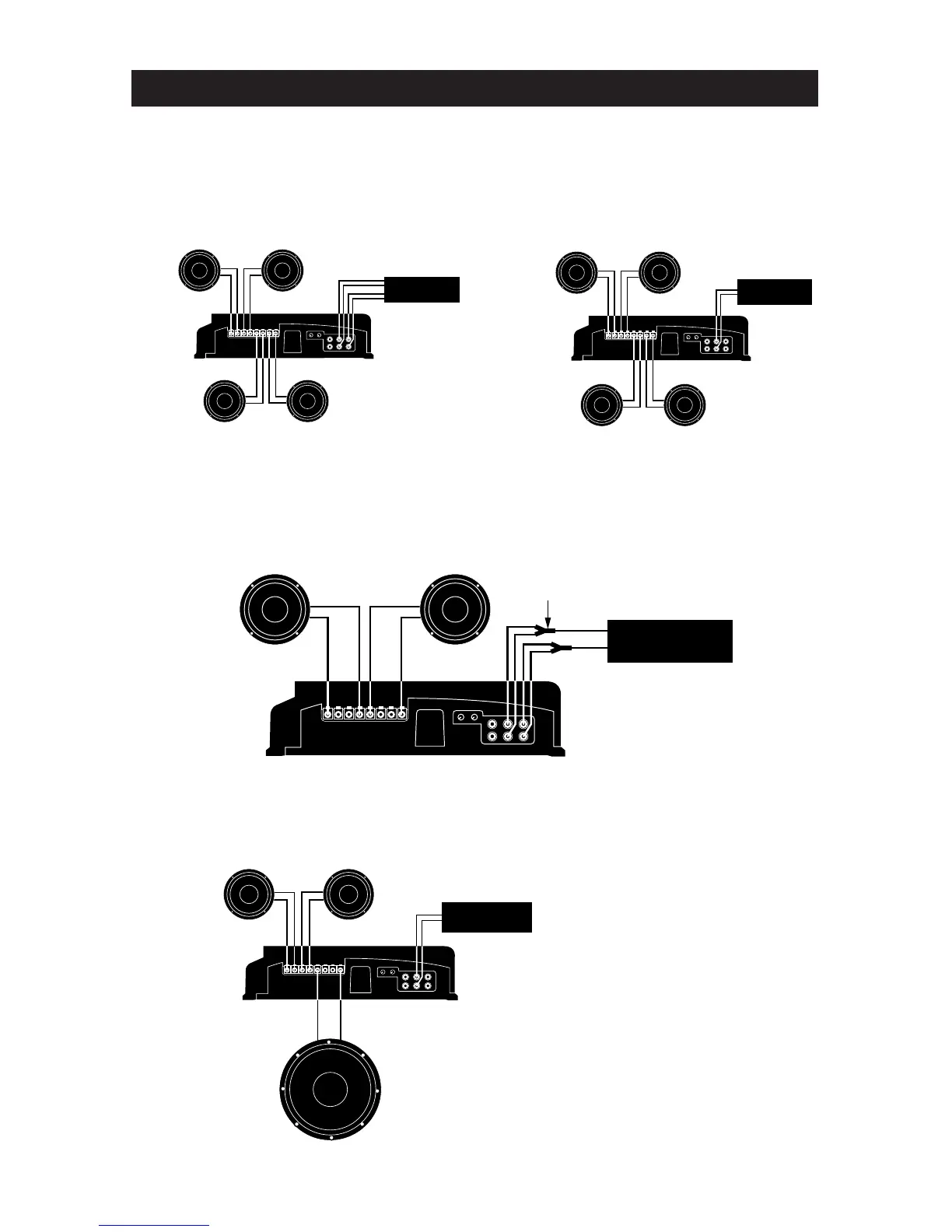

FOUR CHANNEL USING TWO INPUTS
NOTE: When only two RCA's are plugged
in then all four channels automatically
derive their signal from those two inputs.
FOUR CHANNEL USING FOUR INPUTS
NOTE: When four RCA's are plugged
in then the amplifier works with
four discreet channels.
BRIDGED TWO CHANNEL OPERATION STEREO
CAUTION: Up to 180W available to each channel's speaker load. The L+R inputs
for each channel will have the same information.
Example: Amp 1 L+R input get "Left" signal, Amp 2 L+R input get "Right" signal.
BI AMP USING ZRX MODULE
AMP 1 OUTPUT
AMP 2 OUTPUT
AMP 2
GAIN
AMP 1
GAIN
OUTPUT
RIGHT
LEFT
AMP 1
INPUT
AMP 2
INPUT
1R
+ 1R
-
1L + 1L
-
2L + 2L
-
2R + 2R
-
ZRX
BY-PASS
MODULE
+
–
+
–
RIGHT
RIGHT
"Y" Cables
LEFT
LEFT
SOURCE
Full Range Speakers
(2Ω Minimum)
*
INTERNAL
CROSSOVER
BYPASSED
AMP 1 OUTPUT
AMP 2 OUTPUT
AMP 2
GAIN
AMP 1
GAIN
OUTPUT
RIGHT
LEFT
AMP 1
INPUT
AMP 2
INPUT
1R
+ 1R
-
1L + 1L
-
2L + 2L
-
2R + 2R
-
ZRX
LOWPASS
MODULE
*
INTERNAL
CROSSOVER
HIGHPASS
+
–
+
–
+
–
RIGHT FRONT
SPEAKER
LEFT FRONT
SPEAKER
SOURCE
KICKER Subwoofer
(2Ω Minimum)
Mid/High Range Speakers
(1Ω Minimum)
