Chapter 4 DESCRIPTION OF FRONT AND REAR PANEL ITEMS
4-26
4.3 Description of Rear Panel Items
3840 37
39
35 36

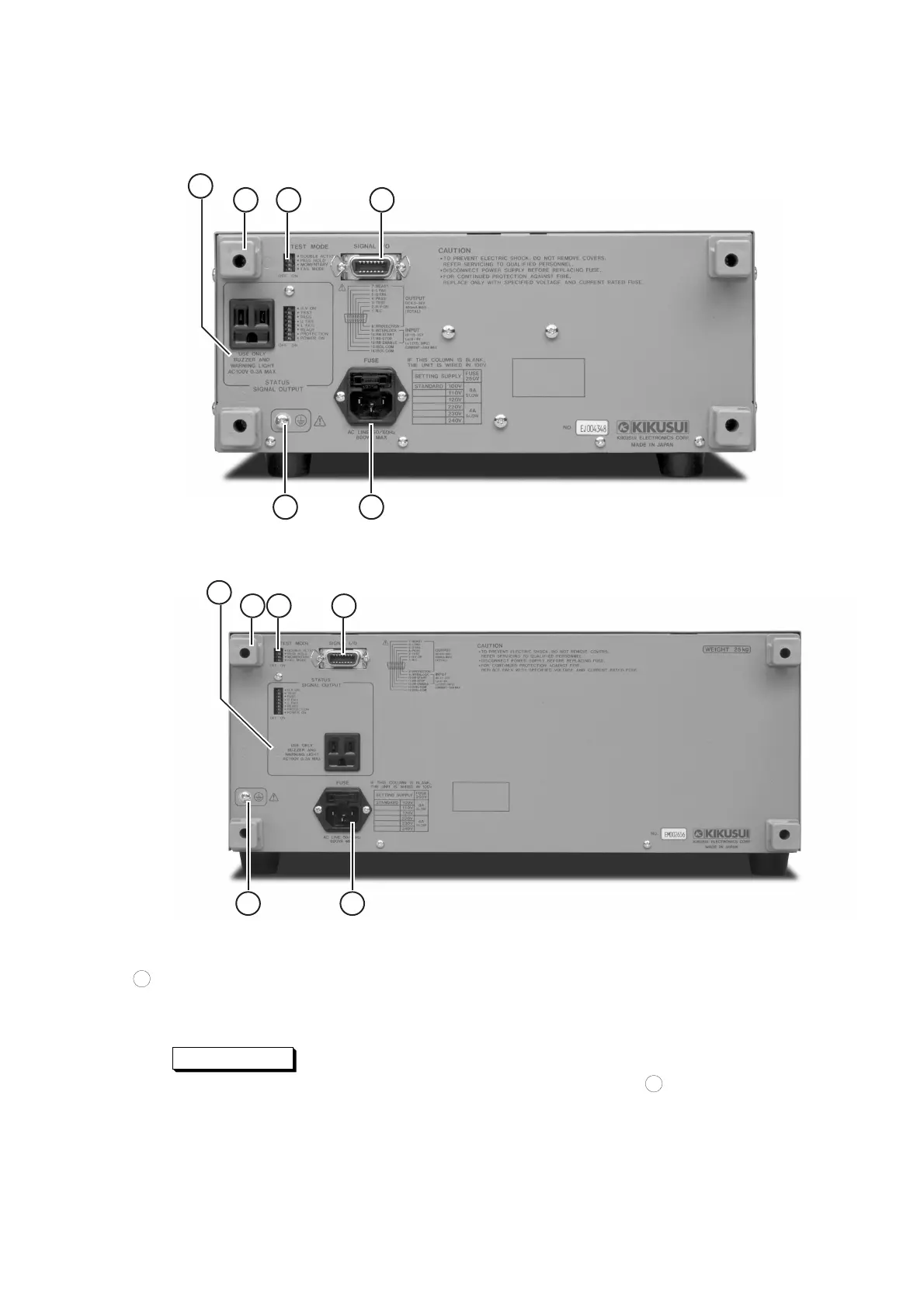

Figure 4.5 TOS5050/TOS5051 Rear Panel
38
40
37
39
35
36
Figure 4.6 TOS 5101 Rear Panel
3
5
Protective Grounding Terminal
This terminal is for grounding the Tester to an earth ground.
WARNING
• Be sure to connect securely (by using a screwdriver) an earth ground
line to the Protective grounding terminal
3
5
. Unless the Tester is
securely grounded, when the Tester chassis can be charged up to the
high voltage than can cause electric shock hazard. For details, refer
to Section 3.1.2 “Grounding the Tester.”
