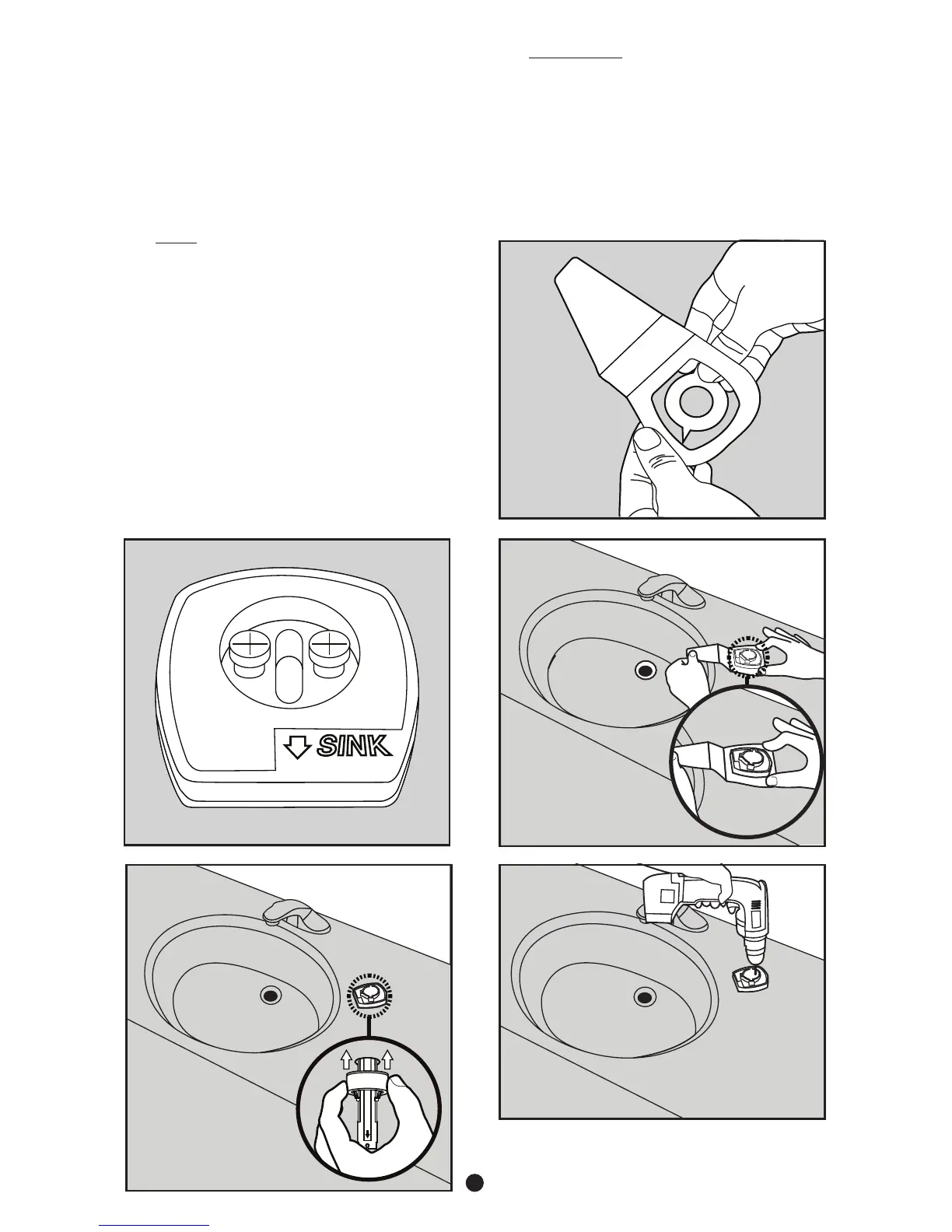

7. Rotate the support shaft so the arrow
points toward the sink (see gure 6).
8. Remove the adhesive liner from the
plastic support ring and from the
underside of the countertop, slide it
thru the support shaft and push it until
up until it sticks to the underside of the
countertop (see gure 7).
Note: If the support ring will not sit flush
with the underside of the countertop
due to interference with the sink, use
the optional split support ring provided
instead.
9. Break away the center portion of the
plastic template and discard the piece
removed (see gure 8).
10. Place the plastic template over the
support shaft. Rotate the support shaft
until the exact location of the soap
discharge head is reached. Remove the
template and discard (see gure 9).
11. IMPORTANT – Using a Phillips bit in a
power driver, tighten at full speed the
2 screws on the support shaft until the
plastic heads
break away
. Remove the
remains of the white plastic heads from
the support shaft (see gure 10).
Fig. 9
Fig. 7
Fig. 8
Fig. 6
Fig. 10
