5

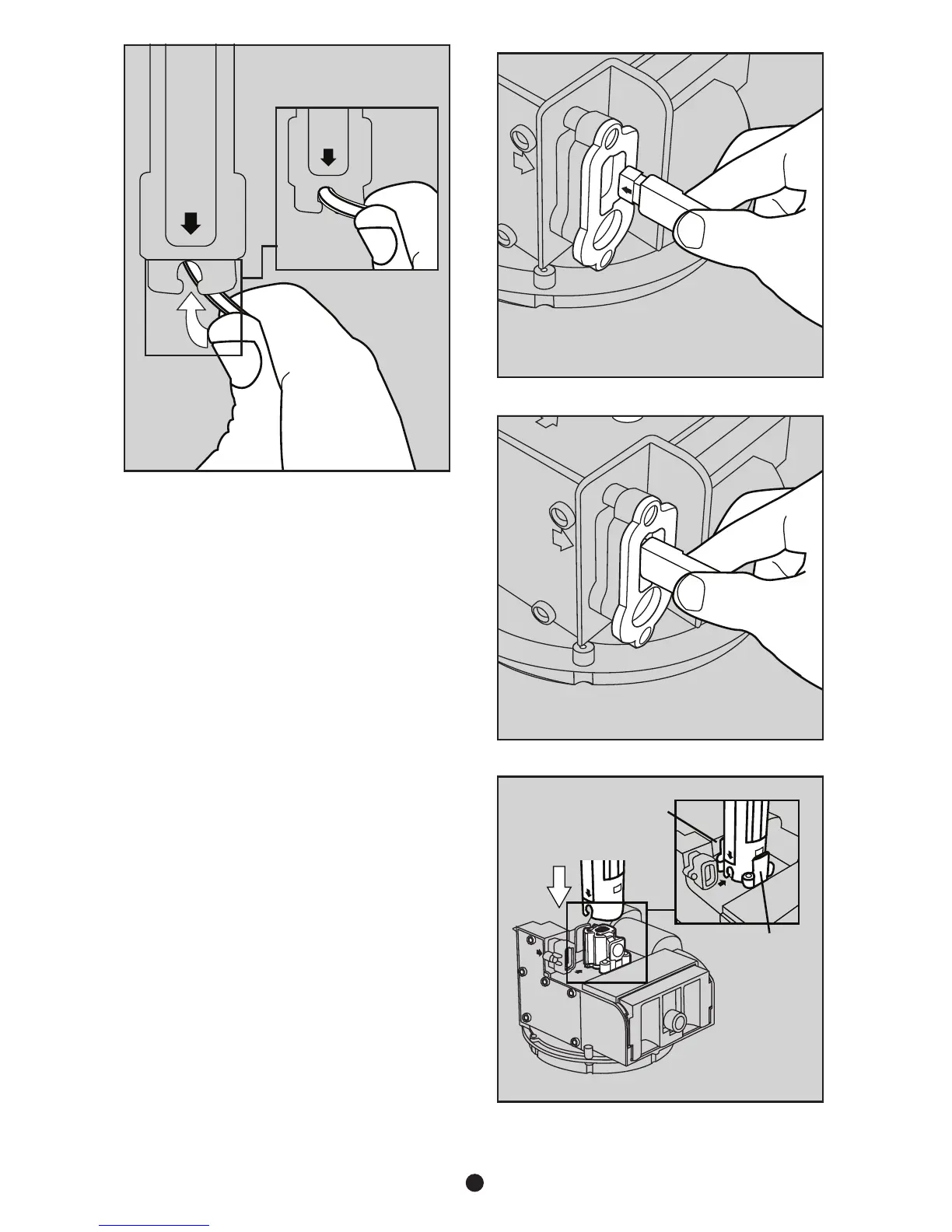

18. Position the clear tube on the signal
cable into the notch on the bottom of the
support shaft (see gure 17).
19. Remove the protective cap on the signal
cable plug. Align the yellow arrow on the
signal cable plug with the yellow arrow
on the motor module receptacle (see
gure 18).
20. Push the signal cable plug into the motor
module receptacle. The connection is
secured when the yellow arrow on the
signal cable plug is no longer visible
(see gure 19).
21. Align the orange arrow on the motor
module with the orange arrow on the
support shaft. Push the motor module
up until BOTH snaps lock into place
(see gure 20).
Fig. 17
Snap 1
Snap 2
Fig. 20
Fig. 18
Fig. 19
