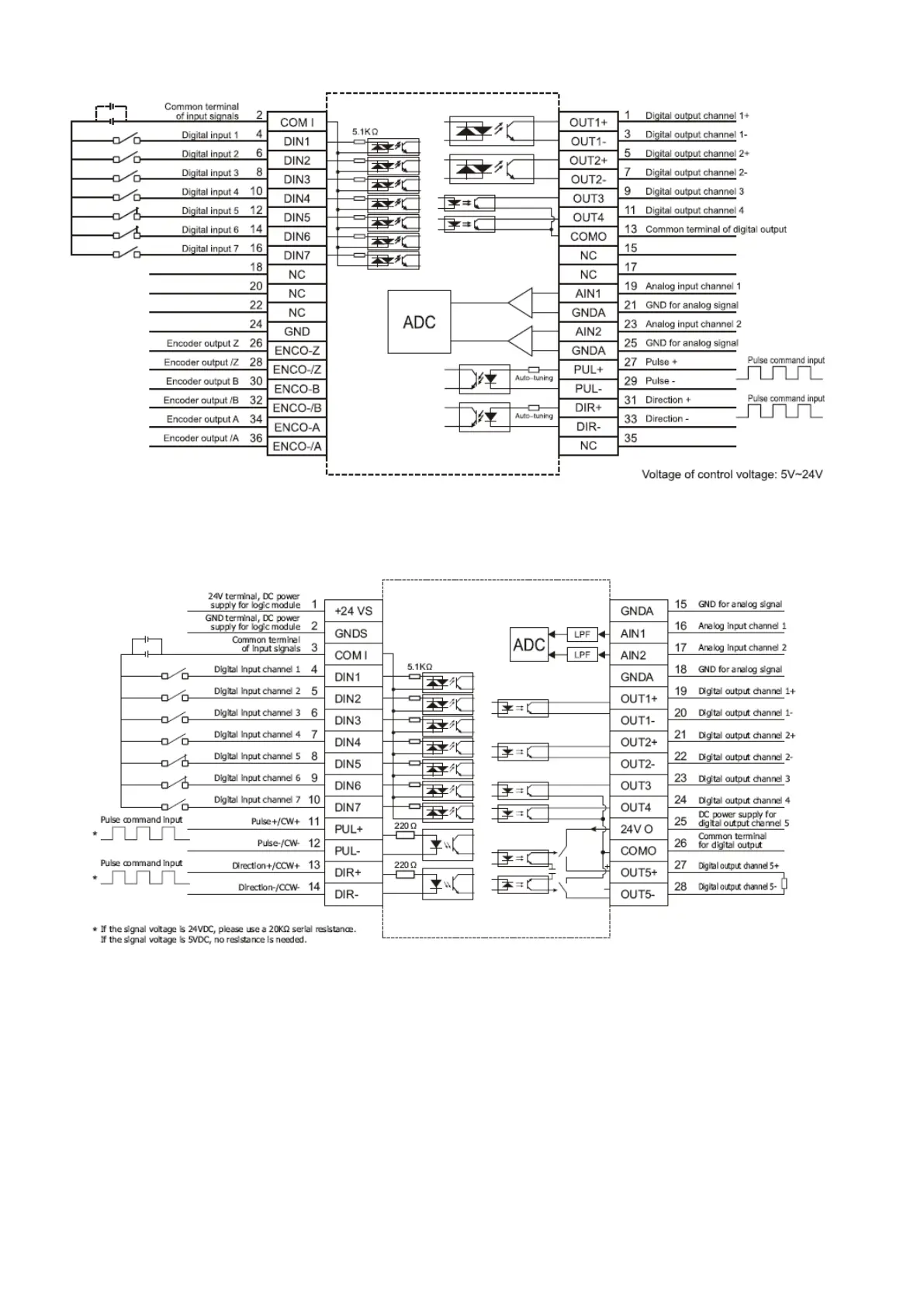

Fig. 7-1 Wiring diagram of CD2 driver in pulse control mode

2.Wiring diagram of CD driver in pulse control mode

Fig. 7-2 Wiring diagram of CD driver in pulse control mode

3.Common anode connection (to controllers that support valid low level output)
