Kinco FV100 Series User Manual

Chapter 5 Operation Instructions of Kinco VFD
51
Chapter 5 Operation Instructions of Kinco VFD
5.1 Using Operation Panel
5.1.1Operation panel appearance and keys’ function description

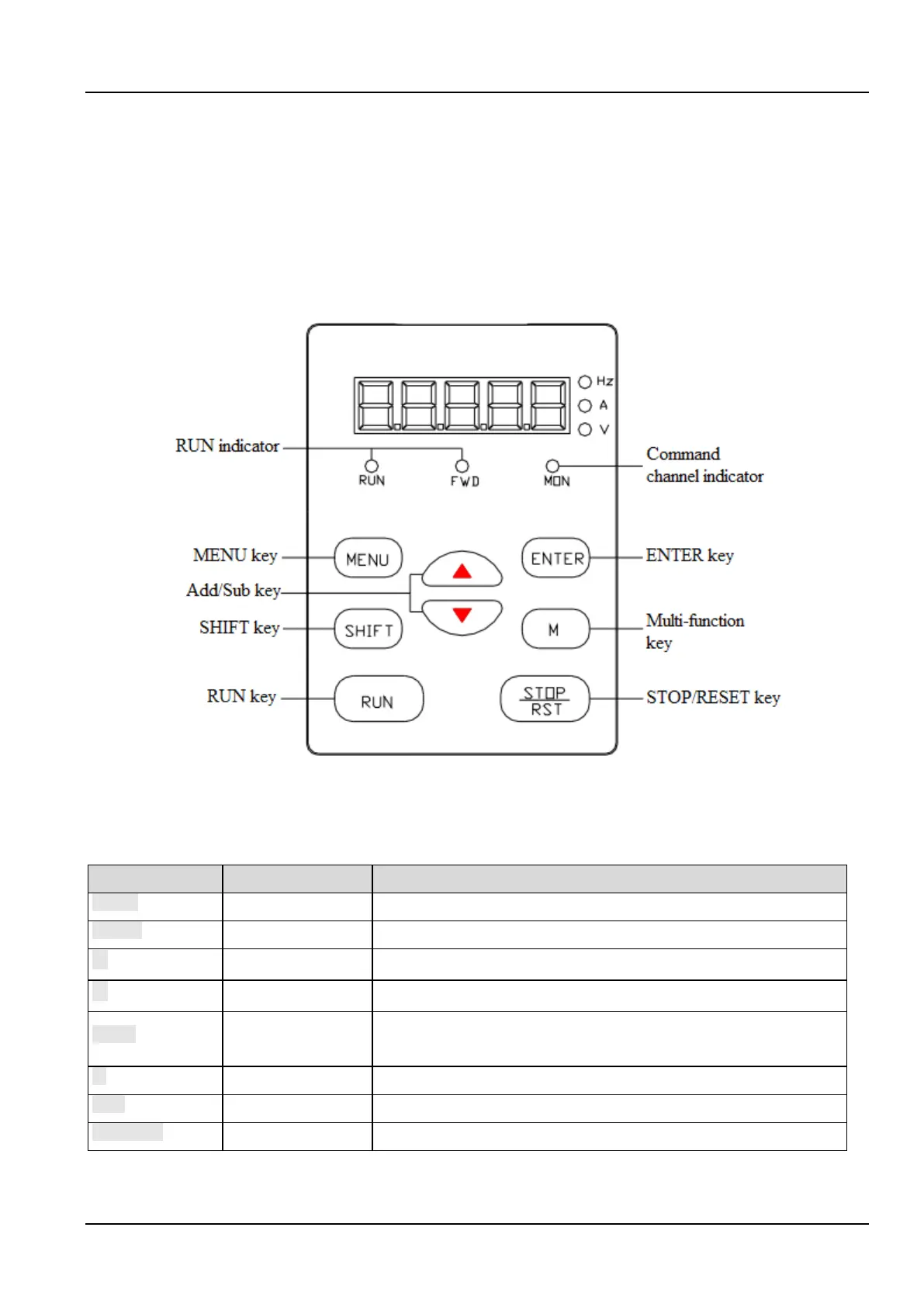

Operation panel is used to setup the drive and display parameters, it is LED display. As shown in Fig.5-1
Fig.5-1 Illustration of operation panel
There are 8 keys on the operation panel and functions of each key are shown in Table 5-1.
Table 5-1 Function list of operation panel
Key
Name
Function
MENU
Program/exit key
Enter or exit programming status
ENTER
Function/data key
Enter next level menu or confirm data
∧
Increase key
Increase data or parameter
∨
Decrease key
Decrease data or parameter
SHIFT
Shift key
In editing status, press this key to select the Bit to be modified. In other
status, this key is used to switch the parameters to display.
M
Multi-function key
Use the b4.01 to configure the function of this key
RUN
Run key
In panel control mode, press this key to run the drive.
STOP/RST
Stop/reset key
Press this key to stop or reset the drive.
